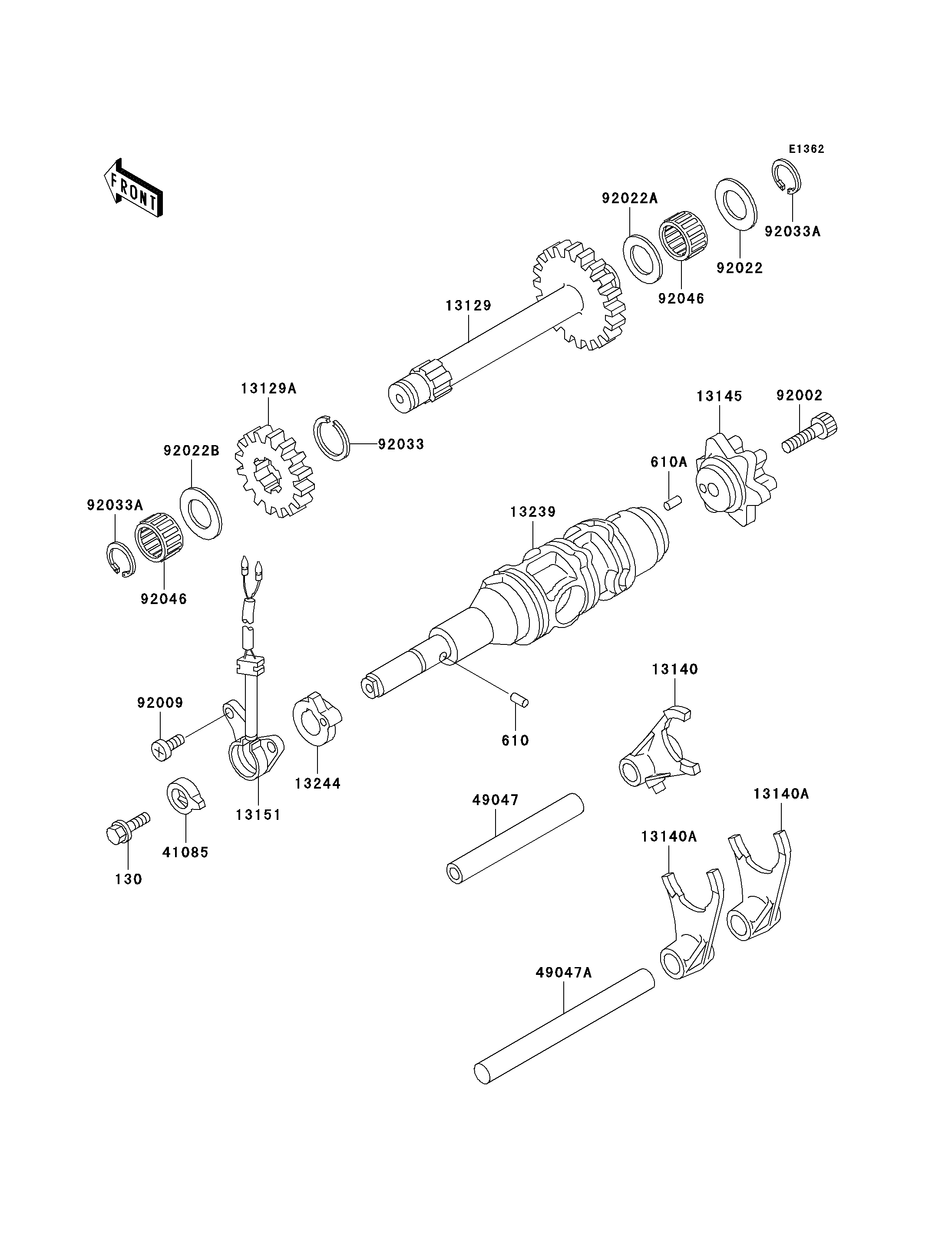

2003 Mojave 250 - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
130
610
610A
13129
13129A
13140
13140A
13140A
13145
13151
13239
13244
41085
49047
49047A
92002
92009
92022
92022A
92022B
92033
92033A
92033A
92046
92046
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130C0510 1
ROLLER,4X6 610 610A0406 1
ROLLER,4X10 610A 610A0410 1
GEAR-REVERSE,SHAFT 13129 13129-1806 1
GEAR-REVERSE,18T 13129A 13129-1807 1
FORK-SHIFT 13140 13140-1134 1
FORK-SHIFT 13140A 13140-1135 2
CAM-CHANGE DRUM 13145 13145-1061 1
SWITCH-COMP 13151 13151-1074 1
DRUM-ASSY-CHANGE 13239 13239-1161 1
STOPPER-ASSY,RELERSE 13244 13244-1056 1
INDICATOR,CHANGE DRUM 41085 41085-1004 1
ROD-SHIFT,L=93.7 49047 49047-1003 1
ROD-SHIFT 49047A 49047-1062 1
BOLT,SOCKET,6X25 92002 92002-1696 1
SCREW,5X14 92009 92009-1341 2
WASHER,17.3X22X0.5 92022 92022-1799 1
WASHER,17.3X30X0.5 92022A 92022-1805 1
WASHER,17.3X28X1 92022B 92022-255 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP 92033A 92033-032 2
BEARING-NEEDLE,K17X23X13.8X 92046 92046-1059 2
