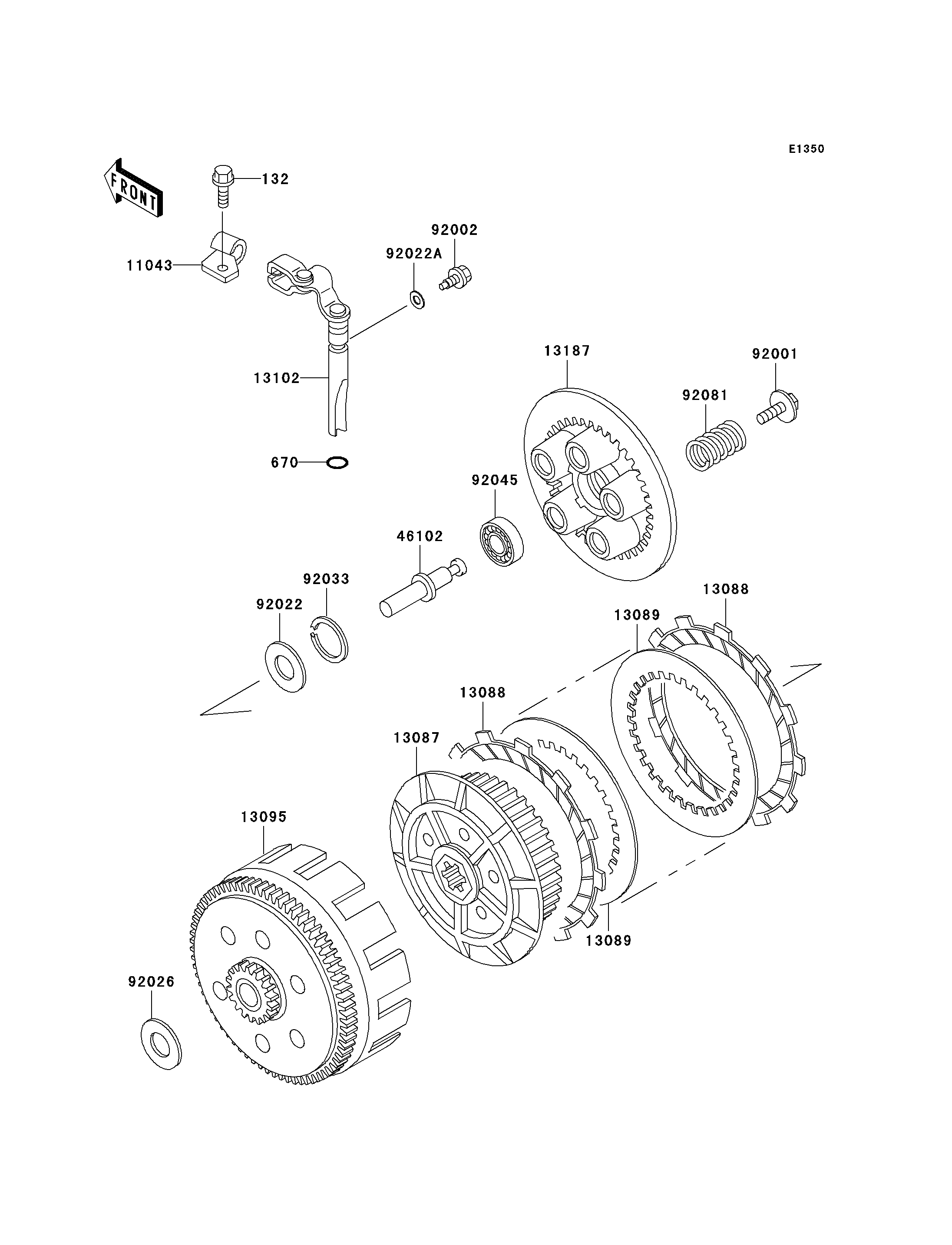

Parts Diagrams |
132
670
11043
13087
13088
13088
13089
13089
13095
13102
13187
46102
92001
92002
92022
92022A
92026
92033
92045
92081
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132J0612 | 1 | ||
| O RING,9MM | 670 | 670B1509 | 1 | ||
| BRACKET,CLUTCH CABLE | 11043 | 11043-1931 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1001 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1057 | 7 | ||
| PLATE-CLUTCH,T=1.6 | 13089 | 13089-013 | 6 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1148 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1064 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1008 | 1 | ||
| ROD,CLUTCH PUSH | 46102 | 46102-1033 | 1 | ||
| BOLT,CLUTCH SPRING,6X18 | 92001 | 92001-1576 | 5 | ||
| BOLT,6MM | 92002 | 92002-1356 | 1 | ||
| WASHER,20.5X30X1,STEEL | 92022 | 92022-112 | 1 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
| SPACER,20.1X30X4 | 92026 | 92026-1274 | 1 | ||
| RING-SNAP,18MM | 92033 | 92033-029 | 1 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-083 | 5 |
