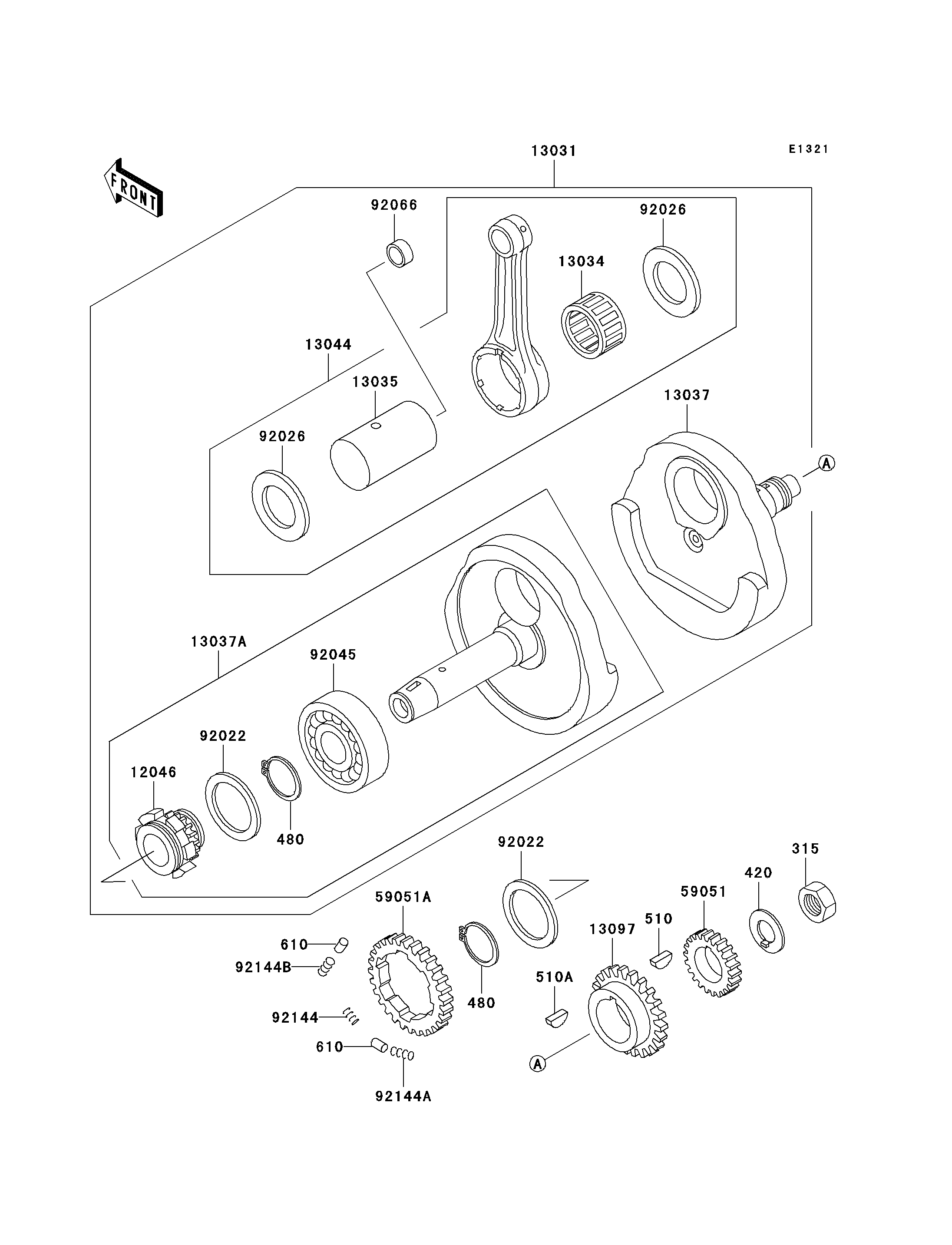

2003 Mojave 250 - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
315
420
480
480
510
510A
610
610
12046
13031
13034
13035
13037
13037A
13044
13097
59051
59051A
92022
92022
92026
92026
92045
92066
92144
92144A
92144B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-FINE,16MM 315 315B1600 1
WASHER-CLAW,16MM 420 420B1611 1
CIRCLIP 480 480J4000 2
KEY-WOODRUFF 510 510A3100 1
KEY-WOODRUFF 510A 510A5100 1
ROLLER 610 610A0510 6
SPROCKET,CAM,21T 12046 12046-1086 1
CRANKSHAFT-COMP 13031 13031-1280 1
BEARING-BIG END 13034 13034-1085 1
PIN-CRANK 13035 13035-1069 1
CRANKSHAFT,RH 13037 13037-1284 1
CRANKSHAFT,LH 13037A 13037-5070 1
SET-CONNECTING ROD 13044 13044-5075 1
GEAR-PRIMARY SPUR,20T 13097 13097-1170 1
GEAR-SPUR,OIL PUMP,18T 59051 59051-1122 1
GEAR-SPUR,BALANCER,39T 59051A 59051-1169 1
WASHER,40.5X60X1.6 92022 92022-1798 2
SPACER,32.2X51.5X1.2 92026 92026-1348 2
BEARING-BALL 92045 92045-1172 1
PLUG,TENSIONER 92066 92066-1249 1
SPRING,BALANCER OUTSIDE 92144 92144-1091 1
SPRING,BALANCER,INSIDE 92144A 92144-1092 1
SPRING,BALANCER GEAR 92144B 92144-1248 5
