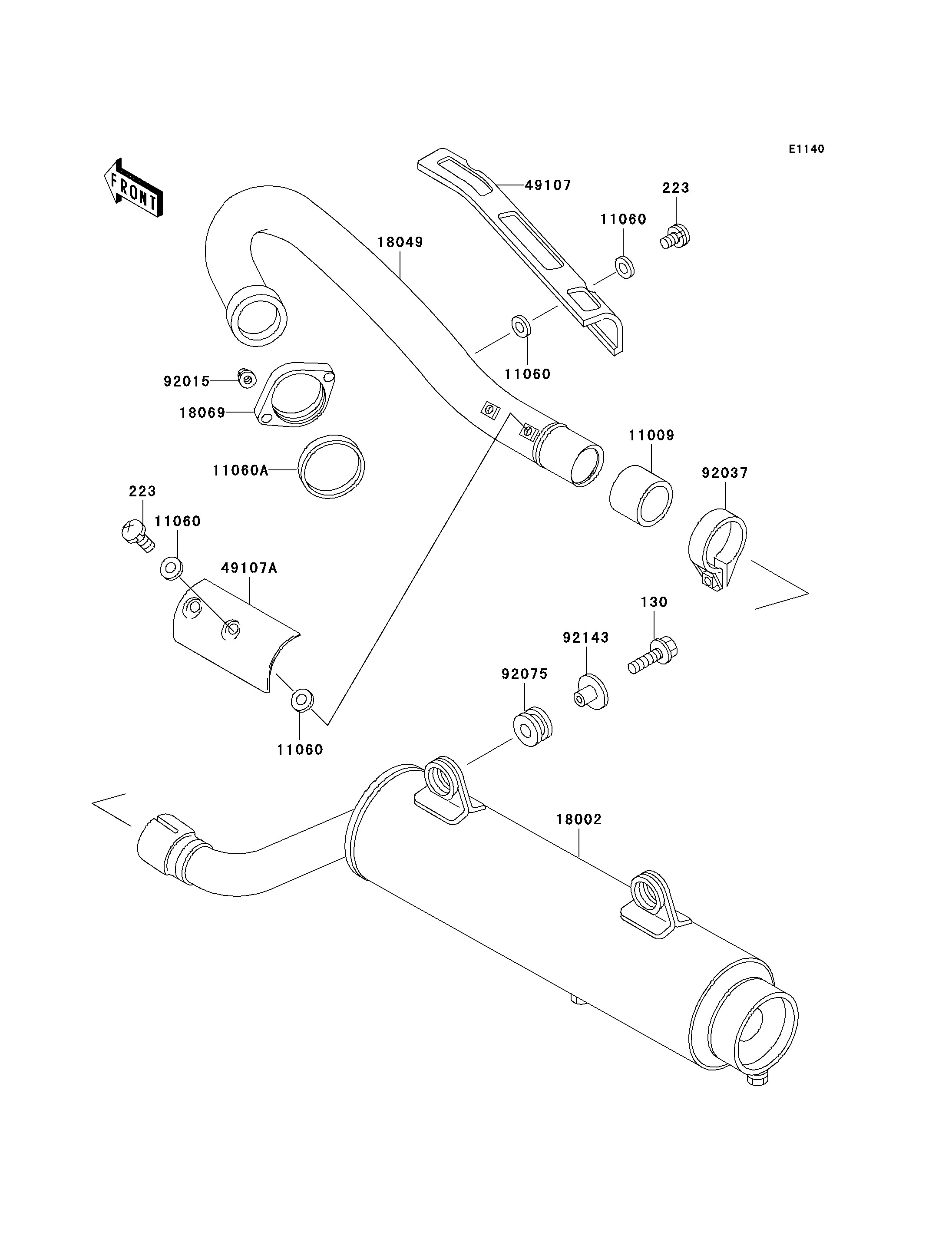

Parts Diagrams |
130
223
223
11009
11060
11060
11060
11060
11060A
18002
18049
18069
49107
49107A
92015
92037
92075
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X30 | 130 | 130J0830 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0610 | 4 | ||
| GASKET,EXHAUST PIPE CONNECTING | 11009 | 11009-1667 | 1 | ||
| GASKET,6.2X11.5X1.5 | 11060 | 11060-1109 | 8 | ||
| GASKET,EXHAUST PIPE | 11060A | 11060-1126 | 1 | ||
| BODY-COMP-MUFFLER | 18002 | 18002-1678 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-1381 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1058 | 1 | ||
| COVER-EXHAUST PIPE,FR | 49107 | 49107-1071 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107A | 49107-1072 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 2 | ||
| CLAMP,42MM | 92037 | 92037-1349 | 1 | ||
| DAMPER | 92075 | 92075-013 | 2 | ||
| COLLAR | 92143 | 92143-1946 | 2 |
