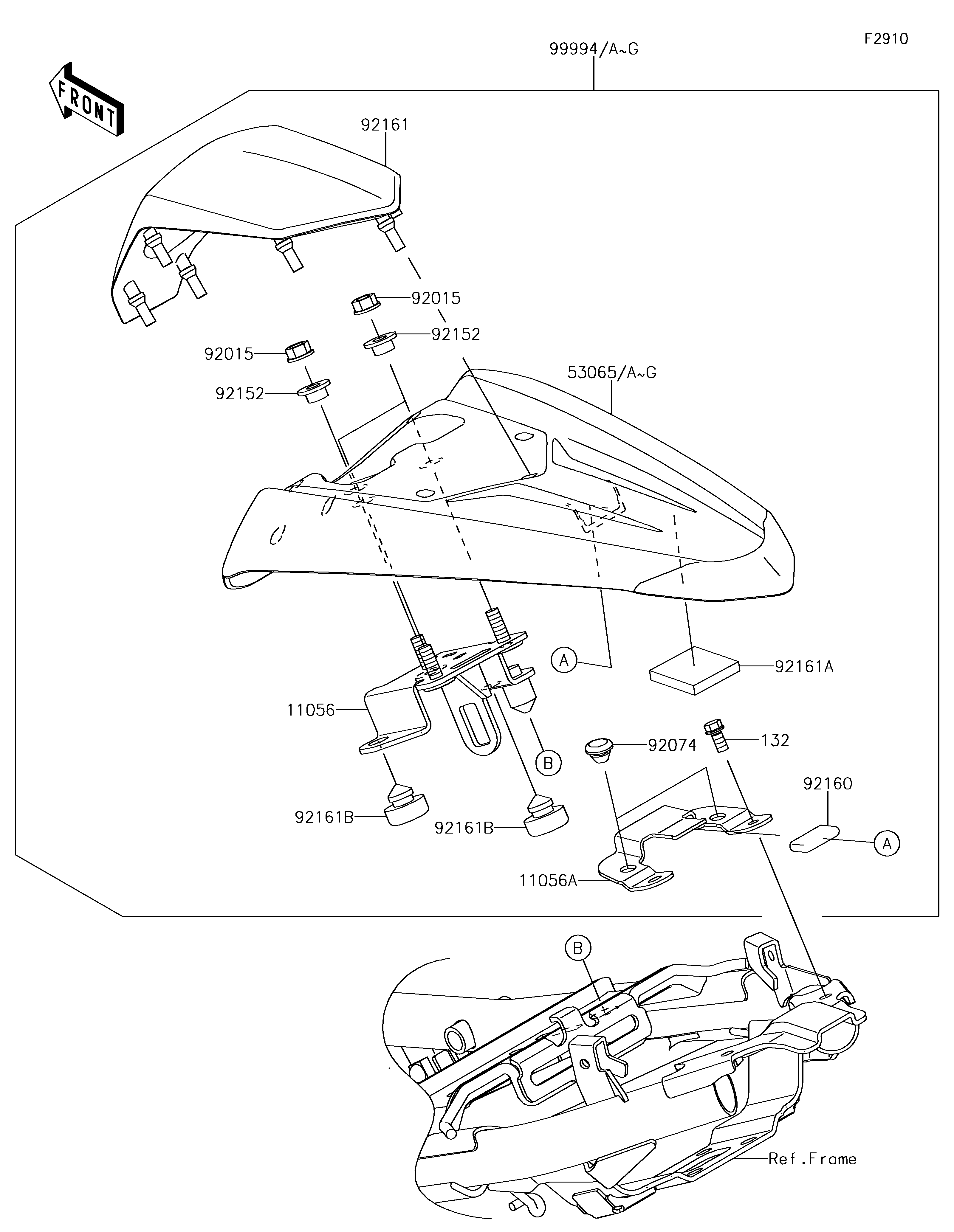

2017 Z250SL ABS - Accessory

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
132
53065B
53065D
92015
92015
92074
92152
92152
92160
92161
92161A
92161B
92161B
99994B
99994D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2560 1
BRACKET 11056A 11056-2771 1
BOLT-FLANGED-SMALL,5X10 132 132BA0510 2
COVER SEAT,C.S.RED 53065B 53065-0025-34T 1
COVER SEAT,M.G.GRAY 53065D 53065-0025-45W 1
NUT,FLANGED,6MM 92015 92015-1367 3
PLUG,7X2 92074 92074-028 2
COLLAR,6.8X10(16)X6.6 92152 92152-0842 3
DAMPER 92160 92160-1190 1
DAMPER,CUSHION 92161 92161-1569 1
DAMPER 92161A 92161-1591 1
DAMPER,10X20X8 92161B 92161-1609 2
KIT,SINGLE SEAT,C.S.RED 99994B 99994-0403-34T 1
KIT,SINGLE SEAT,M.G.GRAY 99994D 99994-0403-45W 1
