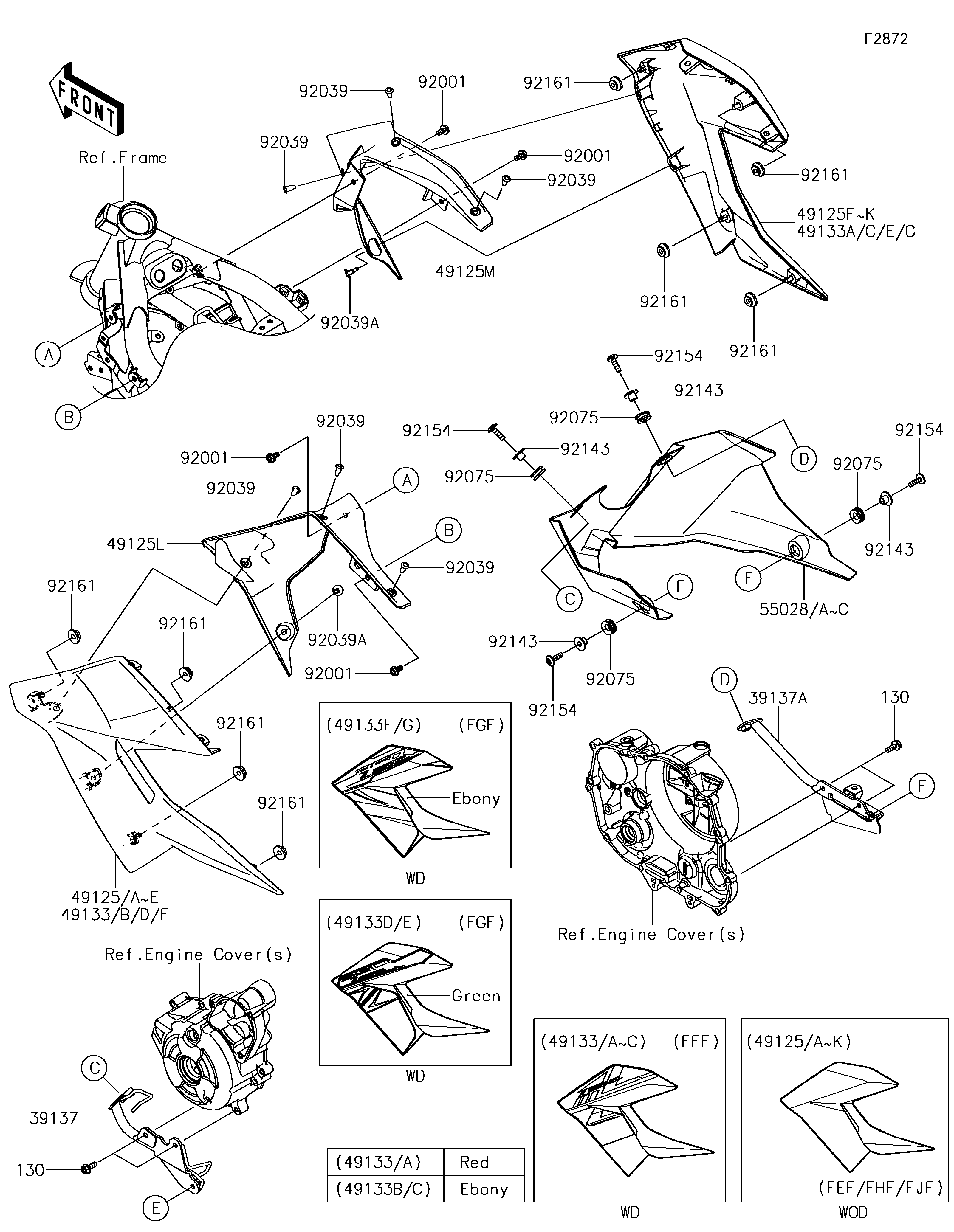

2017 Z250SL ABS - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
130
130
39137
39137A
49125A
49125C
49125G
49125I
49125L
49125M
55028C
92001
92001
92001
92001
92039
92039
92039
92039
92039
92039
92039A
92039A
92075
92075
92075
92075
92143
92143
92143
92143
92154
92154
92154
92154
92161
92161
92161
92161
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 4
STAY-COMP,LWR COWL.,LH 39137 39137-0585 1
STAY-COMP,LWR COWL.,RH 39137A 39137-0586 1
SHROUD,OUTER,LH,C.S.RED 49125A 49125-0578-34T 1
SHROUD,OUTER,LH,M.G.GRAY 49125C 49125-0578-45W 1
SHROUD,OUTER,RH,C.S.RED 49125G 49125-0579-34T 1
SHROUD,OUTER,RH,M.G.GRAY 49125I 49125-0579-45W 1
SHROUD,INNER,LH 49125L 49125-0580 1
SHROUD,INNER,RH 49125M 49125-0581 1
COWLING,LWR,EBONY 55028C 55028-0500-H8 1
BOLT,W/WASHER,6X12 92001 92001-1516 4
RIVET 92039 92039-0060 6
RIVET 92039A 92039-0062 2
DAMPER 92075 92075-1634 4
COLLAR,L=9.6 92143 92143-1016 4
BOLT,SOCKET,6X20 92154 92154-0918 4
DAMPER 92161 92161-1531 8
