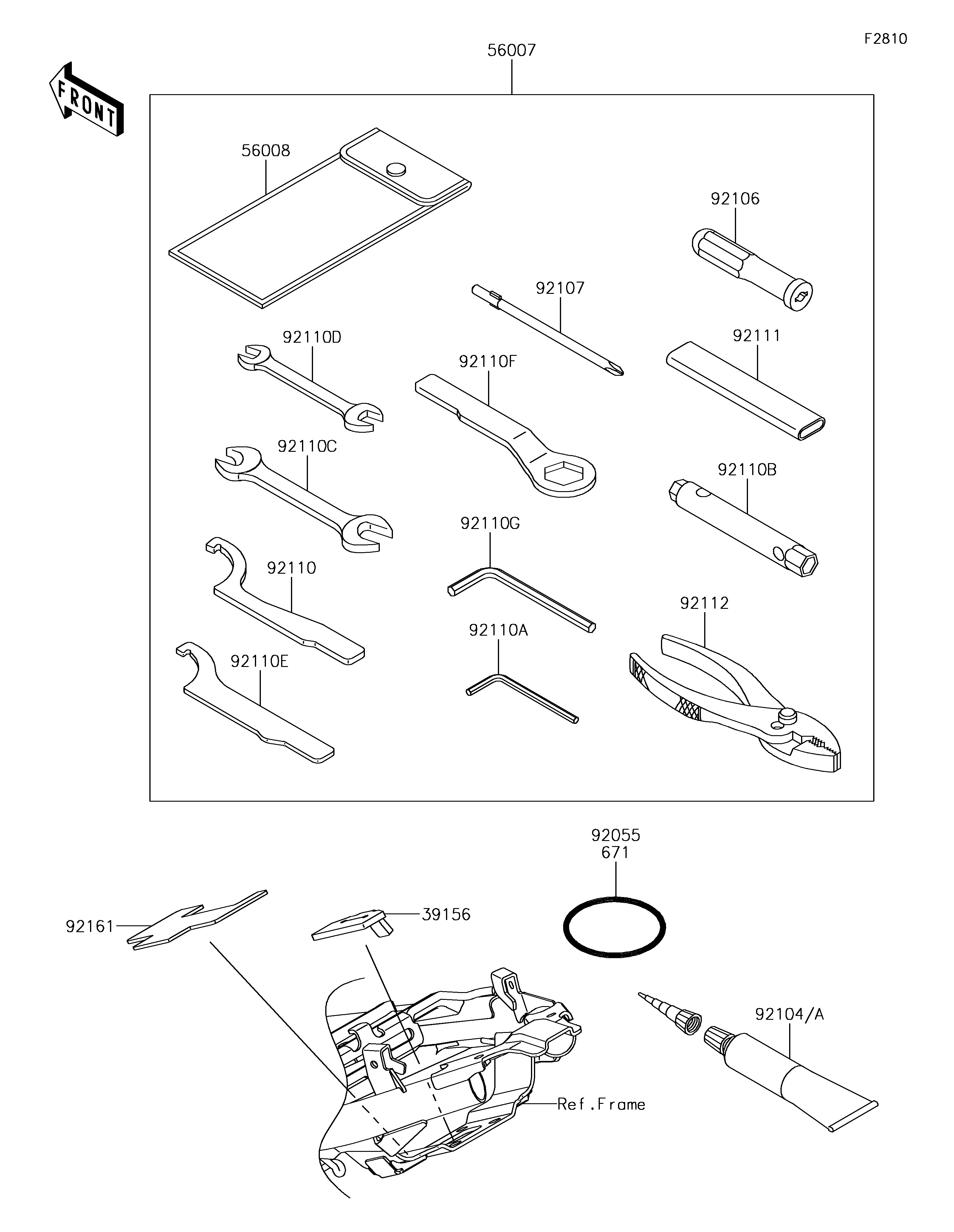

Parts Diagrams |
39156
56007
56008
92055
92104
92104A
92106
92107
92110
92110A
92110B
92110C
92110D
92110E
92110F
92110G
92111
92112
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,TOOL CASE | 39156 | 39156-1843 | 1 | ||
| TOOL-KIT | 56007 | 56007-0123 | 1 | ||
| BAG,TOOL | 56008 | 56008-0050 | 1 | ||
| RING-O,59.4X3.1 | 92055 | 92055-0880 | 1 | ||
| GASKET-LIQUID,TB1211F,CLEAR | 92104 | 92104-0004 | 1 | ||
| GASKET-LIQUID,TB1216B,BLACK | 92104A | 92104-1064 | 1 | ||
| GRIP-SCREW DRIVER | 92106 | 92106-0005 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS | 92107 | 92107-0022 | 1 | ||
| TOOL-WRENCH,HOOK,R30,UP | 92110 | 92110-0572 | 1 | ||
| TOOL-WRENCH,ALLEN,4MM | 92110A | 92110-0583 | 1 | ||
| TOOL-WRENCH,BOX,8X10 | 92110B | 92110-0584 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110C | 92110-0585 | 1 | ||
| TOOL-WRENCH,OPEN END,12X14 | 92110D | 92110-0586 | 1 | ||
| TOOL-WRENCH,HOOK,R30 | 92110E | 92110-0591 | 1 | ||
| TOOL-WRENCH,BOX END,24MM | 92110F | 92110-0598 | 1 | ||
| TOOL-WRENCH,ALLEN,6MM | 92110G | 92110-0599 | 1 | ||
| TOOL-BAR | 92111 | 92111-1057 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-0008 | 1 | ||
| DAMPER,TOOL BAG | 92161 | 92161-1735 | 1 |
