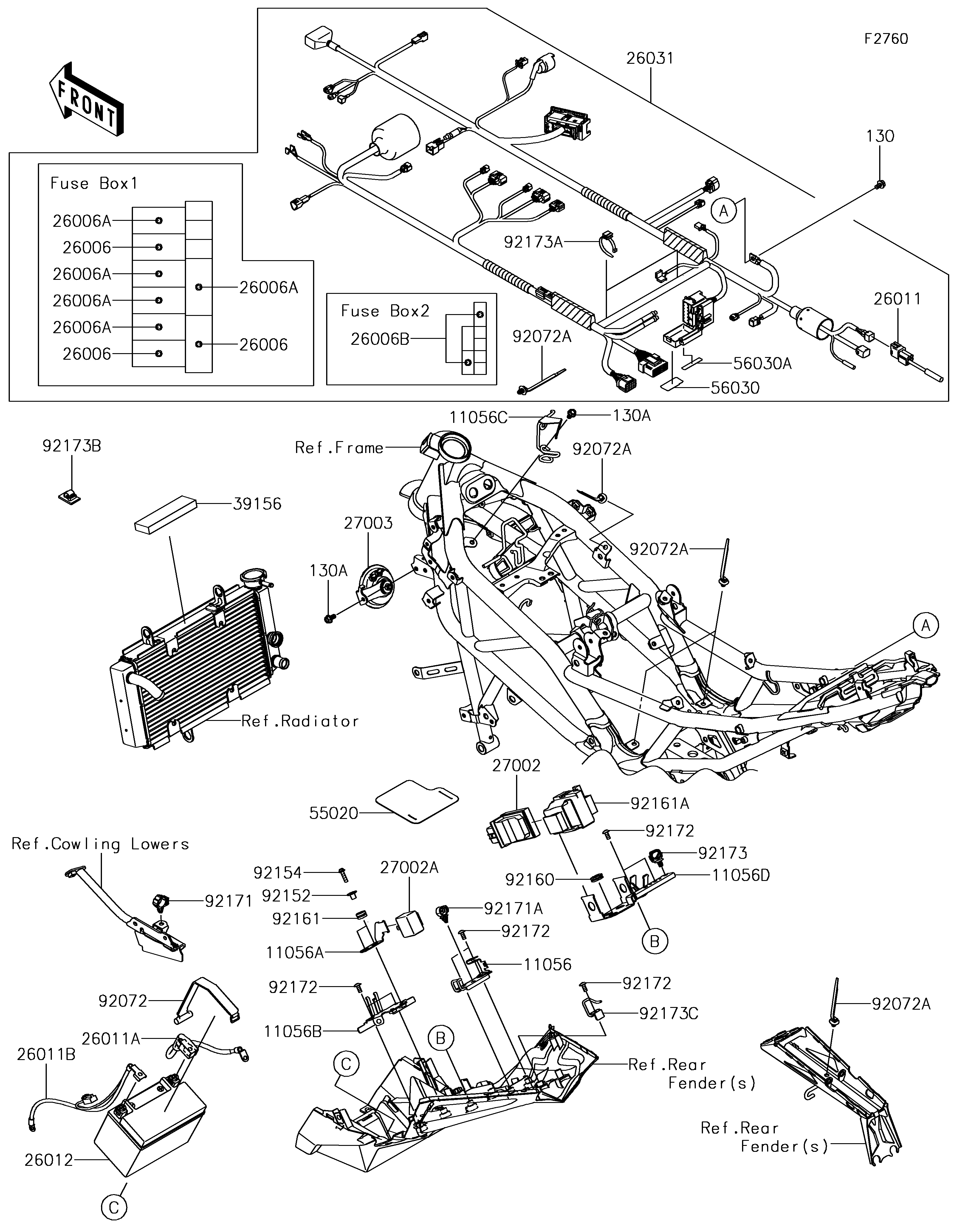

2017 Z250SL ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
11056C
11056D
130
130A
130A
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006B
26011
26011A
26011B
26012
26031
27002
27002A
27003
39156
55020
56030
56030A
92072
92072A
92072A
92072A
92072A
92152
92154
92160
92161
92161A
92171
92171A
92172
92172
92172
92172
92173
92173A
92173B
92173C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DIAG 11056 11056-2695 1
BRACKET,RELAY 11056A 11056-2810 1
BRACKET,FUSE BOX 11056B 11056-4342 1
BRACKET,ACG 11056C 11056-4437 1
BRACKET,ECU 11056D 11056-7058 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 2
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 5
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
WIRE-LEAD,DIAG 26011 26011-0858 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0892 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0915 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0868 1
HARNESS,MAIN 26031 26031-2261 1
RELAY-ASSY 27002 27002-0019 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-0020 1
HORN 27003 27003-0099 1
PAD,RADIATOR TOP 39156 39156-1834 1
GUARD 55020 55020-1857 1
LABEL,FUSE BOX1 56030 56030-0837 1
LABEL,FUSE BOX2 56030A 56030-0838 1
BAND 92072 92072-0749 1
BAND,OS170-FT7(BLACK) 92072A 92072-1414 16
COLLAR 92152 92152-1592 2
BOLT,SOCKET,5X20 92154 92154-0829 2
DAMPER 92160 92160-1278 1
DAMPER 92161 92161-0056 2
DAMPER 92161A 92161-1564 1
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP,13MM DIA. 92171A 92171-1415 1
SCREW,5X12 92172 92172-0857 7
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-0791 2
CLAMP 92173B 92173-1061 1
CLAMP,TAIL LAMP 92173C 92173-1182 1
