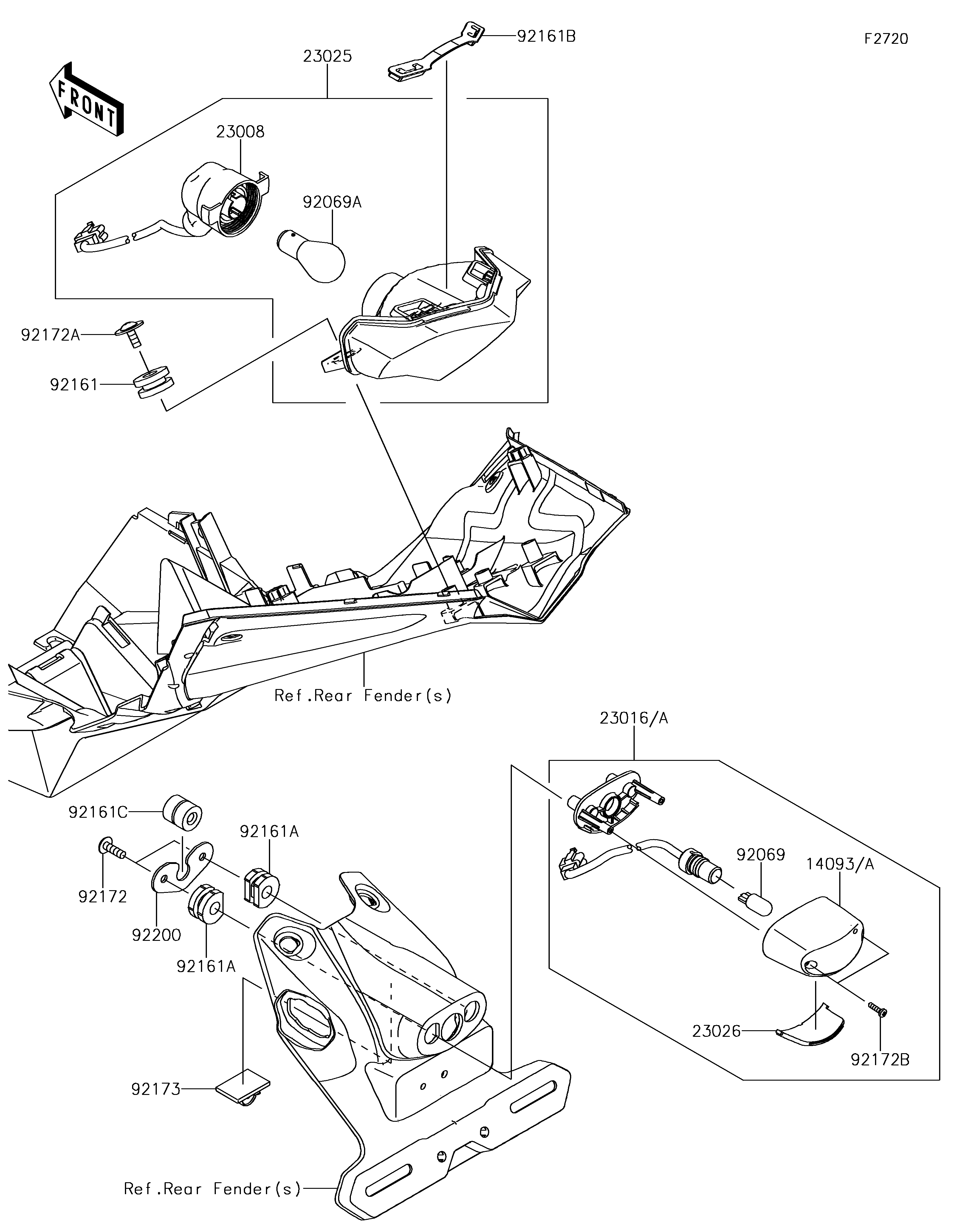

2017 Z250SL ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
14093A
23008
23016A
23025
23026
92069
92069A
92161
92161A
92161A
92161B
92161C
92172
92172A
92172B
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LICENSE LAMP 14093A 14093-0525 1
SOCKET-ASSY 23008 23008-0156 1
LAMP-ASSY,LICENCE 23016A 23016-0595 1
LAMP-TAIL 23025 23025-0343 1
LENS,LICENSE LAMP 23026 23026-0022 1
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-0776 2
DAMPER,TAIL LAMP 92161B 92161-1800 1
DAMPER,6X18X18.2 92161C 92161-1809 1
SCREW,TAPPING,5X16 92172 92172-0427 2
SCREW,TAPPING,WP,5X14 92172A 92172-0441 2
SCREW,4X12 92172B 92172-0904 2
CLAMP 92173 92173-1061 1
WASHER 92200 92200-1773 1
