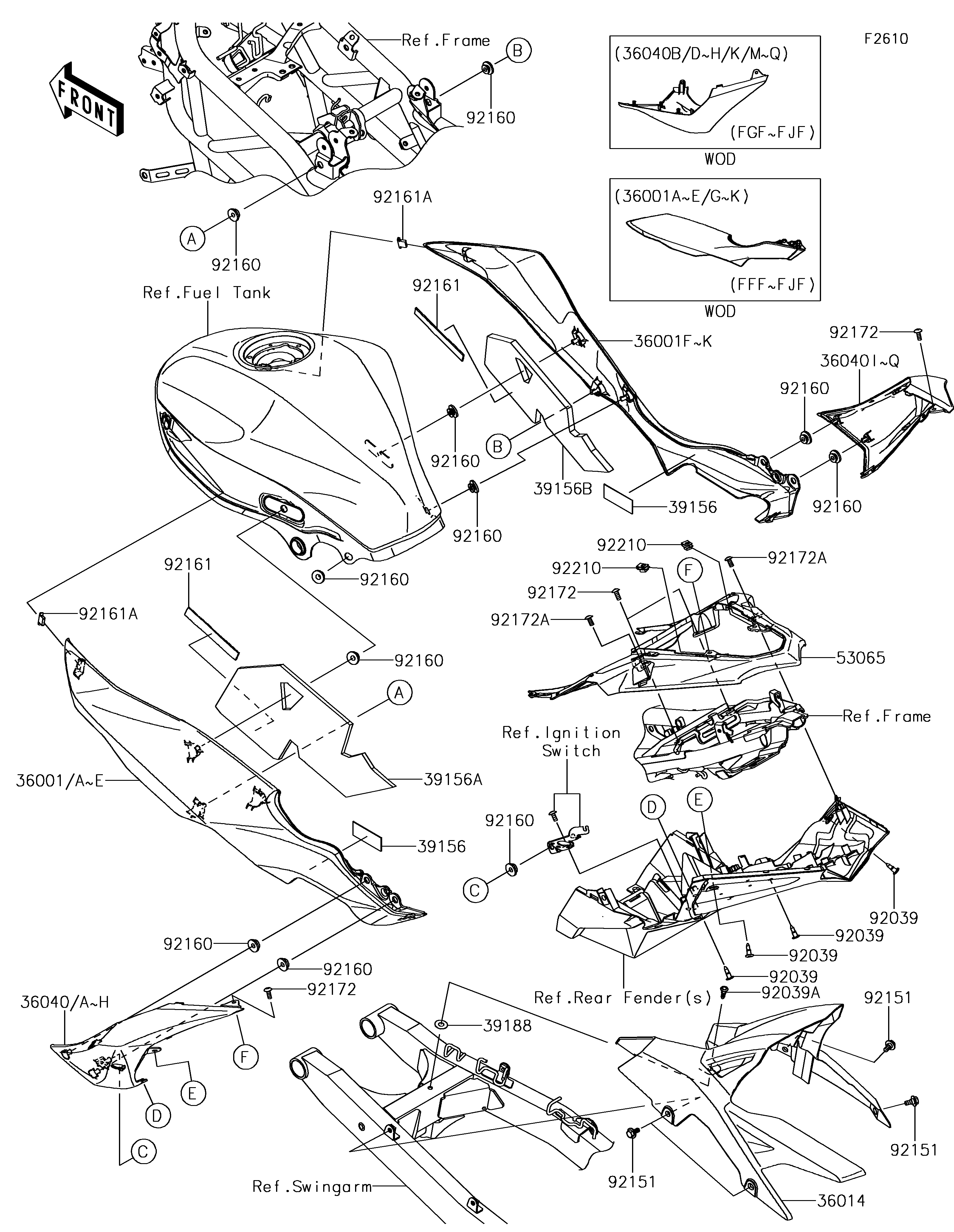

2017 Z250SL ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001E
36001E
36001K
36001K
36014
36014
36040B
36040B
36040D
36040D
36040K
36040K
36040M
36040M
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39188
39188
53065
53065
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92151
92151
92151
92151
92151
92151
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001E 36001-0601-H8 1
COVER-SIDE,RH,EBONY 36001K 36001-0602-H8 1
CASE-CHAIN 36014 36014-0562 1
COVER-TAIL,LH,C.S.RED 36040B 36040-0140-34T 1
COVER-TAIL,LH,M.G.GRAY 36040D 36040-0140-45W 1
COVER-TAIL,RH,C.S.RED 36040K 36040-0141-34T 1
COVER-TAIL,RH,M.G.GRAY 36040M 36040-0141-45W 1
PAD,25X60X1 39156 39156-1861 2
PAD,SIDE COVER,LH 39156A 39156-1950 1
PAD,SIDE COVER,RH 39156B 39156-1951 1
TAPE,8X19 39188 39188-0046 1
COVER SEAT 53065 53065-0024 1
RIVET 92039 92039-0707 4
RIVET 92039A 92039-0709 1
BOLT,FLANGED,6X13 92151 92151-1703 4
DAMPER 92160 92160-1613 11
DAMPER,15X110X2 92161 92161-1571 2
DAMPER 92161A 92161-1626 2
SCREW 92172 92172-0016 4
SCREW,5X12 92172A 92172-0857 2
NUT,PLATE,5MM 92210 92210-0262 2
