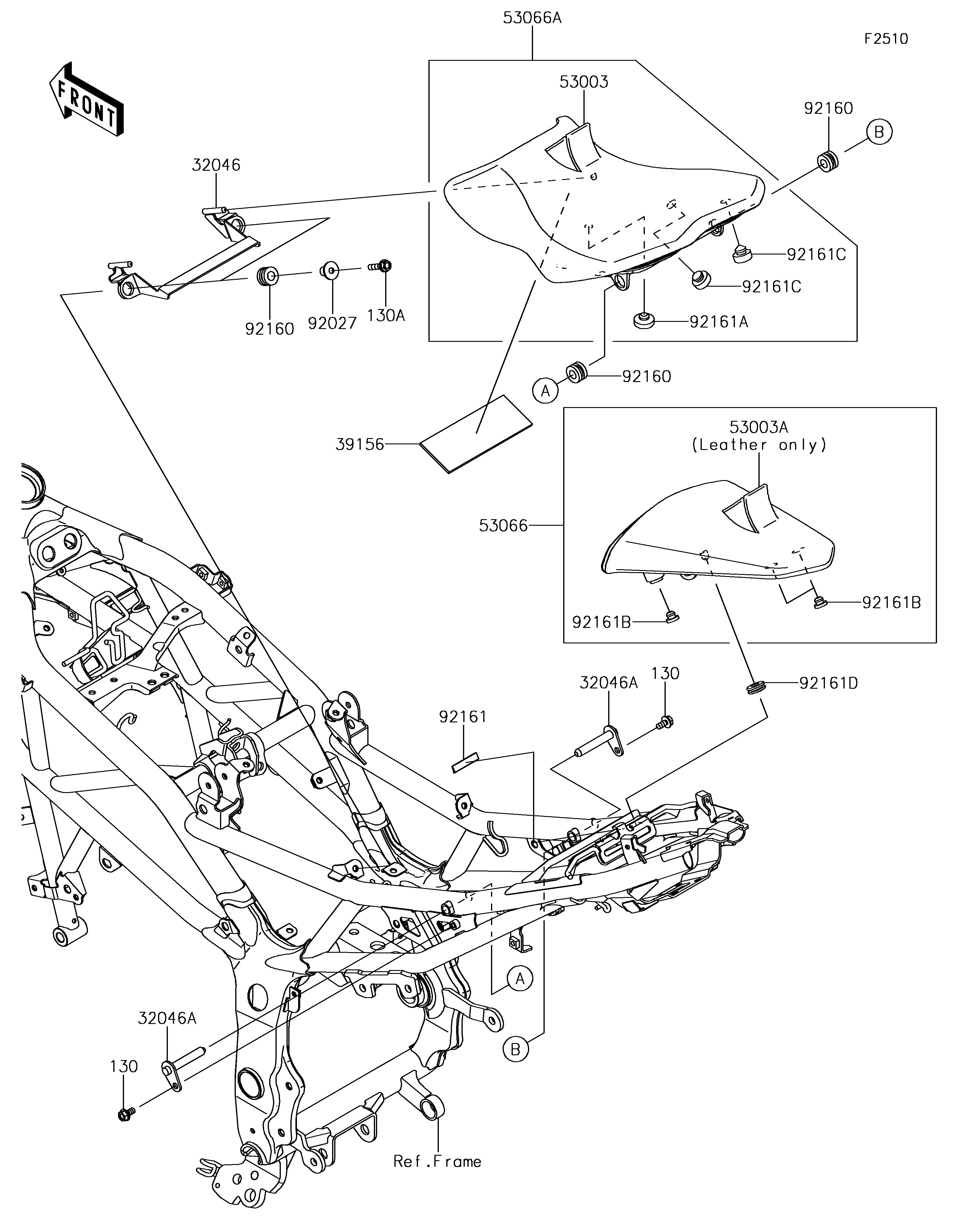

2017 Z250SL ABS - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
32046
32046A
32046A
39156
53003
53003A
53066
53066A
92027
92160
92160
92160
92161
92161A
92161B
92161B
92161C
92161C
92161D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X25 130A 130BA0625 2
BRACKET-SEAT,FR 32046 32046-0353 1
BRACKET-SEAT,RR 32046A 32046-0354 2
PAD,48X130X3 39156 39156-1935 1
LEATHER,FR SEAT,BLACK 53003 53003-0371-MA 1
LEATHER,RR SEAT,BLACK 53003A 53003-0372-MA 1
SEAT-ASSY,RR,BLK+BAND BLK 53066 53066-0463-12Y 1
SEAT-ASSY,FR,BLACK 53066A 53066-0470-MA 1
COLLAR,6.5X10X14.1 92027 92027-1183 2
DAMPER,10X20X12 92160 92160-1167 4
DAMPER,COVER UPP 92161 92161-0654 1
DAMPER 92161A 92161-0915 1
DAMPER 92161B 92161-1084 3
DAMPER,10X20X8 92161C 92161-1609 4
DAMPER,9X20X7 92161D 92161-1644 1
