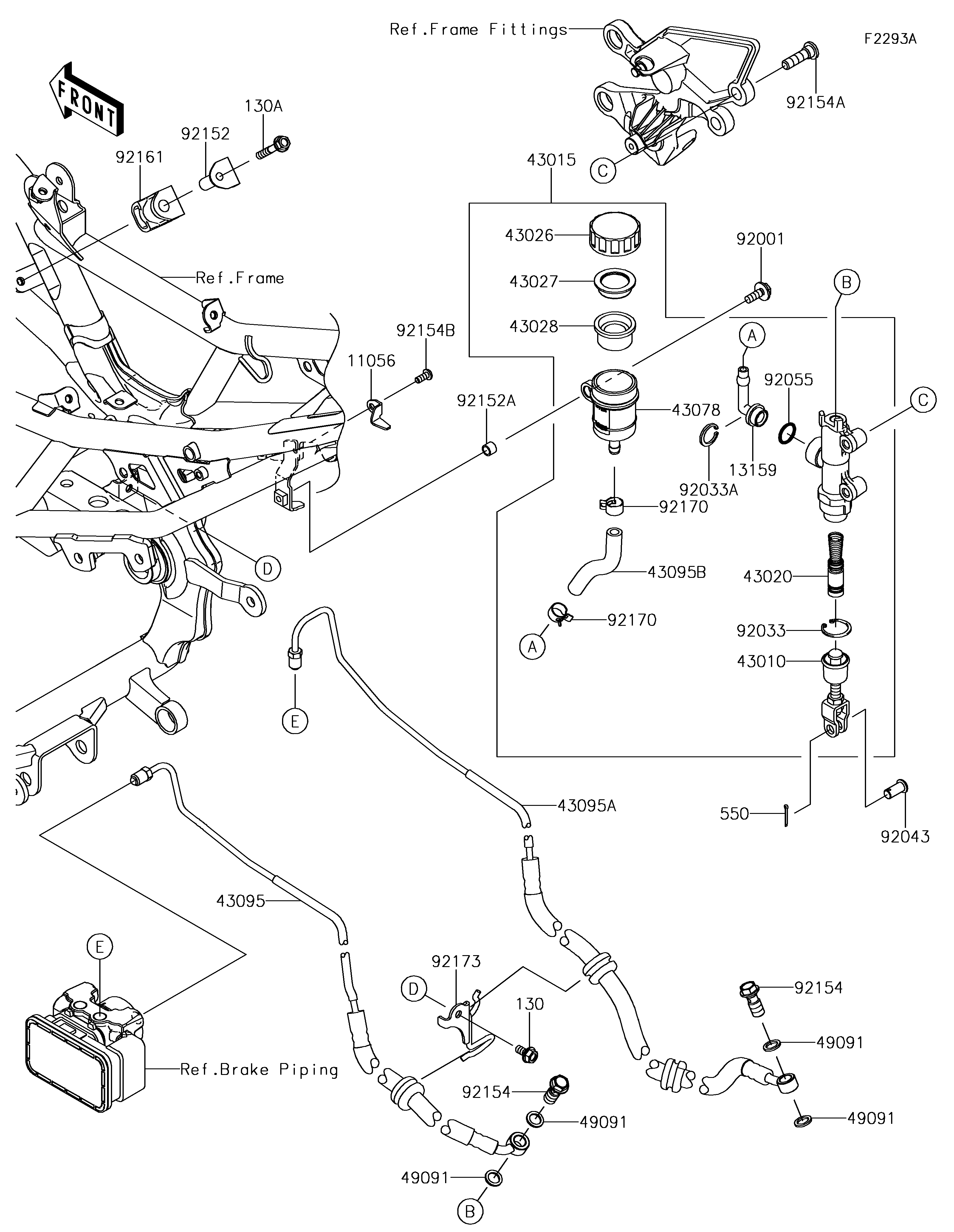

2017 Z250SL ABS - Rear Master Cylinder(FGF-FJF)

DOWNLOAD PDF
SELECT A NEW PART
11056
130
130A
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
49091
49091
49091
49091
550
92001
92033
92033A
92043
92055
92152
92152A
92154
92154
92154A
92154B
92161
92170
92170
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-7674 1
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X35 130A 130BA0635 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0014 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0632 1
PISTON-COMP-BRAKE 43020 43020-0027 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0060 1
HOSE-BRAKE,RR M/CYLINDER 43095 43095-0795 1
HOSE-BRAKE,RR CALIPER 43095A 43095-0796 1
HOSE-BRAKE,RR 43095B 43095-0801 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
PIN-COTTER,2.0X15 550 550AA2015 1
BOLT,6X18 92001 92001-1342 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
COLLAR 92152 92152-0409 1
COLLAR,7.1X9.5X7 92152A 92152-0561 1
BOLT,FLANGED,10X23 92154 92154-0732 2
BOLT,SOCKET,8X30 92154A 92154-0843 2
BOLT,SOCKET,5X12 92154B 92154-1868 1
DAMPER,BRAKE PIPE 92161 92161-0347 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92173 92173-1121 1
