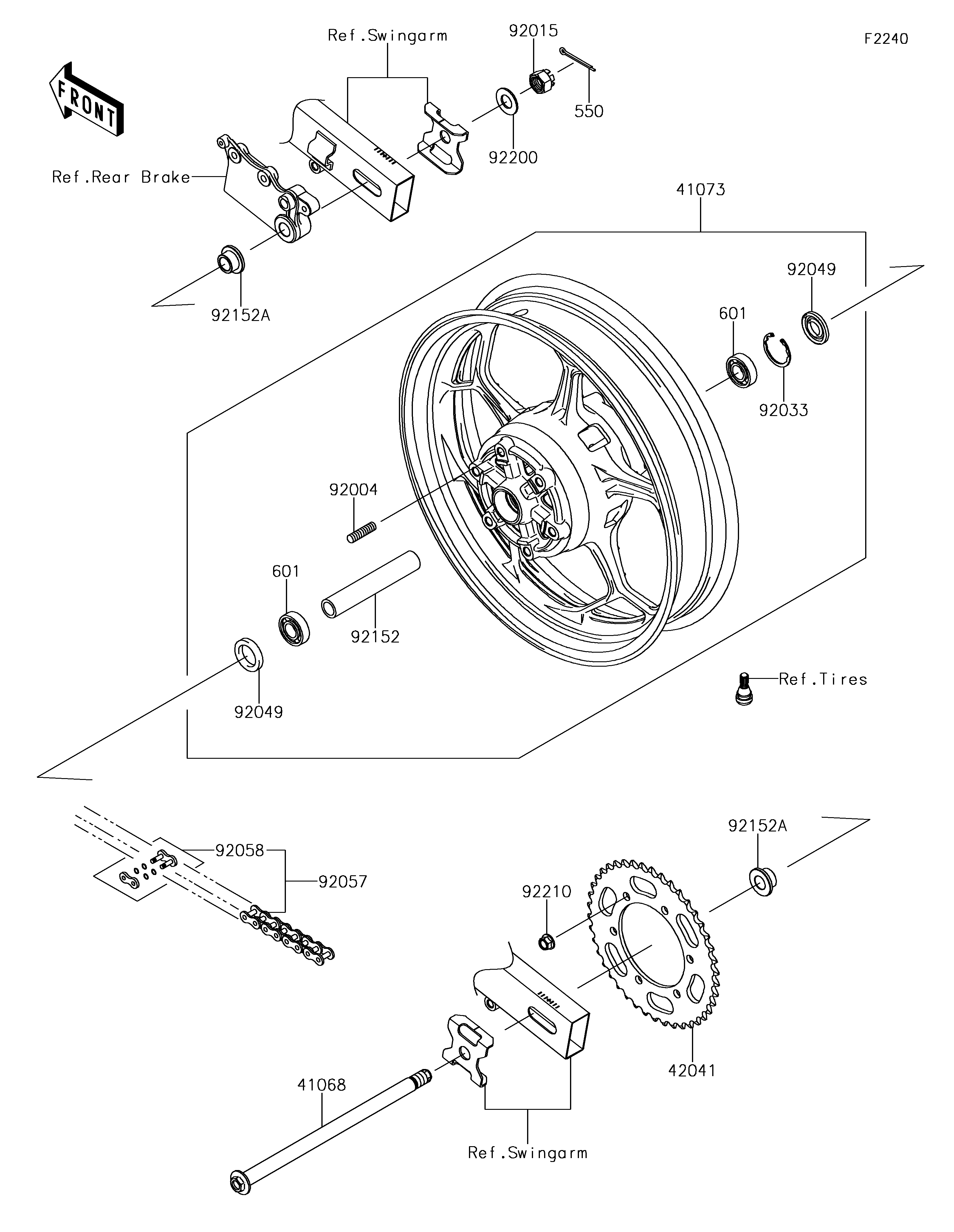

Parts Diagrams |
41068
41073
42041
550
601
601
92004
92015
92033
92049
92049
92057
92058
92152
92152A
92152A
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,RR | 41068 | 41068-1223 | 1 | ||
| WHEEL-ASSY,RR,G.BLACK | 41073 | 41073-0611-QT | 1 | ||
| SPROCKET-HUB,42T | 42041 | 42041-0129 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550AA4035 | 1 | ||
| BEARING-BALL,#6203UUC3 | 601 | 601B6203UU | 2 | ||
| STUD,10X19 | 92004 | 92004-0048 | 6 | ||
| NUT,CASTLE,16MM | 92015 | 92015-1947 | 1 | ||
| RING-SNAP,40MM | 92033 | 92033-1040 | 1 | ||
| SEAL-OIL | 92049 | 92049-0746 | 2 | ||
| CHAIN,DRIVE,EK520MVXLX104L | 92057 | 92057-0213 | 1 | ||
| JOINT-CHAIN,DRIVE | 92058 | 92058-0021 | 1 | ||
| COLLAR,17.1X24X141 | 92152 | 92152-1759 | 1 | ||
| COLLAR,17X24X16 | 92152A | 92152-1760 | 2 | ||
| WASHER,17.5X34X2 | 92200 | 92200-1687 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 6 |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,RR,G.BLACK | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,42T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6203UUC3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STUD,10X19 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,16MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,40MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,EK520MVXLX104L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN,DRIVE | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,17.1X24X141 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,17X24X16 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.5X34X2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
