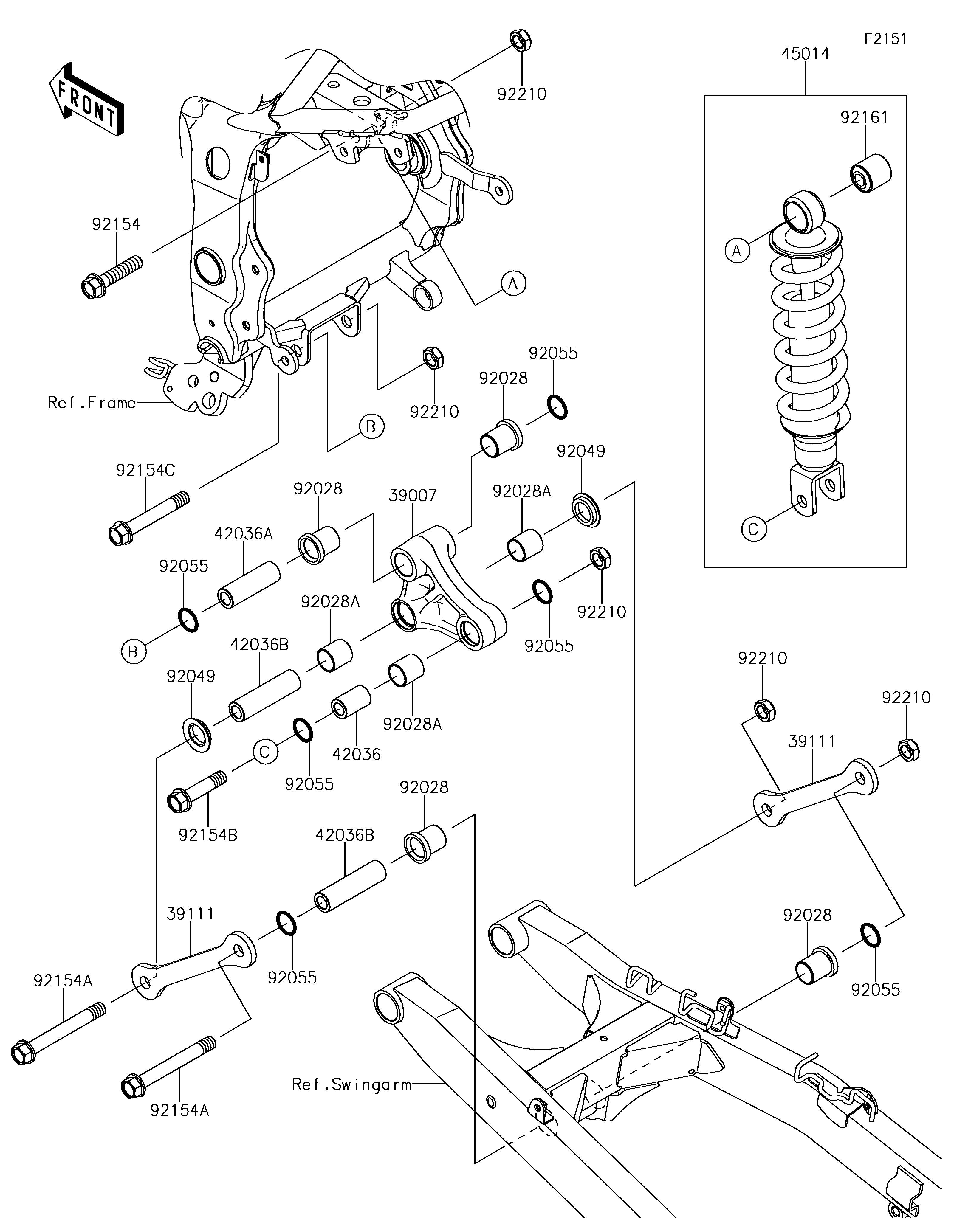

2017 Z250SL ABS - Suspension/Shock Absorber
39007
39111
39111
42036
42036A
42036B
42036B
45014
92028
92028
92028
92028
92028A
92028A
92028A
92049
92049
92055
92055
92055
92055
92055
92055
92154
92154A
92154A
92154B
92154C
92161
92210
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,UNI TRAK | 39007 | 39007-0376 | 1 | ||
| ROD-TIE,SUSPENSION | 39111 | 39111-0327 | 2 | ||
| SLEEVE,12.1X20X32 | 42036 | 42036-1077 | 1 | ||
| SLEEVE,ARM,FR | 42036A | 42036-1078 | 1 | ||
| SLEEVE,12.1X20X74 | 42036B | 42036-1102 | 2 | ||
| SHOCKABSORBER,P.WHITE | 45014 | 45014-0430-EH | 1 | ||
| BUSHING | 92028 | 92028-1597 | 4 | ||
| BUSHING | 92028A | 92028-1598 | 3 | ||
| SEAL-OIL,ARM | 92049 | 92049-1109 | 2 | ||
| RING-O,19.8X2.2 | 92055 | 92055-0732 | 6 | ||
| BOLT,FLANGED,12X55 | 92154 | 92154-0362 | 1 | ||
| BOLT,FLANGED,12X98 | 92154A | 92154-0941 | 2 | ||
| BOLT,FLANGED,12X52 | 92154B | 92154-0942 | 1 | ||
| BOLT,FLANGED,12X80 | 92154C | 92154-1308 | 1 | ||
| DAMPER,12.1X17X30 | 92161 | 92161-1510 | 1 | ||
| NUT,LOCK,12MM | 92210 | 92210-1247 | 5 |
