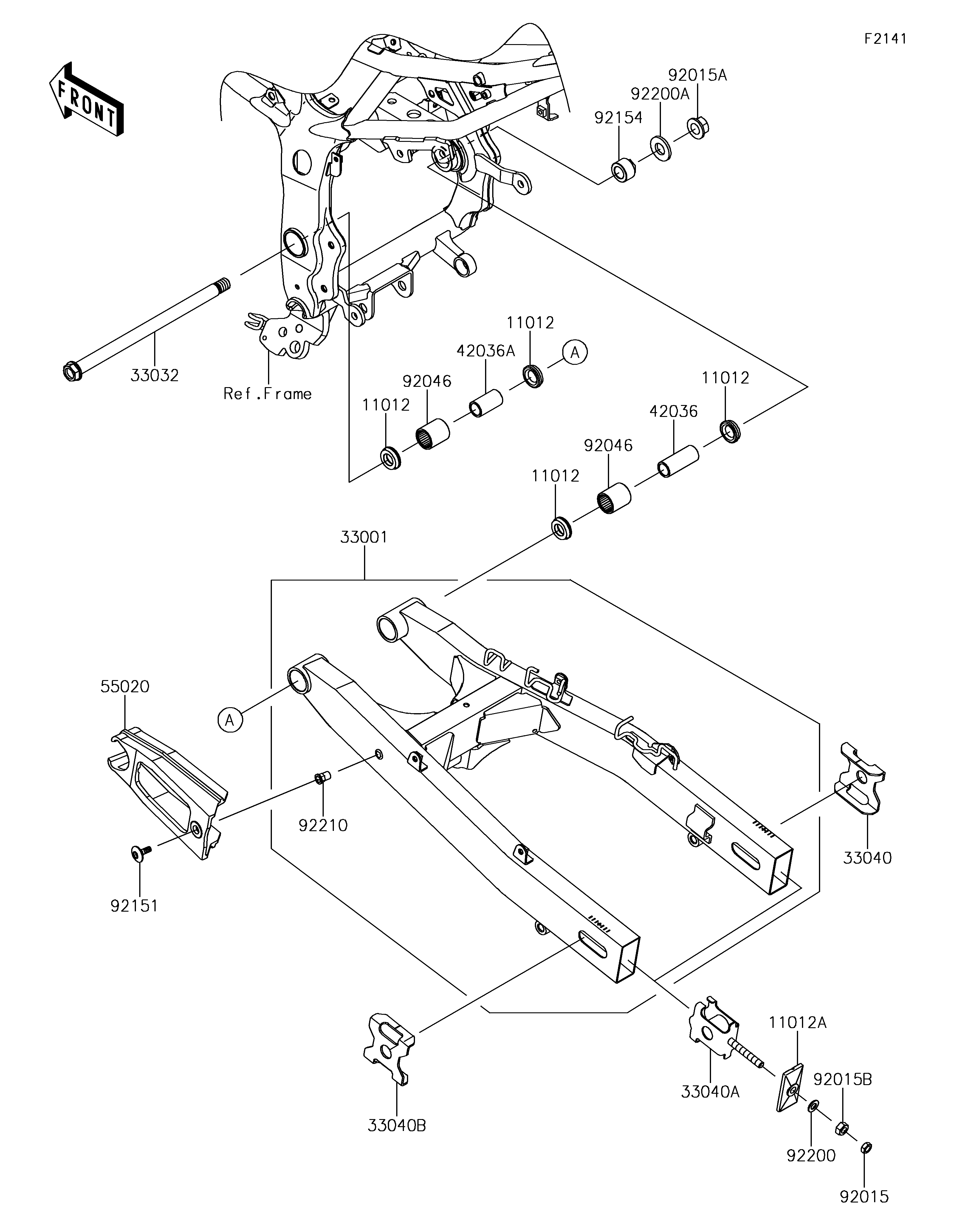

2017 Z250SL ABS - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012A
33001
33032
33040
33040A
33040B
42036
42036A
55020
92015
92015A
92015B
92046
92046
92151
92154
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1259 4
CAP,CHAIN ADJUSTER,F.S.BLACK 11012A 11012-1871-18R 2
ARM-COMP-SWING,F.S.BLACK 33001 33001-0613-18R 1
SHAFT-SWING ARM,14X254 33032 33032-0038 1
ADJUSTER-CHAIN,OUTER,RH 33040 33040-0044 1
ADJUSTER-CHAIN,INNER 33040A 33040-0045 2
ADJUSTER-CHAIN,OUTER,LH 33040B 33040-0046 1
SLEEVE,15X20X49 42036 42036-0736 1
SLEEVE,SWING ARM 42036A 42036-1064 1
GUARD,CHAIN 55020 55020-0912 1
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1407 1
NUT,8MM 92015B 92015-1658 2
BEARING-NEEDLE 92046 92046-0038 2
BOLT,SOCKET,6X18 92151 92151-1149 1
BOLT,25X19 92154 92154-1241 1
WASHER,8.5X16X1.2 92200 92200-0905 2
WASHER,15.2X31X3.2 92200A 92200-0953 1
NUT,POP,6MM,L=15 92210 92210-1397 1
