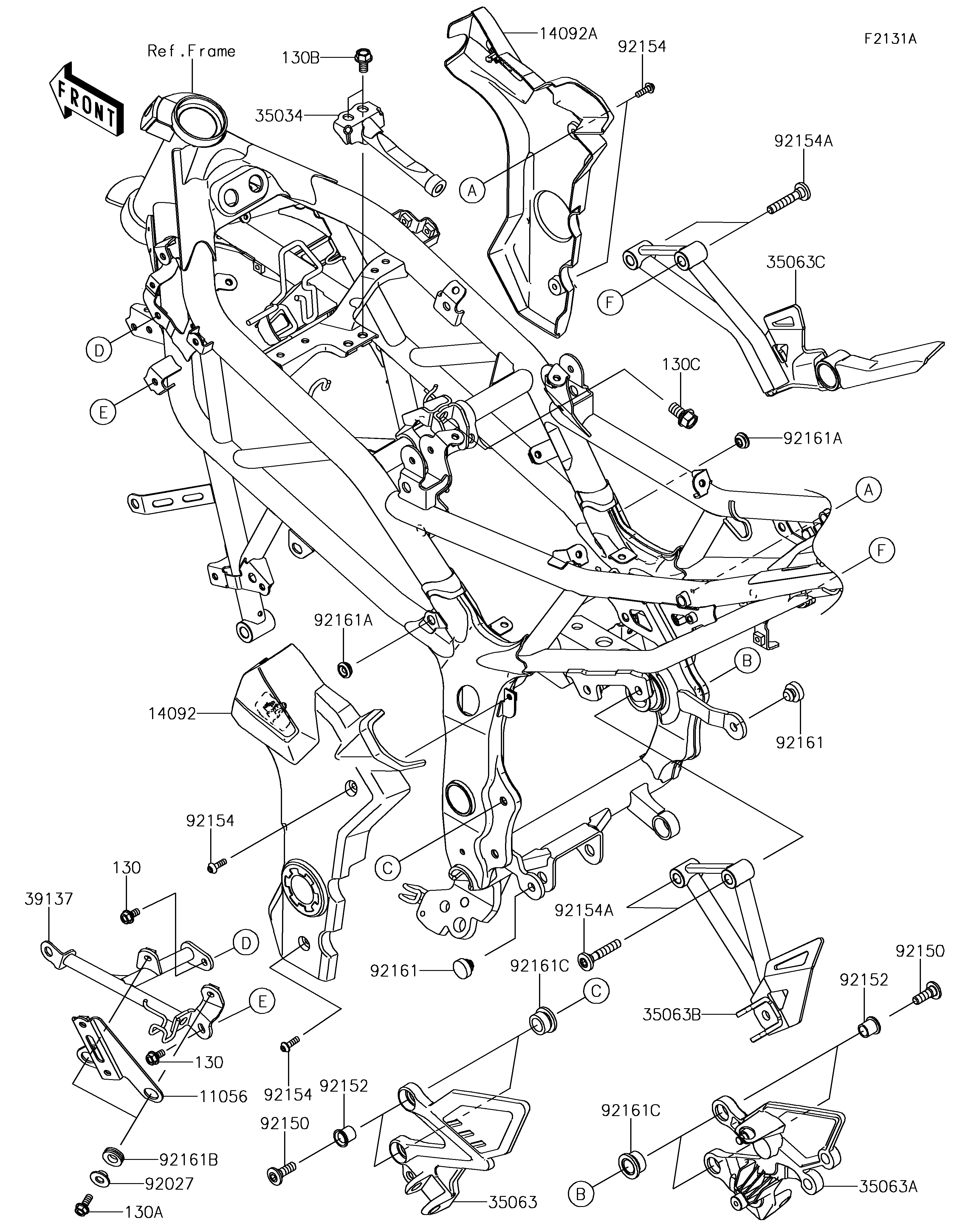

2017 Z250SL ABS - Frame Fittings(FGF-FJF)

DOWNLOAD PDF
SELECT A NEW PART
11056
130
130
130A
130B
130C
14092
14092A
35034
35063
35063A
35063B
35063C
39137
92027
92150
92150
92152
92152
92154
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92161B
92161C
92161C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR 11056 11056-2735 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,8X14 130B 130BA0814 2
BOLT-FLANGED,10X18 130C 130BA1018 1
COVER,PIVOT,LH 14092 14092-1113 1
COVER,PIVOT,RH 14092A 14092-1114 1
REINFORCE 35034 35034-0591 1
STAY,STEP,LH 35063 35063-0923 1
STAY,STEP,RH 35063A 35063-0924 1
STAY,LH,F.M.GRAY 35063B 35063-1319-26M 1
STAY,RH,F.M.GRAY 35063C 35063-1320-26M 1
STAY-COMP 39137 39137-0587 1
COLLAR,L=7 92027 92027-153 2
BOLT,8X25 92150 92150-1845 4
COLLAR,10.6X13.8X14.5 92152 92152-1771 4
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,SOCKET,8X44 92154A 92154-1829 4
DAMPER 92161 92161-0046 2
DAMPER 92161A 92161-0631 2
DAMPER,10X20X6 92161B 92161-1592 2
DAMPER,14X26X17.5 92161C 92161-1651 4
