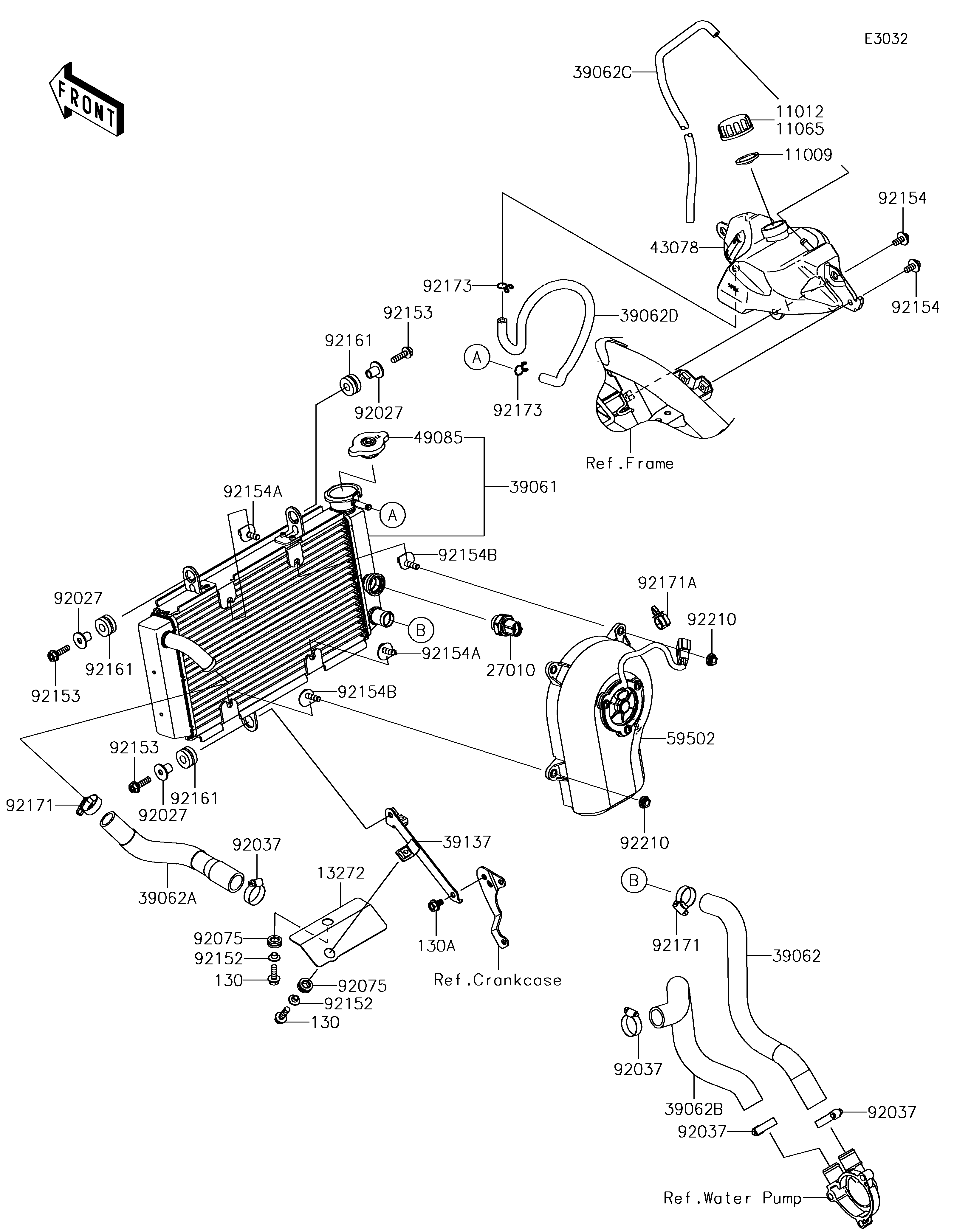

2017 Z250SL ABS - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11065
130
130
130A
13272
27010
39061
39062
39062A
39062B
39062C
39062D
39137
43078
49085
59502
92027
92027
92027
92037
92037
92037
92037
92075
92075
92152
92152
92153
92153
92153
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161
92171
92171
92171A
92173
92173
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11065 11065-0969 1
BOLT-FLANGED,6X16 130 130BA0616 2
BOLT-FLANGED,6X10 130A 130BB0610 1
PLATE 13272 13272-1876 1
SWITCH,THERMO 27010 27010-0755 1
RADIATOR-ASSY 39061 39061-0696 1
HOSE-COOLING,RAD.-W/PUMP 39062 39062-0640 1
HOSE-COOLING,HEAD-RAD. 39062A 39062-0641 1
HOSE-COOLING,W/PUMP-CYLINDER 39062B 39062-0642 1
HOSE-COOLING,OVER FLOW 39062C 39062-0643 1
HOSE-COOLING,RAD.-RESERVOIR 39062D 39062-0644 1
STAY-COMP,RADIATOR 39137 39137-0615 1
RESERVOIR 43078 43078-0570 1
CAP-ASSY-PRESSURE 49085 49085-0010 1
FAN-ASSY 59502 59502-0604 1
COLLAR,6.5X10X14.1 92027 92027-1183 3
CLAMP,COOLING HOSE 92037 92037-1589 4
DAMPER 92075 92075-1947 2
COLLAR,6.3X8.3X16 92152 92152-0286 2
BOLT,FLANGED,6X22 92153 92153-1598 3
BOLT,FLANGED,WP,6X14 92154 92154-1289 2
BOLT 92154A 92154-1442 2
BOLT 92154B 92154-1443 2
DAMPER,RADIATOR 92161 92161-1648 3
CLAMP 92171 92171-0338 2
CLAMP,13MM DIA. 92171A 92171-1415 1
CLAMP 92173 92173-1187 2
NUT 92210 92210-0906 4
