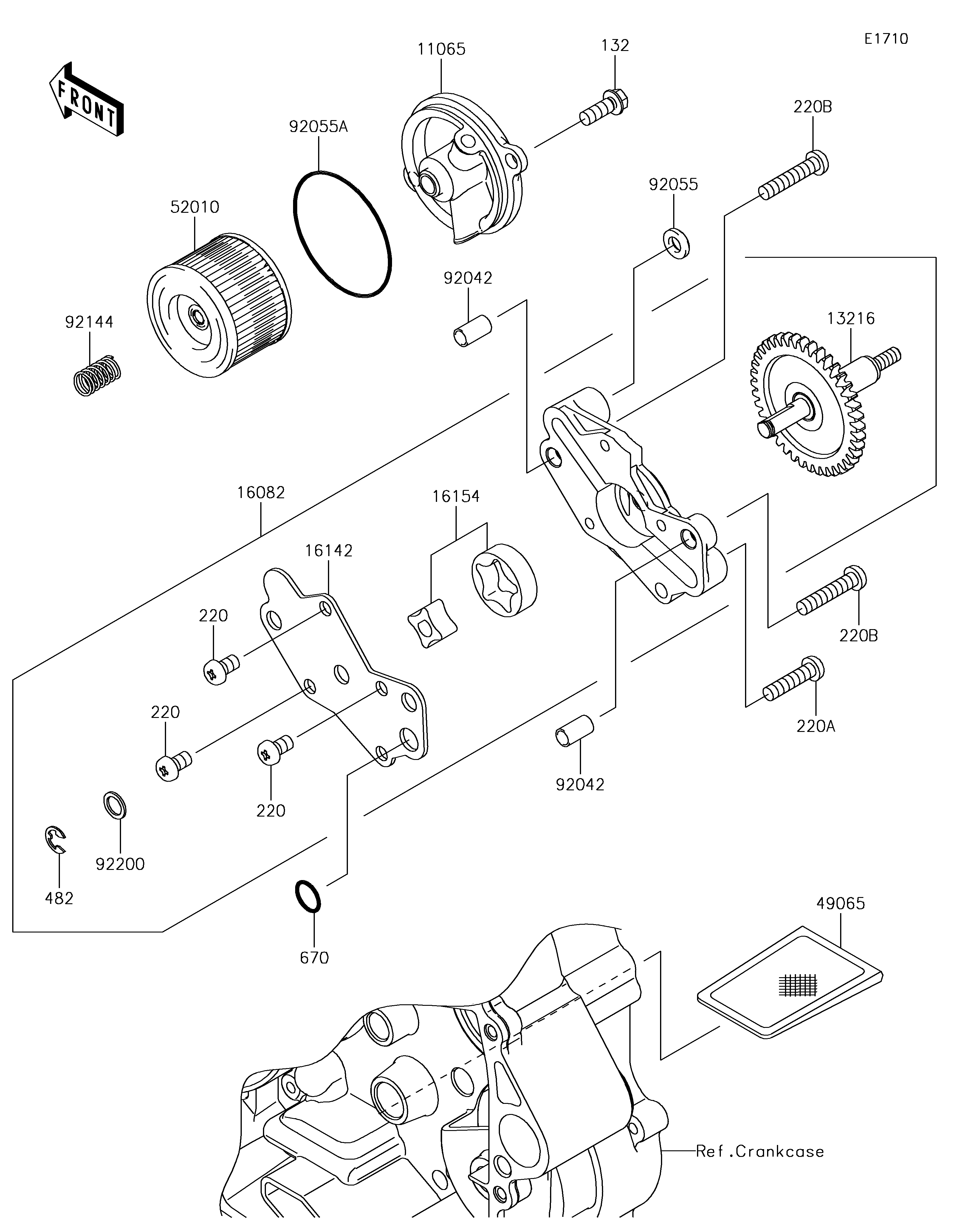

2017 Z250SL ABS - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
11065
132
13216
16082
16142
16154
220
220
220
220A
220B
220B
482
49065
52010
670
92042
92042
92055
92055A
92144
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,OIL FILTER 11065 11065-0833 1
BOLT-FLANGED-SMALL,6X16 132 132BB0616 2
GEAR-COMP,OIL PUMP 13216 13216-0878 1
PUMP-ASSY-OIL 16082 16082-0727 1
COVER-PUMP 16142 16142-0713 1
ROTOR-PUMP 16154 16154-0714 1
SCREW-PAN-CROS,6X10 220 220AA0610 3
SCREW-PAN-CROS,6X25 220A 220AA0625 1
SCREW-PAN-CROS,6X30 220B 220AA0630 2
CIRCLIP-TYPE-E,6MM 482 482J6000 1
FILTER-OIL 49065 49065-1058 1
ELEMENT-OIL FILTER 52010 52010-1053 1
O RING,10MM 670 670D2010 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
RING-O,OD=13 92055 92055-074 1
RING-O,52.6X2.4 92055A 92055-1577 1
SPRING 92144 92144-1761 1
WASHER,8.5X12X1 92200 92200-0890 1
