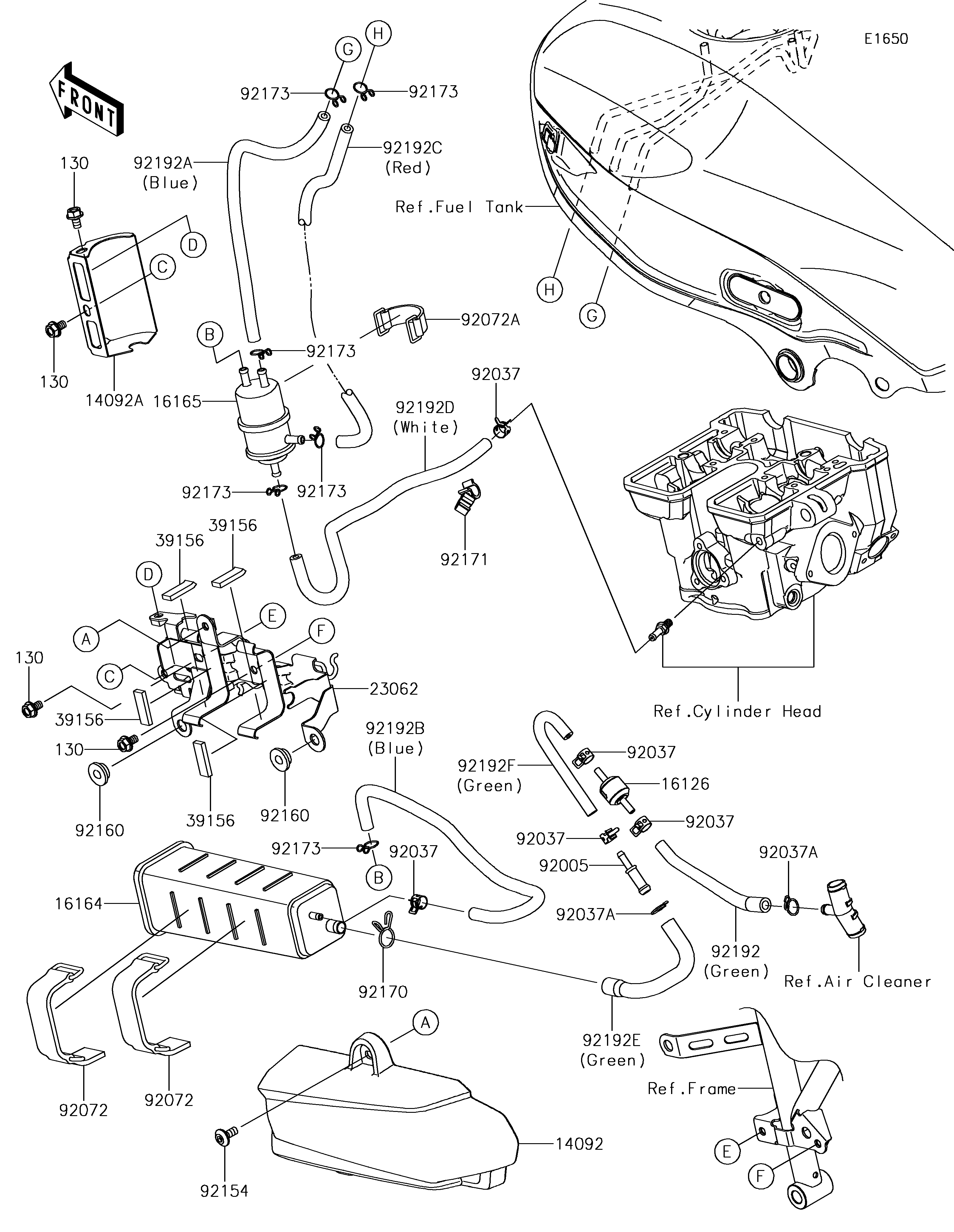

2017 Z250SL ABS - Fuel Evaporative System

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
14092
14092A
16126
16164
16165
23062
39156
39156
39156
39156
92005
92037
92037
92037
92037
92037
92037A
92037A
92072
92072
92072A
92154
92160
92160
92170
92171
92173
92173
92173
92173
92173
92173
92192
92192A
92192B
92192C
92192D
92192E
92192F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 4
COVER,CANISTER 14092 14092-1152 1
COVER,SEPARATOR 14092A 14092-1153 1
VALVE 16126 16126-0719 1
CANISTER 16164 16164-0009 1
SEPARATOR 16165 16165-1001 1
BRACKET-COMP 23062 23062-0798 1
PAD,10X30X4 39156 39156-0927 4
FITTING 92005 92005-0032 1
CLAMP 92037 92037-1601 5
CLAMP 92037A 92037-1935 2
BAND,L=90 92072 92072-0135 2
BAND,L=50 92072A 92072-1419 1
BOLT,SOCKET,6X14 92154 92154-0907 1
DAMPER 92160 92160-1613 2
CLAMP 92170 92170-1695 1
CLAMP 92171 92171-0027 1
CLAMP 92173 92173-1187 6
TUBE,VALVE-AIR CLEANER,GREEN 92192 92192-1306 1
TUBE,TANK-SEPARATOR,BLUE 92192A 92192-1322 1
TUBE,SEPARATOR-CANISTER,BLUE 92192B 92192-1323 1
TUBE,SEPARATOR-TANK,RED 92192C 92192-1324 1
TUBE,HEAD-SEPARATOR,WHITE 92192D 92192-1325 1
TUBE,CANISTER-FITTING,GREEN 92192E 92192-1326 1
TUBE,FITTING-VALVE,GREEN 92192F 92192-1327 1
