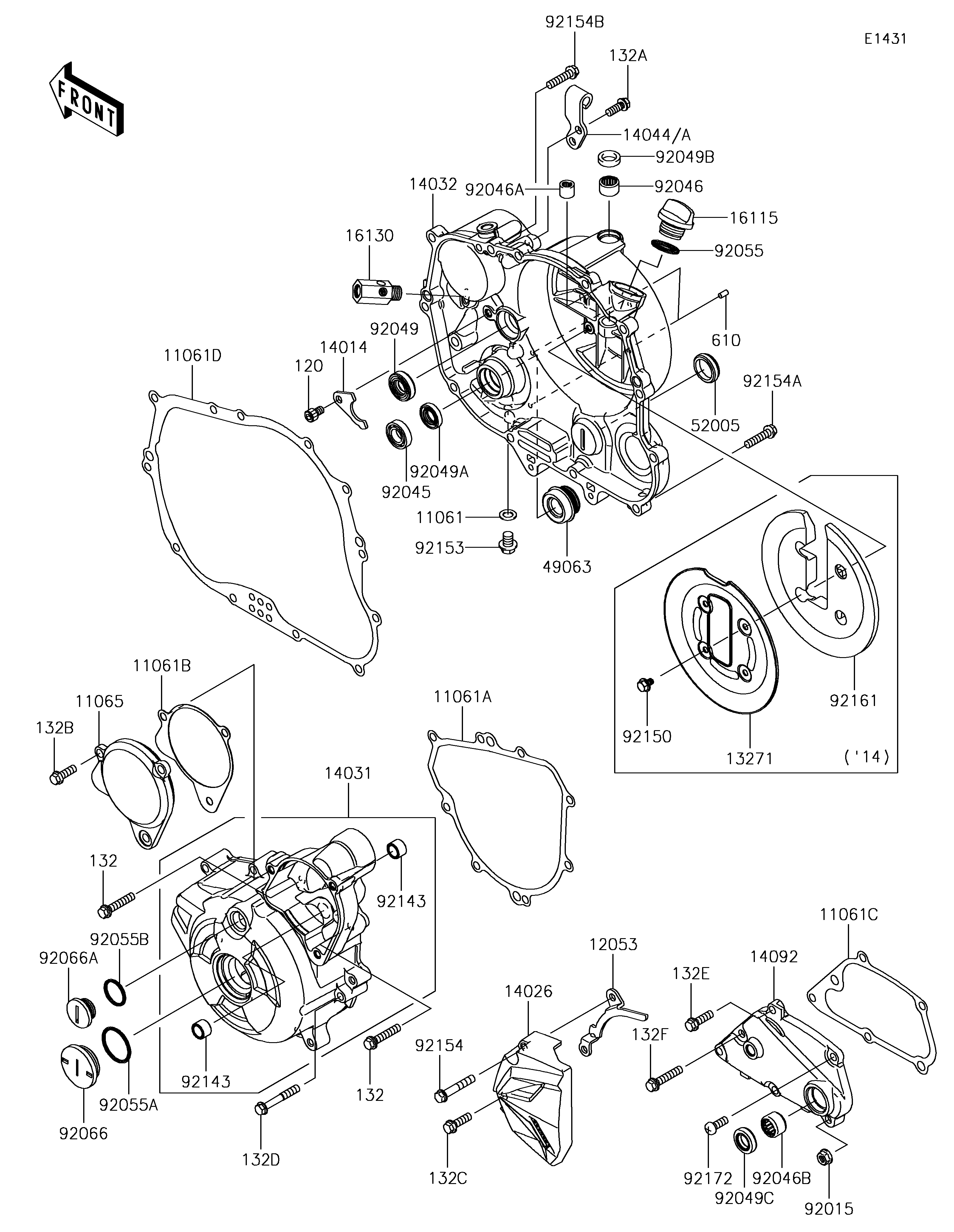

2017 Z250SL ABS - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061A
11061B
11061B
11061C
11061C
11061D
11061D
11065
11065
12053
12053
14014
14014
14026
14026
14031
14031
14032
14032
14044A
14044A
14092
14092
16115
16115
16130
16130
49063
49063
52005
52005
92015
92015
92045
92045
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92066A
92066A
92143
92143
92143
92143
92153
92153
92154
92154
92154A
92154A
92154B
92154B
120
120
132
132
132
132
132A
132A
132B
132B
132C
132C
132D
132D
132E
132E
132F
132F
610
610
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8.2X14X1.0 11061 11061-0418 1
GASKET,GENERATOR COVER 11061A 11061-0891 1
GASKET,CAP 11061B 11061-0892 1
GASKET,TRANSMISSION COVER 11061C 11061-0897 1
GASKET,CLUTCH COVER INNER 11061D 11061-0923 1
CAP,GENERATOR COVER 11065 11065-0342 1
GUIDE-CHAIN 12053 12053-0208 1
PLATE-POSITION 14014 14014-0567 1
COVER-CHAIN 14026 14026-0109 1
COVER-GENERATOR 14031 14031-0585 1
COVER-CLUTCH 14032 14032-0604 1
HOLDER-CABLE,CLUTCH 14044A 14044-0565 1
COVER 14092 14092-0108 1
CAP-OIL FILLER 16115 16115-1053 1
VALVE-ASSY-RELIEF 16130 16130-0002 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
GAUGE,OIL LEVEL 52005 52005-1009 1
NUT,FLANGED,6MM 92015 92015-1367 1
BEARING-BALL,6901 92045 92045-1246 1
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
BEARING-NEEDLE 92046A 92046-0042 1
BEARING-NEEDLE,HK1312 92046B 92046-1148 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL,SC 12X22X5 92049A 92049-1228 1
SEAL-OIL,AG0353-F0 92049B 92049-1262 1
SEAL-OIL 92049C 92049-1559 1
RING-O 92055 92055-012 1
RING-O,27.7X2.4 92055A 92055-091 1
RING-O,20X2 92055B 92055-1146 1
PLUG 92066 92066-0770 1
PLUG,COVER 92066A 92066-1163 1
COLLAR 92143 92143-1263 2
BOLT,FLANGED,8X10 92153 92153-1342 1
BOLT,FLANGED,6X35 92154 92154-1009 1
BOLT,FLANGED,6X25 92154A 92154-1010 10
BOLT,FLANGED,6X25 92154B 92154-1011 1
BOLT-SOCKET,6X10 120 120CA0610 1
BOLT-FLANGED-SMALL,6X30 132 132BA0630 2
BOLT-FLANGED-SMALL,6X16 132A 132BB0616 2
BOLT-FLANGED-SMALL,6X18 132B 132BB0618 3
BOLT-FLANGED-SMALL,6X20 132C 132BB0620 1
BOLT-FLANGED-SMALL,6X40 132D 132BB0640 6
BOLT-FLANGED-SMALL,6X20 132E 132BC0620 3
BOLT-FLANGED-SMALL,6X30 132F 132BC0630 1
ROLLER,4X8 610 610A0408 2
SCREW,6X16 92172 92172-0223 1
