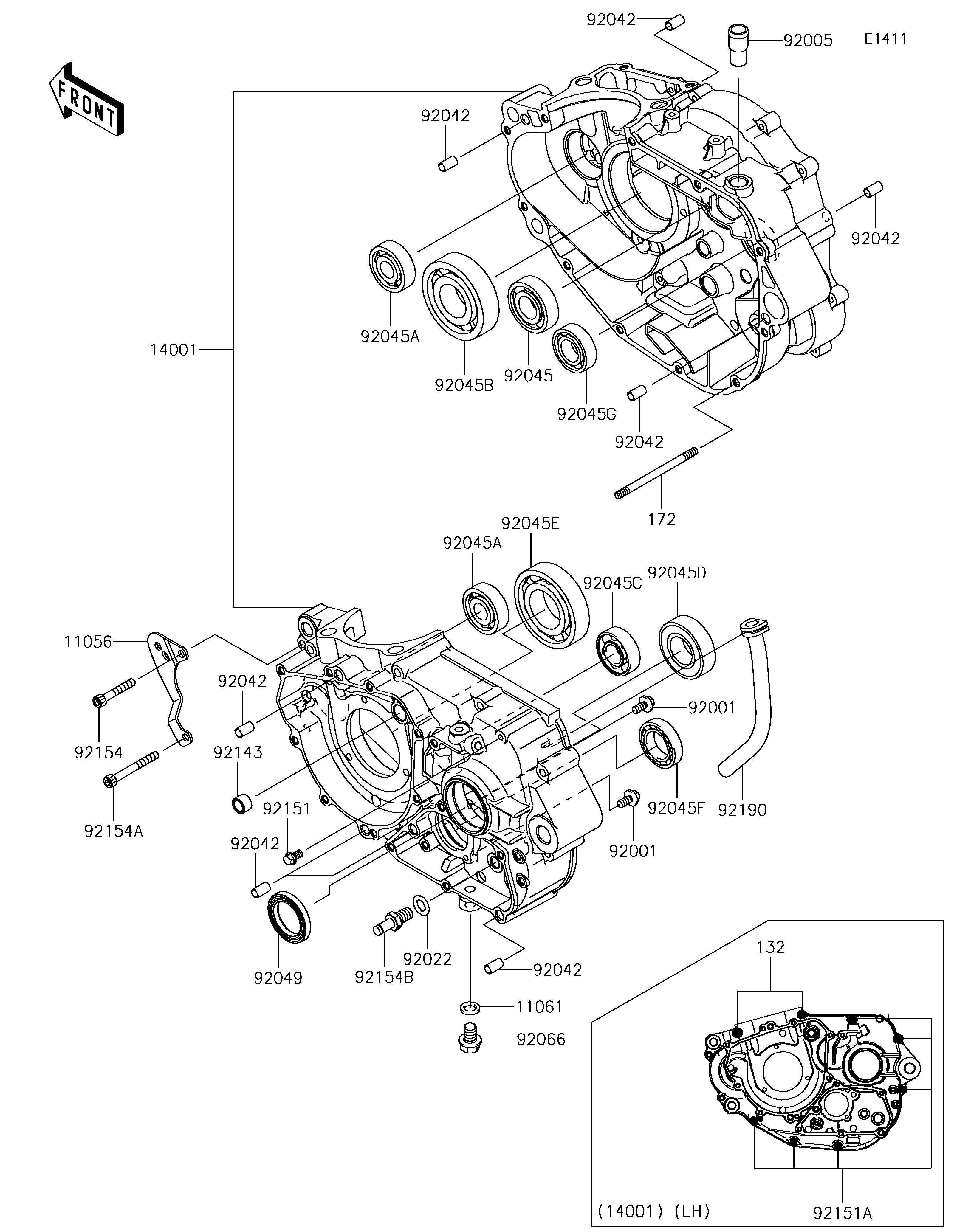

2017 Z250SL ABS - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11056
11061
132
14001
172
92001
92001
92005
92022
92042
92042
92042
92042
92042
92042
92042
92045
92045A
92045A
92045B
92045C
92045D
92045E
92045F
92045G
92049
92066
92143
92151
92151A
92154
92154A
92154B
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RADIATOR 11056 11056-7212 1
GASKET,10.5X16X2 11061 11061-0222 1
BOLT-FLANGED-SMALL,6X70 132 132BC0670 2
SET-CRANKCASE 14001 14001-0619 1
BOLT-STUD,6X80 172 172BA0680 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
FITTING,BREATHER 92005 92005-0713 1
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
PIN,DOWEL,6.3X8X14 92042 92042-007 8
BEARING-BALL,20X47X14 92045 92045-0752 1
BEARING-BALL,15X42X13 92045A 92045-0753 2
BEARING-BALL,30X72X19 92045B 92045-0754 1
BEARING-BALL,17X40X12 92045C 92045-0755 1
BEARING-BALL,25X52X15 92045D 92045-0756 1
BEARING-BALL,35X72X17 92045E 92045-0757 1
BEARING-BALL,25X42X9 92045F 92045-0761 1
BEARING-BALL,DG204012 92045G 92045-1414 1
SEAL-OIL,TC32457 92049 92049-1577 1
PLUG,DRAIN 92066 92066-0143 1
COLLAR 92143 92143-1263 1
BOLT,FLANGED,6X10 92151 92151-1233 1
BOLT,6X50 92151A 92151-1234 6
BOLT,SOCKET,6X37 92154 92154-1244 1
BOLT,SOCKET,6X52 92154A 92154-1245 1
BOLT,RETURN SPRING 92154B 92154-1306 1
TUBE 92190 92190-1493 1
