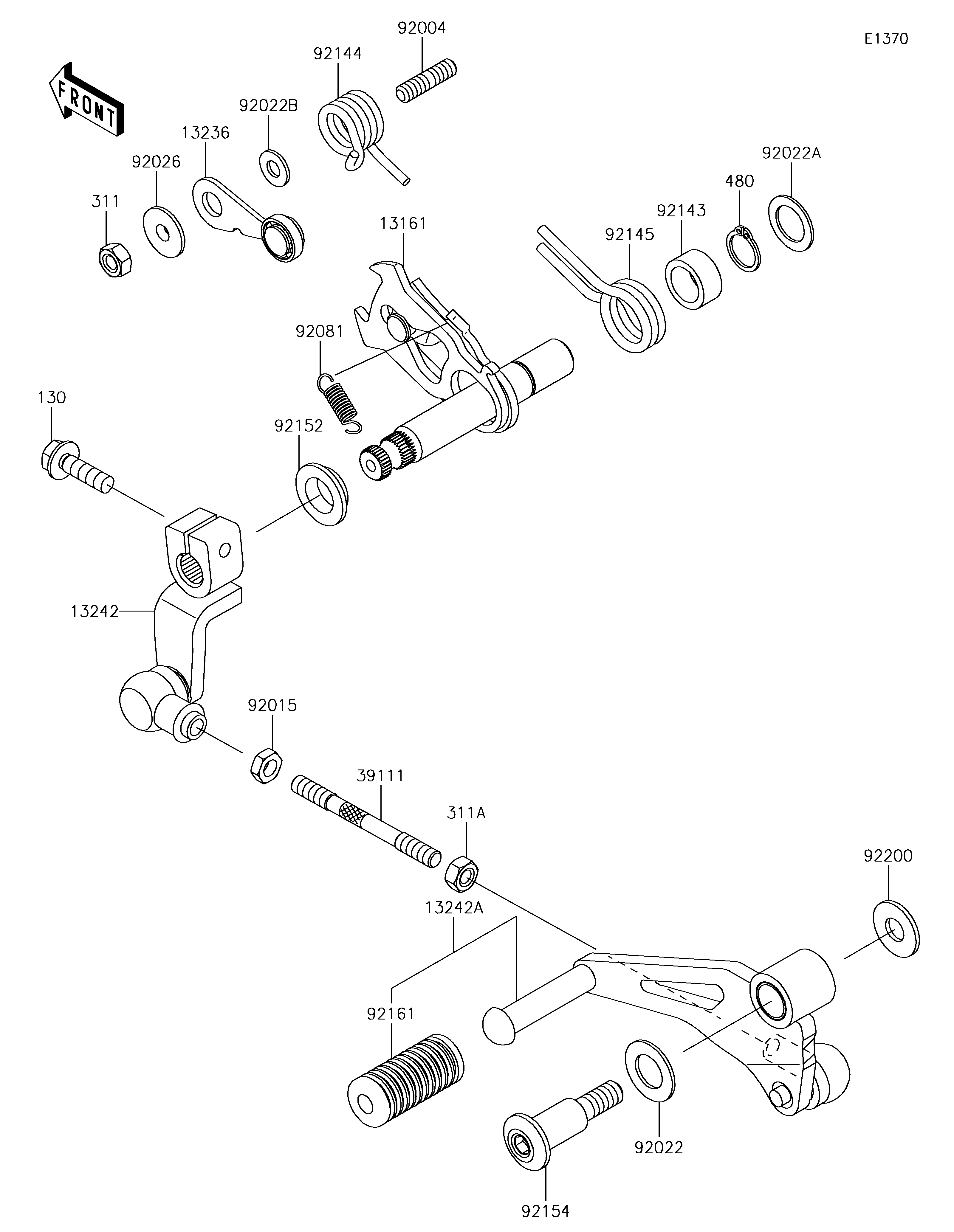

2017 Z250SL ABS - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
13161
13236
13242
13242A
311
311A
39111
480
92004
92015
92022
92022A
92022B
92026
92081
92143
92144
92145
92152
92154
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130CC0620 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0573 1
LEVER-COMP,POSITION 13236 13236-0170 1
LEVER-ASSY-CHANGE 13242 13242-0105 1
LEVER-ASSY-CHANGE,PEDAL 13242A 13242-0106 1
NUT-HEX,6MM 311 311BA0600 1
NUT-HEX,6MM 311A 311BB0600 1
ROD-TIE 39111 39111-0320 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
STUD,6X12 92004 92004-0032 1
NUT,LEFT HANDED,6MM 92015 92015-1178 1
WASHER,12.5X22X1.2 92022 92022-072 1
WASHER,13.3X20X1 92022A 92022-1496 1
WASHER,6X12.8X1.2 92022B 92022-1827 1
SPACER 92026 92026-1217 1
SPRING,CHANGE LEVER 92081 92081-076 1
COLLAR 92143 92143-1148 1
SPRING 92144 92144-1695 1
SPRING,RETURN 92145 92145-0973 1
COLLAR 92152 92152-1794 1
BOLT 92154 92154-1305 1
DAMPER,CHANGE PEDAL 92161 92161-1300 1
WASHER,8.5X20X1.6 92200 92200-0490 1
