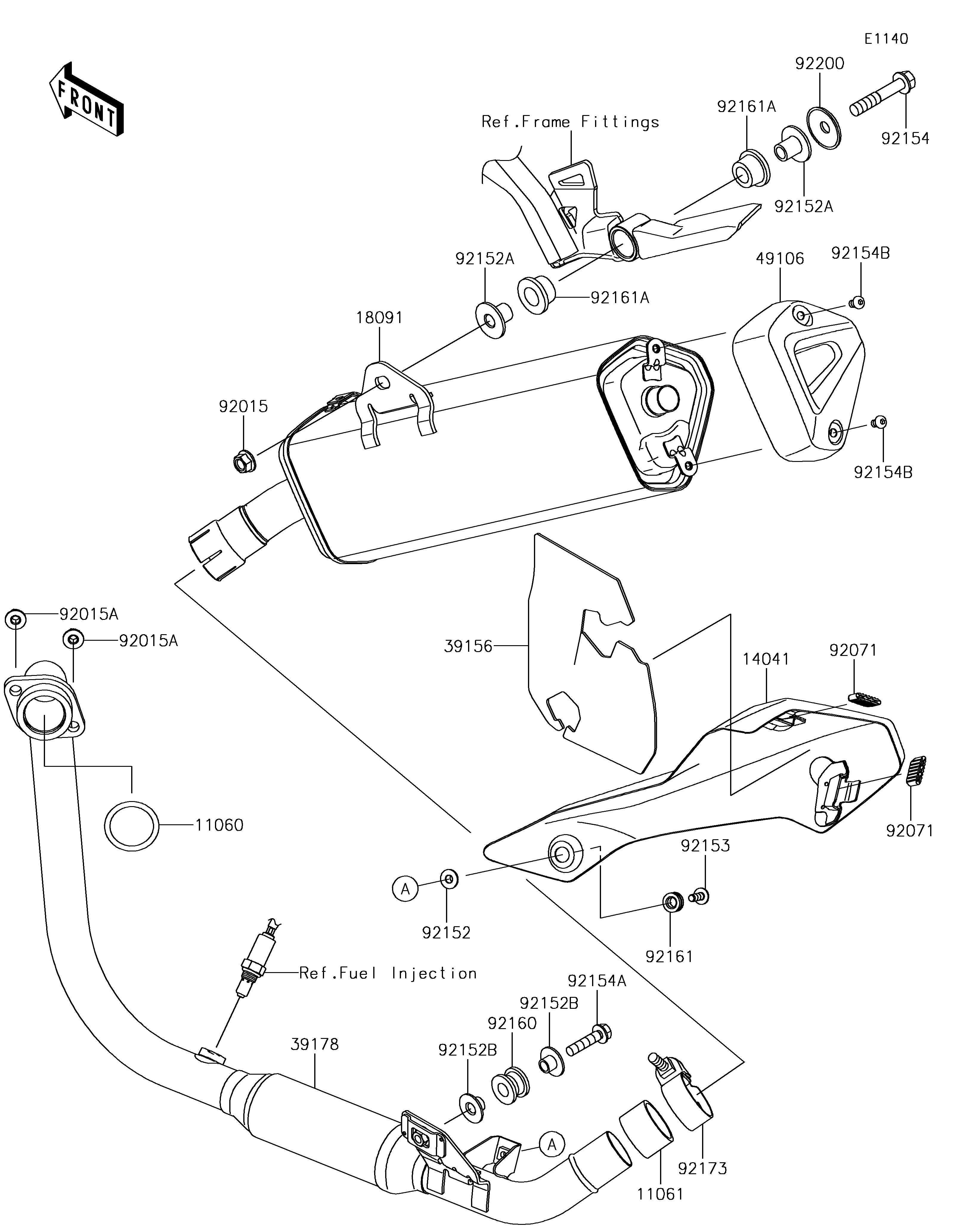

2017 Z250SL ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11061
14041
18091
39156
39178
49106
92015
92015A
92015A
92071
92071
92152
92152A
92152A
92152B
92152B
92153
92154
92154A
92154B
92154B
92160
92161
92161A
92161A
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11060 11060-1203 1
GASKET,EXHAUST PIPE CONNECTING 11061 11061-0432 1
COVER-COMP 14041 14041-0570 1
BODY-COMP-MUFFLER 18091 18091-0956 1
PAD 39156 39156-1748 1
MANIFOLD-COMP-EXHAUST 39178 39178-0213 1
COVER-MUFFLER,END 49106 49106-0743 1
NUT,FLANGED,10MM 92015 92015-1387 1
NUT,8MM 92015A 92015-1432 2
GROMMET 92071 92071-0727 2
COLLAR,6.3X8.3X16 92152 92152-0286 1
COLLAR 92152A 92152-1682 2
COLLAR 92152B 92152-1692 2
BOLT,SOCKET,6X16 92153 92153-0817 1
BOLT,FLANGED,10X55 92154 92154-0070 1
BOLT,FLANGED,8X35 92154A 92154-1298 1
BOLT,SOCKET,6X10 92154B 92154-1726 2
DAMPER,MUFFLER MOUNT 92160 92160-1116 1
DAMPER 92161 92161-1475 1
DAMPER 92161A 92161-1497 2
CLAMP,42MM 92173 92173-0942 1
WASHER 92200 92200-0904 1
