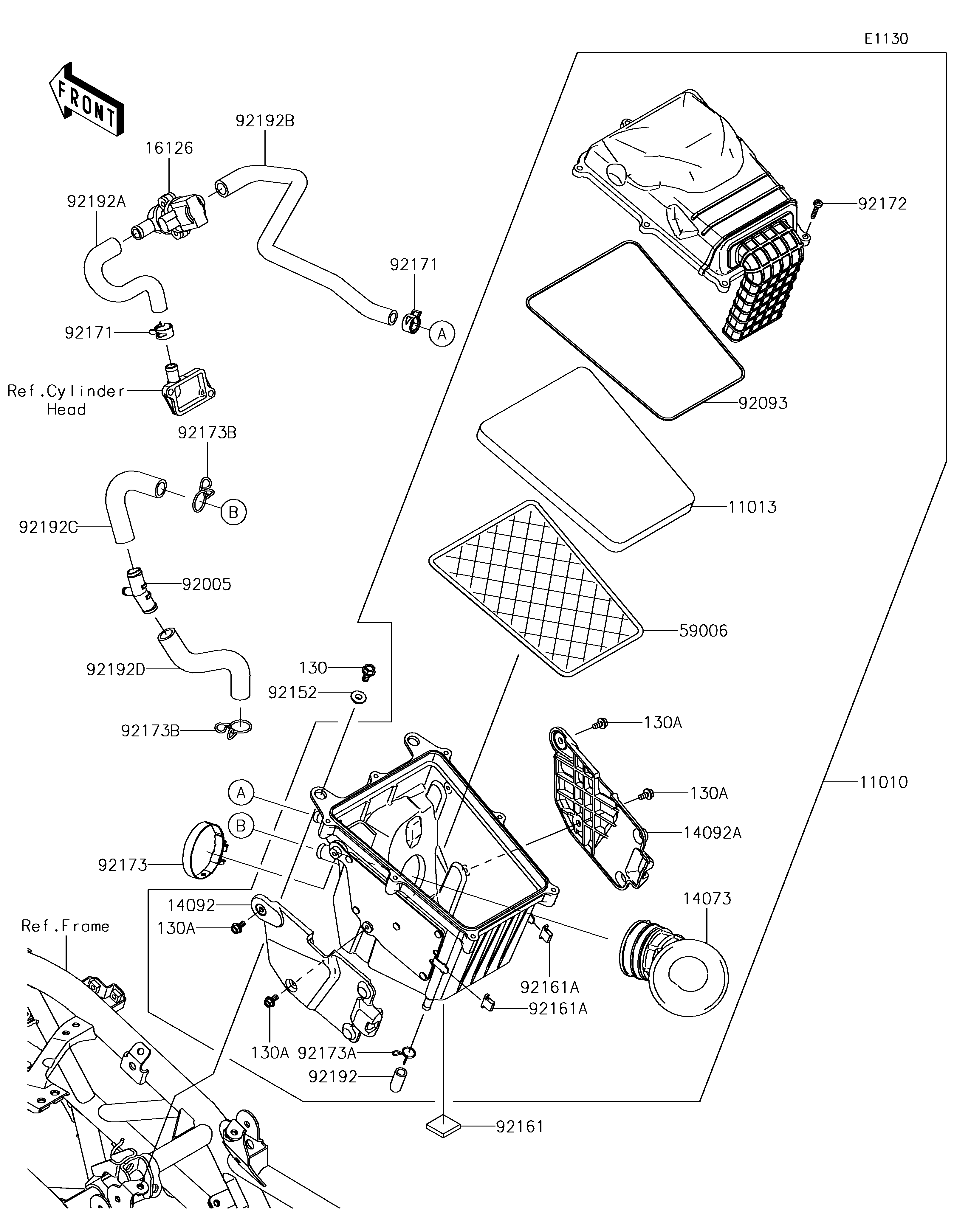

2017 Z250SL ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
130
130A
130A
130A
130A
14073
14092
14092A
16126
59006
92005
92093
92152
92161
92161A
92161A
92171
92171
92172
92173
92173A
92173B
92173B
92192
92192A
92192B
92192C
92192D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0773 1
ELEMENT-AIR FILTER 11013 11013-0739 1
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,5X10 130A 130BB0510 4
DUCT,THROTTLE BODY 14073 14073-0776 1
COVER,LH 14092 14092-1146 1
COVER,RH 14092A 14092-1147 1
VALVE,AIR SWITCHING 16126 16126-0718 1
ARRESTER-FLAME 59006 59006-0016 1
FITTING 92005 92005-1373 1
SEAL 92093 92093-0603 1
COLLAR 92152 92152-1864 2
DAMPER,25X25X5 92161 92161-1596 1
DAMPER 92161A 92161-1626 2
CLAMP 92171 92171-1888 2
SCREW,TAPPING,5X25 92172 92172-0851 7
CLAMP,58MM 92173 92173-0927 1
CLAMP,11.6MM 92173A 92173-1107 1
CLAMP,20MM 92173B 92173-1188 2
TUBE,DRAIN 92192 92192-1292 1
TUBE,CAP-ASWV 92192A 92192-1293 1
TUBE,ASWV-AIR CLEANER 92192B 92192-1294 1
TUBE,FITTING-AIR FILTER 92192C 92192-1307 1
TUBE,CRANKCASE-FITTING 92192D 92192-1308 1
