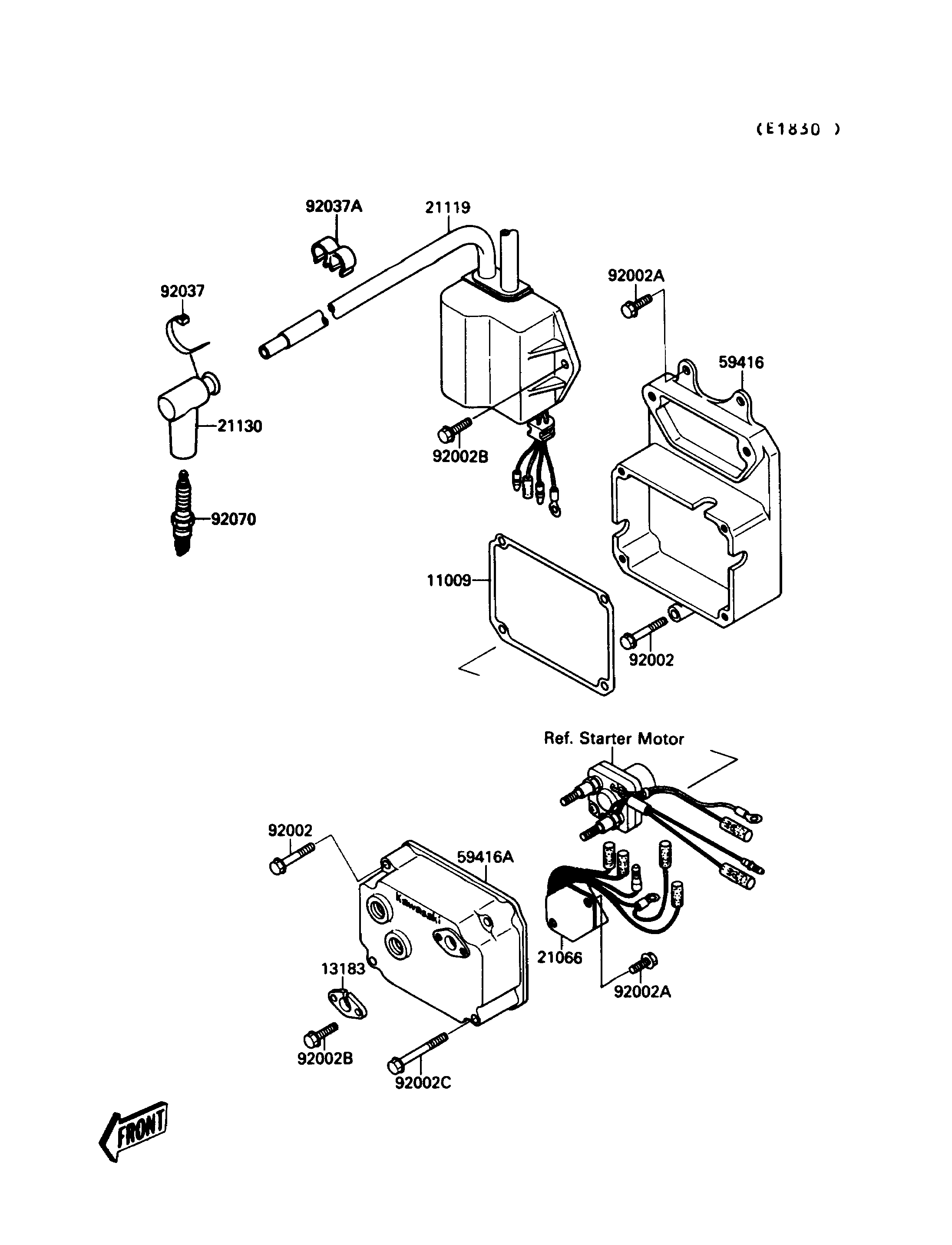

Parts Diagrams |
11009
13183
21066
21119
21130
59416
59416A
92002
92002
92002A
92002A
92002B
92002B
92002C
92037
92037A
92070
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,ELECTRIC CASE | 11009 | 11009-3733 | 1 | ||
| PLATE | 13183 | 13183-3712 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-3703 | 1 | ||
| IGNITER | 21119 | 21119-3711 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1062 | 2 | ||
| CASE-ELECTRIC,RR | 59416 | 59416-3707 | 1 | ||
| CASE-ELECTRIC,FR | 59416A | 59416-3708 | 1 | ||
| BOLT,6X40 | 92002 | 92002-3716 | 3 | ||
| BOLT,6X16 | 92002A | 92002-3728 | 4 | ||
| BOLT,6X20 | 92002B | 92002-3755 | 4 | ||
| BOLT,6X55 | 92002C | 92002-3772 | 2 | ||
| CLAMP | 92037 | 92037-1173 | 2 | ||
| CLAMP,HOSE | 92037A | 92037-1603 | 1 | ||
| PLUG-SPARK,BR7ES(NGK) | 92070 | 92070-3701 | 2 |
