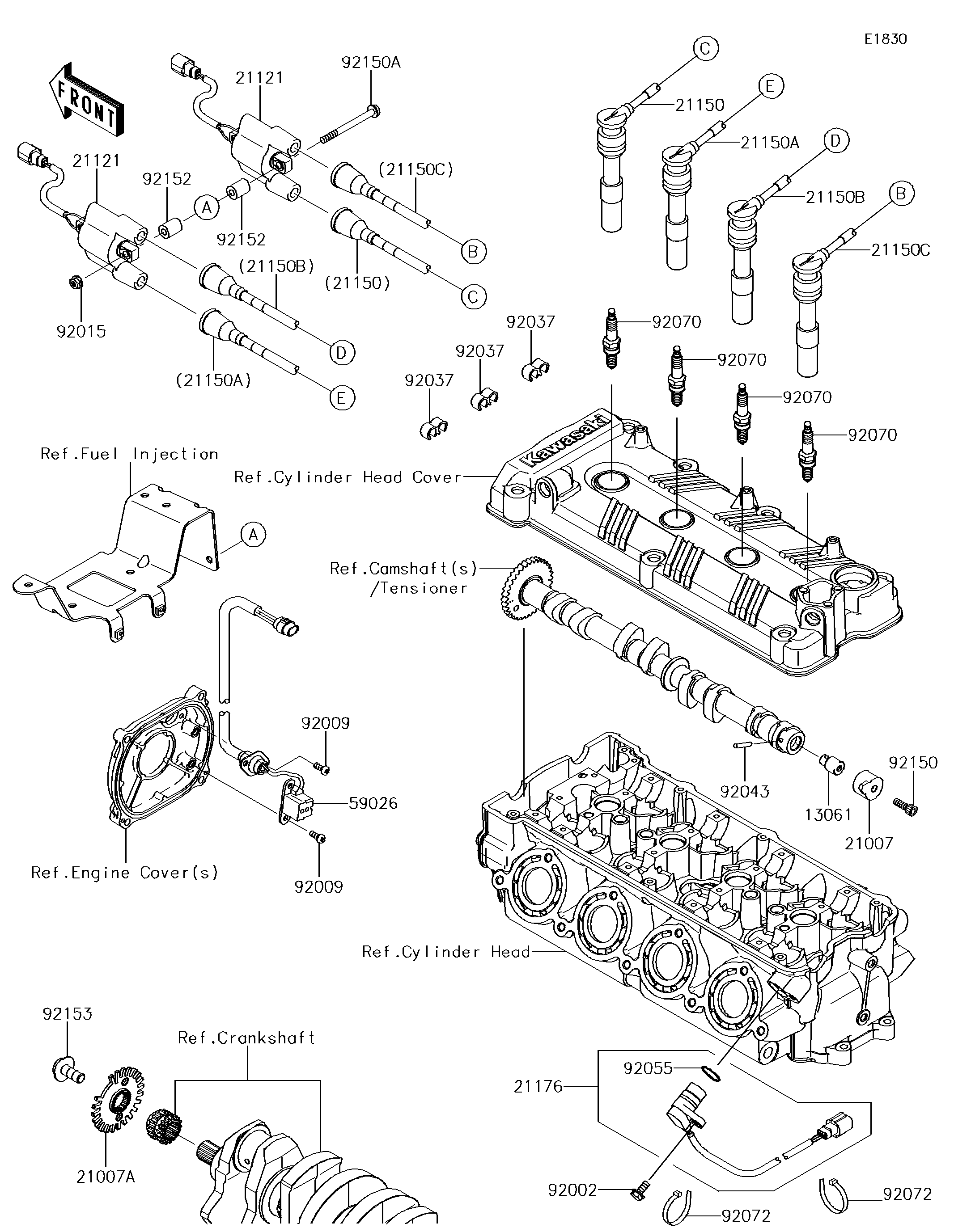

2018 JET SKI® ULTRA® 310R - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
13061
21007
21007A
21121
21121
21150
21150A
21150B
21150C
21176
59026
92002
92009
92009
92015
92037
92037
92037
92043
92055
92070
92070
92070
92070
92072
92072
92150
92150A
92152
92152
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS,CAM SENSOR 13061 13061-1687 1
ROTOR,EX CAM 21007 21007-3742 1
ROTOR,PULSING 21007A 21007-3747 1
COIL-IGNITION 21121 21121-0720 2
CORD-ASSY,#1,L=340 21150 21150-0006 1
CORD-ASSY,#2,L=450 21150A 21150-0007 1
CORD-ASSY,#3,L=540 21150B 21150-0008 1
CORD-ASSY,#4,L=600 21150C 21150-0009 1
SENSOR,CAM ANGLE 21176 21176-1077 1
COIL-PULSING 59026 59026-3702 1
BOLT,6X16 92002 92002-3728 1
SCREW,5X12 92009 92009-1296 4
NUT,6MM 92015 92015-3767 2
CLAMP,CORD 92037 92037-1603 3
PIN 92043 92043-1575 1
RING-O 92055 92055-1639 1
PLUG-SPARK,PMR9B(NGK) 92070 92070-3707 4
BAND,L=188.85 92072 92072-0105 2
BOLT,6X18 92150 92150-1645 1
BOLT,6X70 92150A 92150-3753 2
COLLAR 92152 92152-3738 4
BOLT,FLANGED,8X23 92153 92153-0549 1
