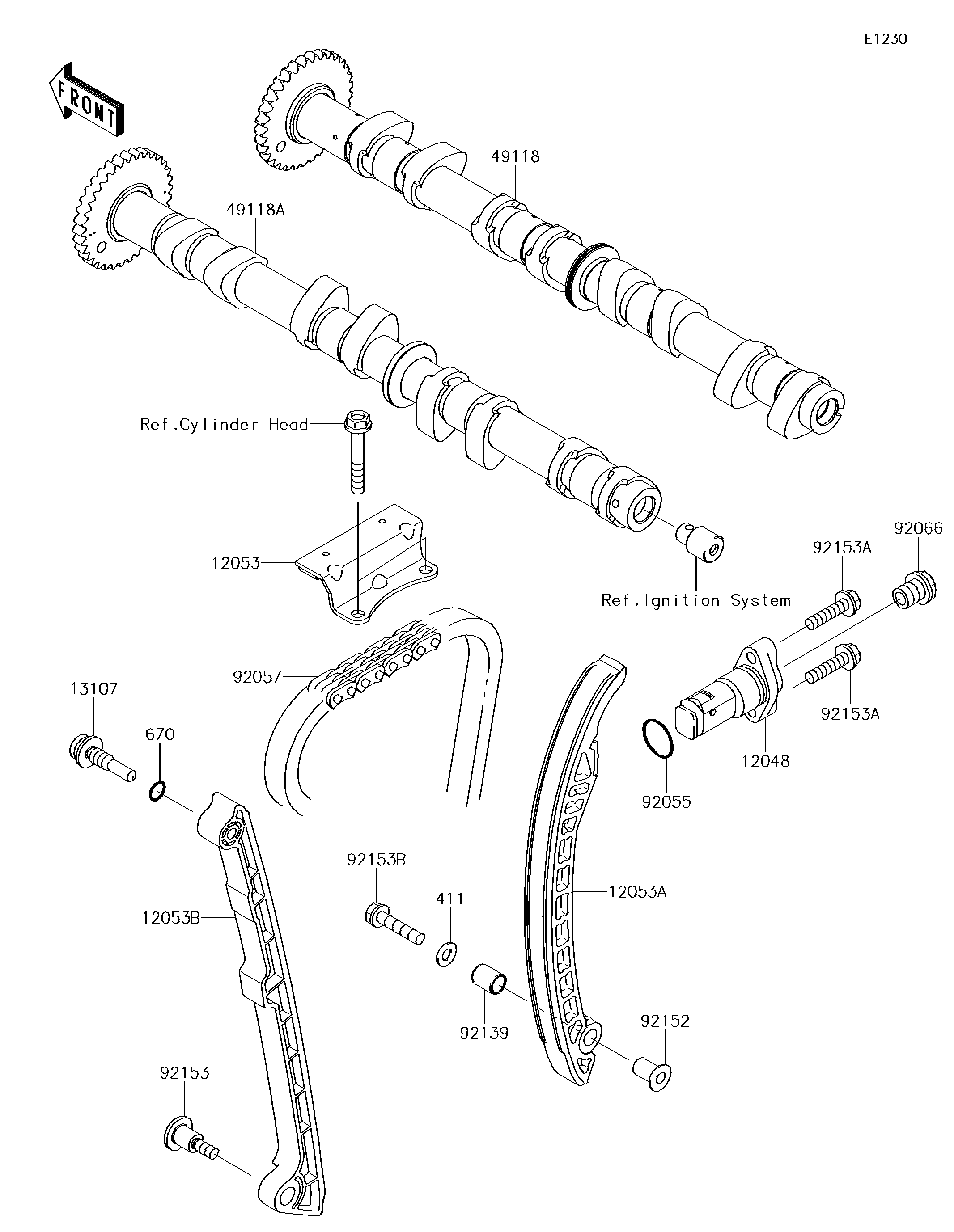

2018 JET SKI® ULTRA® 310R - Camshaft(s)/Tensioner
12048
12053
12053A
12053B
13107
411
49118
49118A
670
92055
92057
92066
92139
92152
92153
92153A
92153A
92153B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TENSIONER-ASSY | 12048 | 12048-0081 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-1432 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-3710 | 1 | ||
| GUIDE-CHAIN,FR | 12053B | 12053-3711 | 1 | ||
| SHAFT,CHAIN GUIDE | 13107 | 13107-0157 | 1 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118 | 49118-3717 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118A | 49118-3719 | 1 | ||
| O RING,9MM | 670 | 670D1509 | 1 | ||
| RING-O,18.8X1.9 | 92055 | 92055-086 | 1 | ||
| CHAIN,98XRH2020-138L | 92057 | 92057-3715 | 1 | ||
| PLUG | 92066 | 92066-3780 | 1 | ||
| BUSHING,9X11X13.9 | 92139 | 92139-0716 | 1 | ||
| COLLAR | 92152 | 92152-0981 | 1 | ||
| BOLT,SOCKET,6X24.5 | 92153 | 92153-1200 | 1 | ||
| BOLT,6X25 | 92153A | 92153-3705 | 2 | ||
| BOLT,6X28 | 92153B | 92153-3710 | 1 |
