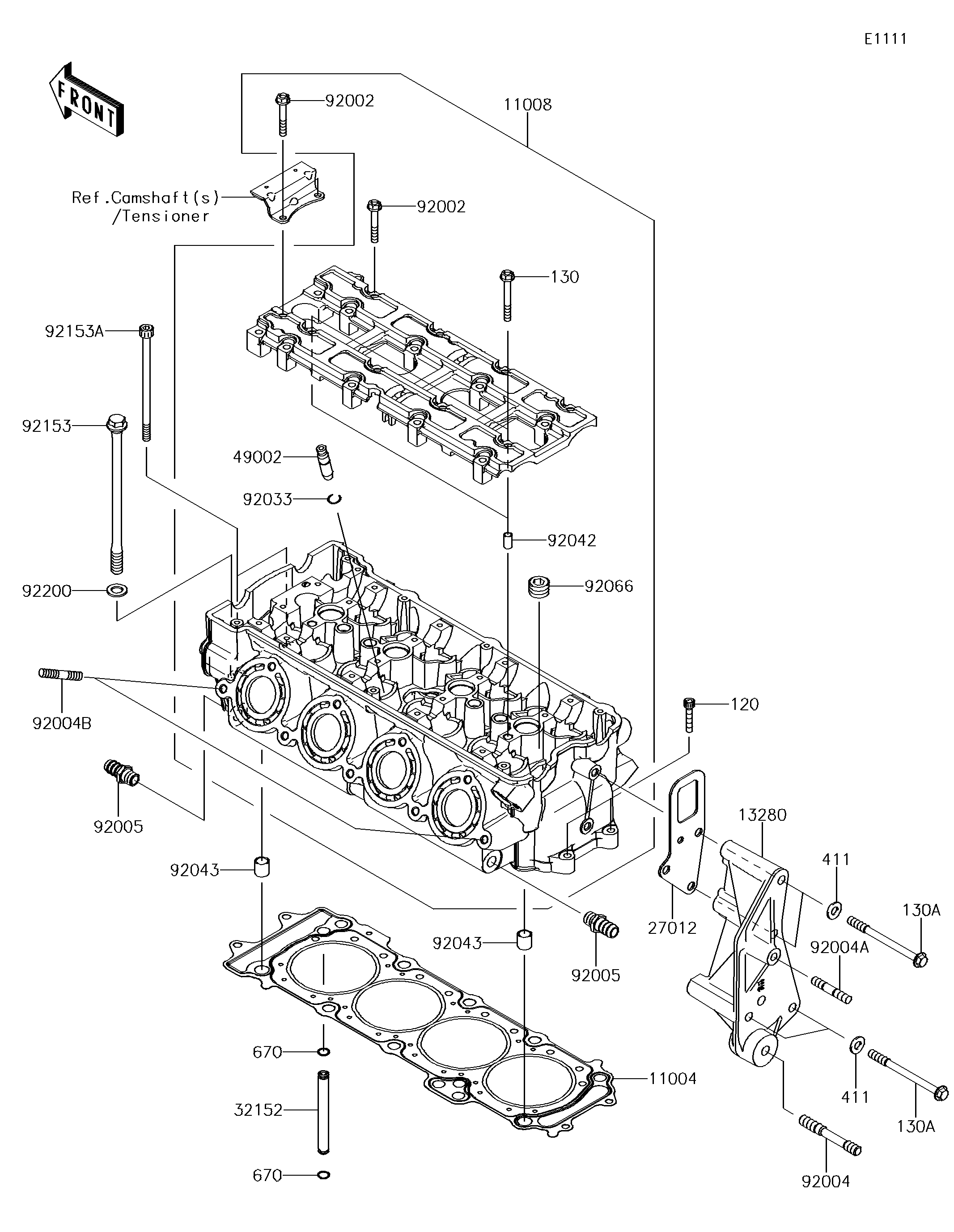

2018 JET SKI® ULTRA® 310R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
120
130
130A
130A
13280
27012
32152
411
411
49002
670
670
92002
92002
92004
92004A
92004B
92005
92005
92033
92042
92043
92043
92066
92153
92153A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0744 1
HEAD-COMP-CYLINDER 11008 11008-3710 1
BOLT-SOCKET,6X30 120 120CD0630 2
BOLT-FLANGED,6X50 130 130CD0650 2
BOLT-FLANGED,8X95 130A 130CD0895 4
HOLDER,BELT TENSIONER 13280 13280-3763 1
HOOK,ENGINE,RR 27012 27012-3863 1
PIPE,OIL 32152 32152-1544 1
WASHER-PLAIN,8MM 411 411S0800 4
GUIDE-VALVE 49002 49002-1140 16
O RING,7MM 670 670D1507 2
BOLT,6X40 92002 92002-1756 18
STUD,10X55 92004 92004-0023 1
STUD,8X33 92004A 92004-1253 1
STUD,8X30 92004B 92004-3743 2
FITTING 92005 92005-3714 2
RING-SNAP 92033 92033-1247 16
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,14X14 92043 92043-1593 2
PLUG,PT1/2X12.5 92066 92066-0002 5
BOLT,FLANGED,11X174 92153 92153-3730 10
BOLT,SOCKET,7X126 92153A 92153-3731 2
WASHER,11.2X18.2X1.8 92200 92200-0940 10
