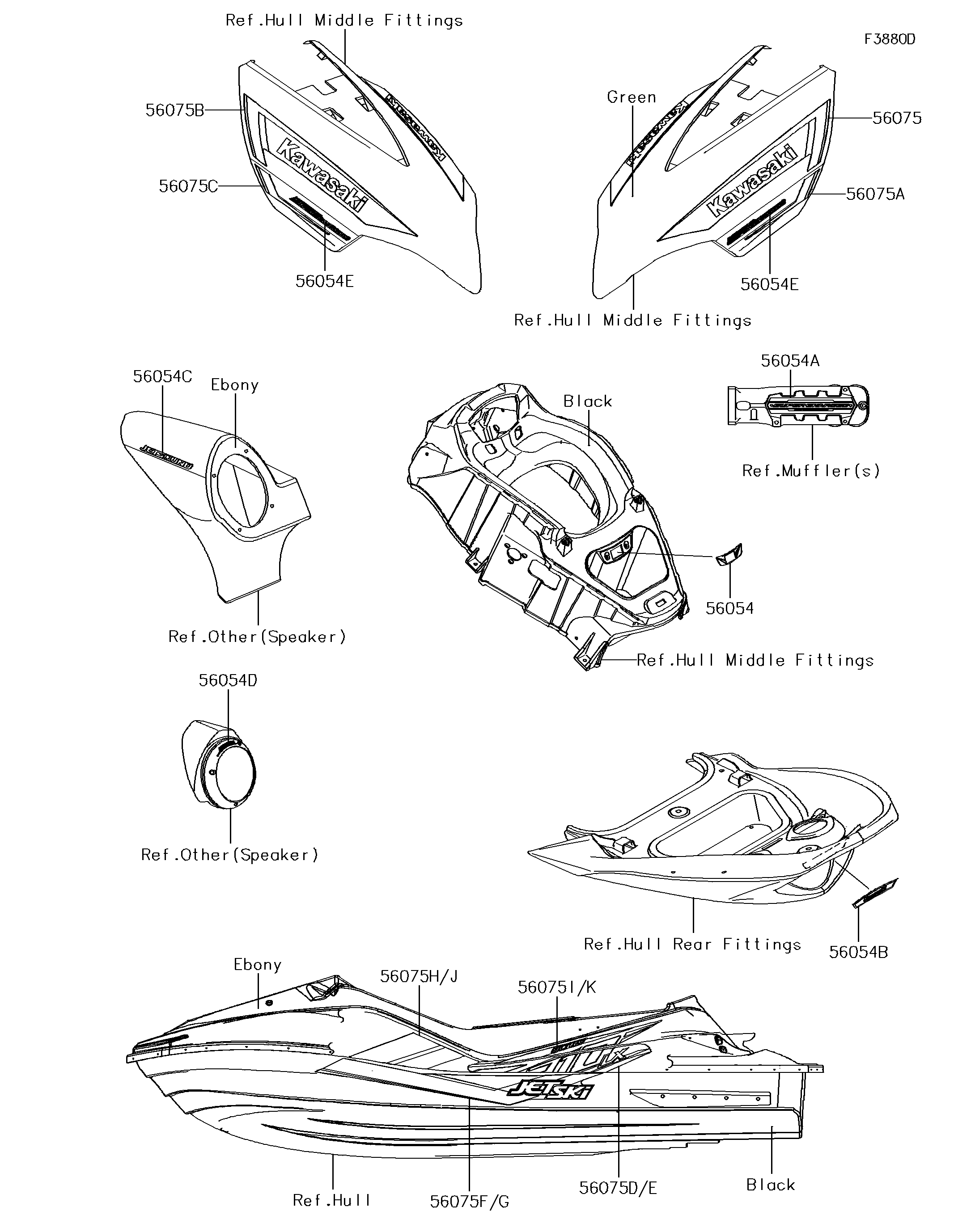

2018 JET SKI® ULTRA® 310LX - Decals(MJF)
56054
56054A
56054B
56054C
56054D
56054E
56054E
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,IMMOBILIZER | 56054 | 56054-1333 | 1 | ||
| MARK,SUPER CHARGED | 56054A | 56054-1334 | 1 | ||
| MARK,GRIP,KAWASAKI | 56054B | 56054-1335 | 1 | ||
| MARK,CASE,JETSOUND | 56054C | 56054-1368 | 2 | ||
| MARK,SPEAKER,JETSOUND | 56054D | 56054-1369 | 2 | ||
| MARK,HATCH COVER,SUPER CHARGED | 56054E | 56054-2070 | 2 | ||
| PATTERN,HATCH COVER,LH,UPP | 56075 | 56075-2106 | 1 | ||
| PATTERN,HATCH COVER,LH,LWR | 56075A | 56075-2107 | 1 | ||
| PATTERN,HATCH COVER,RH,UPP | 56075B | 56075-2108 | 1 | ||
| PATTERN,HATCH COVER,RH,LWR | 56075C | 56075-2109 | 1 | ||
| PATTERN,DECK,LH,RR,LWR | 56075D | 56075-2112 | 1 | ||
| PATTERN,DECK,RH,RR,LWR | 56075E | 56075-2115 | 1 | ||
| PATTERN,HULL,LH | 56075F | 56075-2777 | 1 | ||
| PATTERN,HULL,RH | 56075G | 56075-2778 | 1 | ||
| PATTERN,DECK,LH,FR | 56075H | 56075-2779 | 1 | ||
| PATTERN,DECK,LH,RR,UPP | 56075I | 56075-2780 | 1 | ||
| PATTERN,DECK,RH,FR | 56075J | 56075-2781 | 1 | ||
| PATTERN,DECK,RH,RR,UPP | 56075K | 56075-2782 | 1 |
| MARK,IMMOBILIZER | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SUPER CHARGED | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,GRIP,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,CASE,JETSOUND | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SPEAKER,JETSOUND | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,HATCH COVER,SUPER CHARGED | |
| REF # | 56054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,LH,UPP | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,LH,LWR | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,RH,UPP | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,RH,LWR | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,RR,LWR | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,RR,LWR | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56075G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,FR | |
| REF # | 56075H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,RR,UPP | |
| REF # | 56075I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,FR | |
| REF # | 56075J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,RR,UPP | |
| REF # | 56075K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
