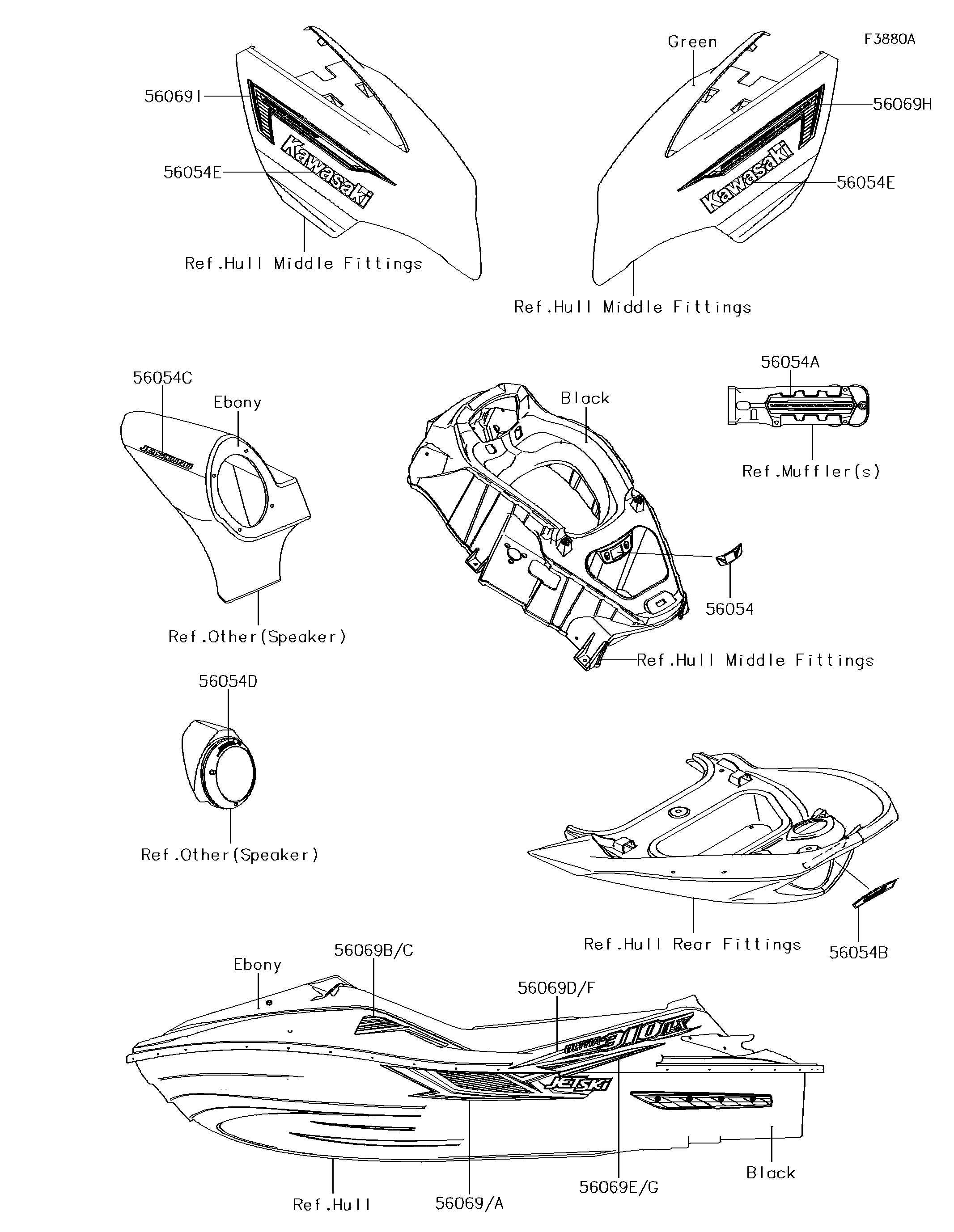

2015 JET SKI® ULTRA® 310LX - Decals(MFF)
56054
56054A
56054B
56054C
56054D
56054E
56054E
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,IMMOBILIZER | 56054 | 56054-1333 | 1 | ||
| MARK,SUPER CHARGED | 56054A | 56054-1334 | 1 | ||
| MARK,GRIP,KAWASAKI | 56054B | 56054-1335 | 1 | ||
| MARK,CASE,JETSOUND | 56054C | 56054-1368 | 2 | ||
| MARK,SPEAKER,JETSOUND | 56054D | 56054-1369 | 2 | ||
| MARK,HATCH COVER,KAWASAKI | 56054E | 56054-3750 | 2 | ||
| PATTERN,HULL,LH | 56069 | 56069-7523 | 1 | ||
| PATTERN,HULL,RH | 56069A | 56069-7524 | 1 | ||
| PATTERN,DECK,FR,LH | 56069B | 56069-7525 | 1 | ||
| PATTERN,DECK,FR,RH | 56069C | 56069-7526 | 1 | ||
| PATTERN,DECK,RR,LH,UPP | 56069D | 56069-7527 | 1 | ||
| PATTERN,DECK,RR,LH,LWR | 56069E | 56069-7528 | 1 | ||
| PATTERN,DECK,RR,RH,UPP | 56069F | 56069-7529 | 1 | ||
| PATTERN,DECK,RR,RH,LWR | 56069G | 56069-7530 | 1 | ||
| PATTERN,HATCH COVER,LH | 56069H | 56069-7531 | 1 | ||
| PATTERN,HATCH COVER,RH | 56069I | 56069-7532 | 1 |
| MARK,IMMOBILIZER | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SUPER CHARGED | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,GRIP,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,CASE,JETSOUND | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SPEAKER,JETSOUND | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,HATCH COVER,KAWASAKI | |
| REF # | 56054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH,UPP | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH,LWR | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH,UPP | |
| REF # | 56069F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH,LWR | |
| REF # | 56069G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,LH | |
| REF # | 56069H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,RH | |
| REF # | 56069I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
