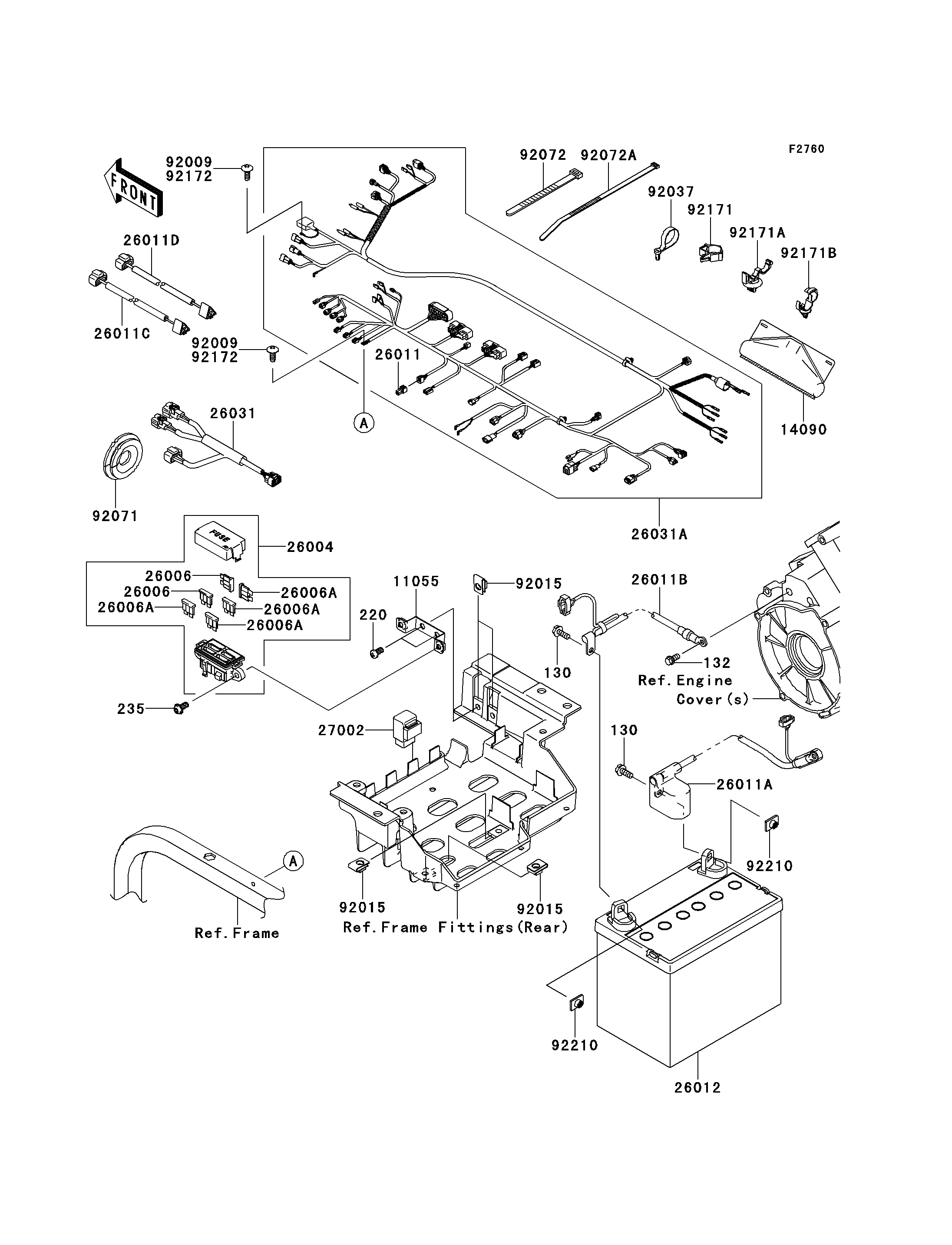

2012 TERYX® 750 FI 4x4 LE SGE - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
220
235
11055
14090
26004
26006
26006
26006A
26006A
26006A
26006A
26011
26011A
26011B
26011C
26011D
26012
26031
26031A
27002
92015
92015
92015
92037
92071
92072
92072A
92171
92171A
92171B
92172
92172
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 2
BOLT-FLANGED-SMALL,6X12 132 132BD0612 1
SCREW-PAN-CROS,6X12 220 220AA0612 2
SCREW-PAN-WP-CROS,6X14 235 235AA0614 2
BRACKET,FUSE&CONTROL UNIT 11055 11055-1391 1
COVER,COUPLER 14090 14090-1331 1
FUSE-ASSY 26004 26004-0016 1
FUSE,BLADE,30A,GREEN 26006 26006-0004 2
FUSE,BLADE,10A,RED 26006A 26006-0005 4
WIRE-LEAD 26011 26011-0037 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0190 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0231 1
WIRE-LEAD,HEAD LAMP,LH 26011C 26011-0276 1
WIRE-LEAD,HEAD LAMP,RH 26011D 26011-0277 1
BATTERY,12V 14AH 26012 26012-0107 1
HARNESS,SUB 26031 26031-0752 1
HARNESS,MAIN 26031A 26031-0931 1
RELAY-ASSY 27002 27002-1062 1
NUT,6MM 92015 92015-1602 4
CLAMP,SPEED,L=80.5 92037 92037-1903 5
GROMMET 92071 92071-0030 1
BAND,L=123 92072 92072-030 1
BAND,L=292.1 92072A 92072-3509 19
CLAMP,BRAKE HOSE 92171 92171-0316 2
CLAMP 92171A 92171-0453 11
CLAMP,DIA=13 92171B 92171-1415 9
SCREW,TAPPING,6X16 92172 92172-0739 2
NUT,PLATE,6MM 92210 92210-1352 2
