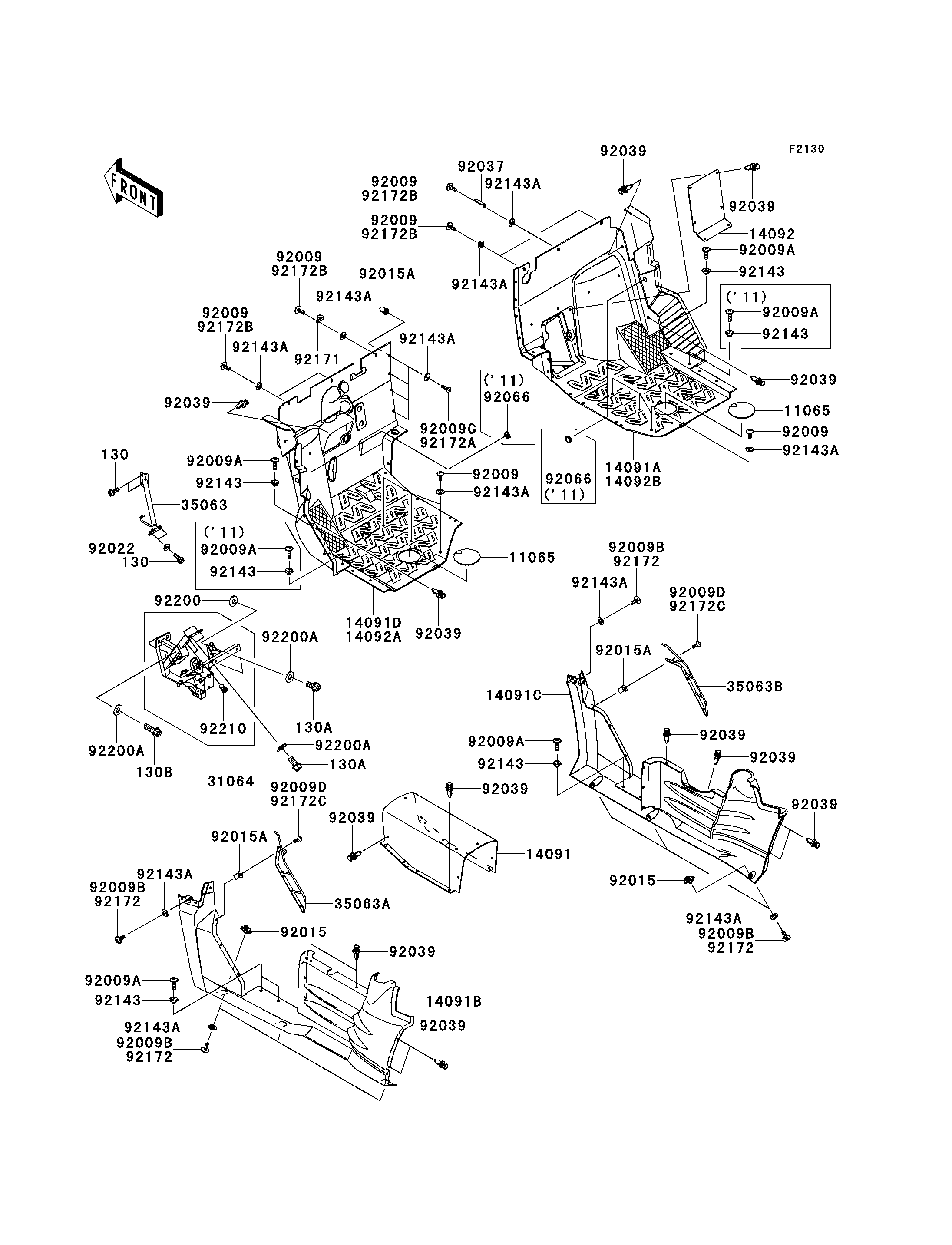

2012 TERYX® 750 FI 4x4 LE SGE - Frame Fittings(Front)
130
130
130A
130A
130B
11065
11065
14091
14091B
14091C
14092
14092A
14092B
31064
35063
35063A
35063B
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92015A
92022
92037
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92171
92172
92172
92172
92172
92172A
92172B
92172B
92172B
92172B
92172C
92172C
92200
92200A
92200A
92200A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X18 | 130 | 130BA0618 | 4 | ||
| BOLT-FLANGED,10X20 | 130A | 130CA1020 | 4 | ||
| BOLT-FLANGED,10X30 | 130B | 130CB1030 | 2 | ||
| CAP | 11065 | 11065-0267 | 2 | ||
| COVER,CENTER,F.BLACK | 14091 | 14091-0696-6Z | 1 | ||
| COVER,SIDE,LH,F.BLACK | 14091B | 14091-1686-6Z | 1 | ||
| COVER,SIDE,RH,F.BLACK | 14091C | 14091-1687-6Z | 1 | ||
| COVER,RESERV. TANK,F.BLACK | 14092 | 14092-0079-6Z | 1 | ||
| COVER,FLOOR,LH | 14092A | 14092-0898 | 1 | ||
| COVER,FLOOR,RH | 14092B | 14092-0899 | 1 | ||
| PIPE-COMP | 31064 | 31064-0172 | 1 | ||
| STAY,MASTER CYLINDER | 35063 | 35063-0518 | 1 | ||
| STAY,SIDE COVER,LH | 35063A | 35063-0544 | 1 | ||
| STAY,SIDE COVER,RH | 35063B | 35063-0545 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 6 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 6 | ||
| NUT | 92015 | 92015-1487 | 6 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 10 | ||
| WASHER,6.2X15.0X1.2 | 92022 | 92022-2373 | 2 | ||
| CLAMP,HARNESS | 92037 | 92037-1316 | 1 | ||
| RIVET | 92039 | 92039-1229 | 32 | ||
| COLLAR | 92143 | 92143-1057 | 6 | ||
| COLLAR | 92143A | 92143-1087 | 24 | ||
| CLAMP | 92171 | 92171-1279 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0236 | 8 | ||
| SCREW,5X18 | 92172A | 92172-0504 | 4 | ||
| SCREW,TAPPING,6X16 | 92172B | 92172-0739 | 6 | ||
| SCREW,5X20 | 92172C | 92172-2081 | 6 | ||
| WASHER,10X22X3.2 | 92200 | 92200-0121 | 2 | ||
| WASHER,10.3X23X1.6 | 92200A | 92200-2009 | 6 | ||
| NUT,POP,6MM,L=15 | 92210 | 92210-1397 | 2 |
| BOLT-FLANGED,6X18 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X30 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER,F.BLACK | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,LH,F.BLACK | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,RH,F.BLACK | |
| REF # | 14091C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RESERV. TANK,F.BLACK | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,LH | |
| REF # | 14092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,RH | |
| REF # | 14092B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MASTER CYLINDER | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,SIDE COVER,LH | |
| REF # | 35063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,SIDE COVER,RH | |
| REF # | 35063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X15.0X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 32 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X18 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92172B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20 | |
| REF # | 92172C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X22X3.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.3X23X1.6 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
