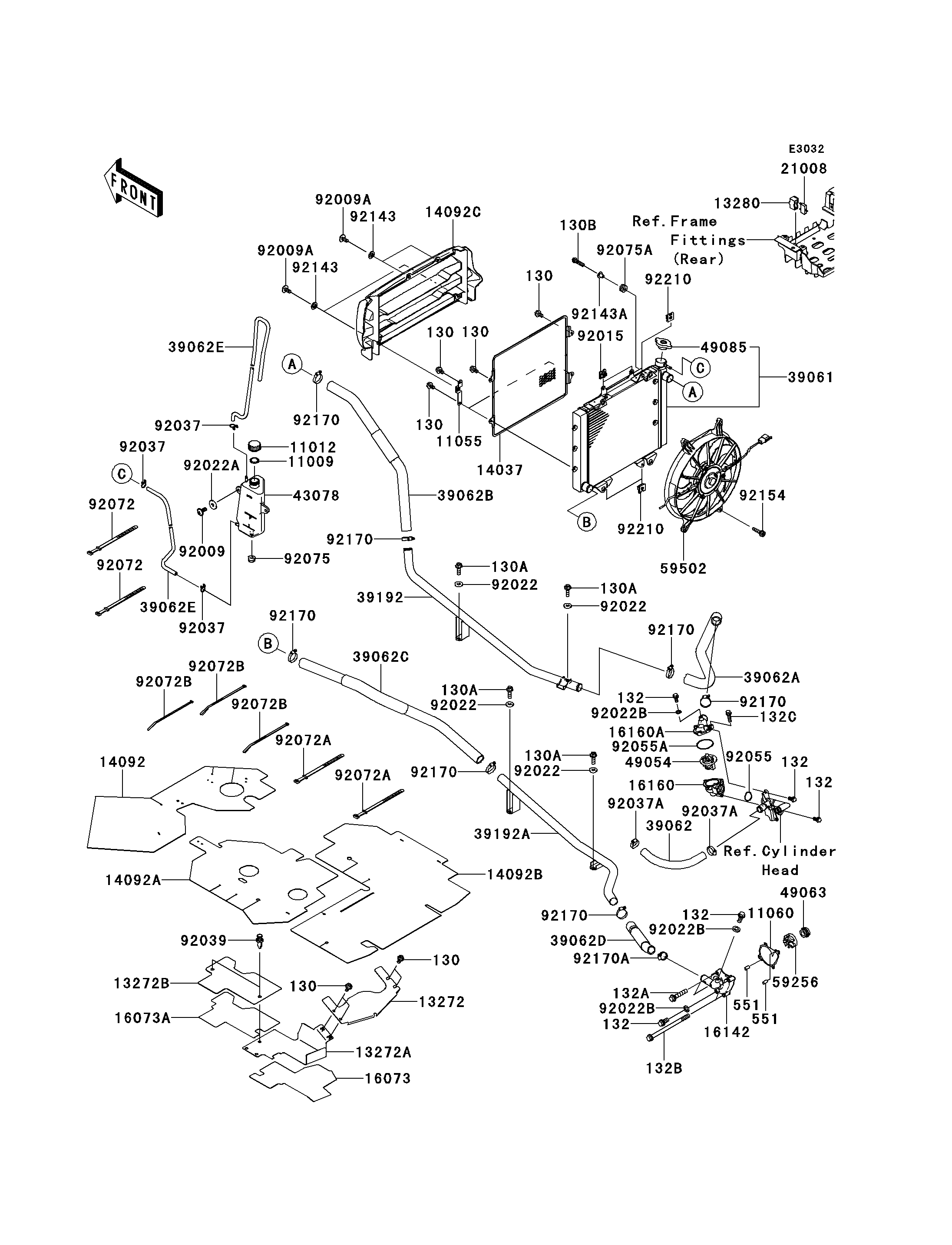

2012 TERYX® 750 FI 4x4 LE SGE - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11055
11055
11060
11060
13272
13272
13272A
13272A
13272B
13272B
13280
13280
14037
14037
14092
14092
14092A
14092A
14092B
14092B
14092C
14092C
16073
16073
16073A
16073A
16142
16142
16160
16160
16160A
16160A
21008
21008
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062E
39062E
39192
39192
39192A
39192A
43078
43078
49054
49054
49063
49063
49085
49085
59256
59256
59502
59502
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92022B
92022B
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
132
132
132
132
132
132
132
132
132
132
132A
132A
132B
132B
132C
132C
551
551
551
551
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92039
92039
92055
92055
92055A
92055A
92072
92072
92072
92072
92072A
92072A
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92075
92075
92075A
92075A
92143
92143
92143
92143
92143A
92143A
92154
92154
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,RAD. COVER 11055 11055-1953 2
GASKET,WATER PUMP 11060 11060-1964 1
PLATE 13272 13272-0729 1
PLATE 13272A 13272-0738 1
PLATE 13272B 13272-0739 1
HOLDER,BREAKER 13280 13280-0082 1
SCREEN 14037 14037-0104 1
COVER 14092 14092-0083 1
COVER 14092A 14092-0084 1
COVER 14092B 14092-0085 1
COVER,RADIATOR,F.BLACK 14092C 14092-0086-6Z 1
INSULATOR 16073 16073-0110 1
INSULATOR 16073A 16073-0111 1
COVER-PUMP,WATER 16142 16142-0002 1
BODY,THERMOSTAT,LWR 16160 16160-0189 1
BODY,THERMOSTAT,UPP 16160A 16160-0225 1
BREAKER,RAD. FAN,12A 21008 21008-0008 1
RADIATOR-ASSY 39061 39061-0180 1
HOSE-COOLING,FR HEAD-THERMO 39062 39062-0316 1
HOSE-COOLING,THERMO-RH PIPE 39062A 39062-0317 1
HOSE-COOLING,RH PIPE-RAD. 39062B 39062-0318 1
HOSE-COOLING,RAD.-LH PIPE 39062C 39062-0319 1
HOSE-COOLING,RAD.-W/P 39062D 39062-0320 1
HOSE-COOLING,5.5X10.5X400 39062E 39062-0324 2
PIPE-WATER,RH 39192 39192-0121 1
PIPE-WATER,LH 39192A 39192-0122 1
RESERVOIR 43078 43078-0041 1
THERMOSTAT 49054 49054-1055 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
CAP-ASSY-PRESSURE 49085 49085-0005 1
IMPELLER 59256 59256-1069 1
FAN-ASSY 59502 59502-0047 1
SCREW,6X16 92009 92009-1621 1
SCREW,6X14 92009A 92009-1662 4
NUT 92015 92015-1487 2
WASHER,6.5X16X2 92022 92022-1342 4
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 1
WASHER,6.2X11X1 92022B 92022-304 3
BOLT-FLANGED,6X10 130 130BB0610 10
BOLT-FLANGED,6X20 130A 130BB0620 4
BOLT-FLANGED,6X25 130B 130BB0625 4
BOLT-FLANGED-SMALL,6X12 132 132BD0612 5
BOLT-FLANGED-SMALL,6X30 132A 132BD0630 2
BOLT-FLANGED-SMALL,6X90 132B 132BD0690 2
BOLT-FLANGED-SMALL,6X20 132C 132E0620 3
PIN-DOWEL,4X8 551 551A0408 2
CLAMP,TUBE 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1589 2
RIVET 92039 92039-1229 2
RING-O,22.1X2.4 92055 92055-1081 1
RING-O,44.7X2.4 92055A 92055-1279 1
BAND,L=218 92072 92072-032 2
BAND,L=186 92072A 92072-056 2
BAND,L=292.1 92072B 92072-3509 3
DAMPER,RUBBER 92075 92075-1123 1
DAMPER 92075A 92075-209 4
COLLAR 92143 92143-1087 4
COLLAR 92143A 92143-1353 4
BOLT 92154 92154-0338 4
CLAMP,COOLING HOSE 92170 92170-1284 7
CLAMP 92170A 92170-1497 1
NUT 92210 92210-1323 4
