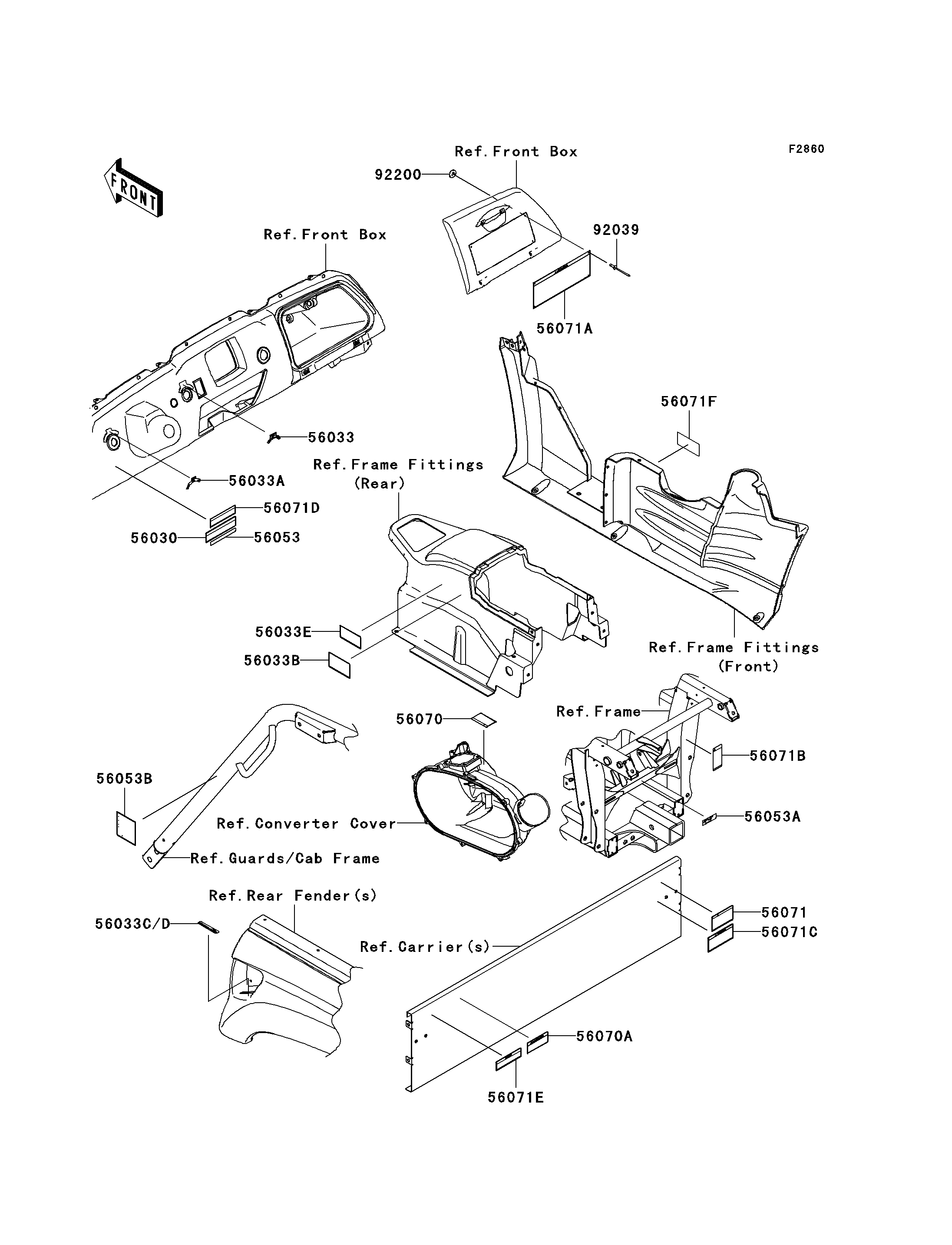

2010 Teryx 750 FI 4X4 (SGE) - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56033
56033A
56033B
56033C
56033D
56033E
56053
56053A
56053B
56070
56070A
56071
56071A
56071B
56071C
56071D
56071E
56071F
92039
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,PARKING LEVER 56030 56030-0213 1
LABEL-MANUAL,MAIN SWITCH 56033 56033-0190 1
LABEL-MANUAL,HEAD LAMP SWITCH 56033A 56033-0228 1
LABEL-MANUAL,DRIVE BELT 56033B 56033-0236 1
LABEL-MANUAL,CARRIER LEVER,LH 56033C 56033-0290 1
LABEL-MANUAL,CARRIER LEVER,RH 56033D 56033-0291 1
LABEL-MANUAL,AIR CLEANER 56033E 56033-0347 1
LABEL-SPECIFICATION 56053 56053-0278 1
LABEL,TRAILER HITCH 56053A 56053-0348 1
LABEL-SPECIFICATION,TIRE INFO 56053B 56053-0502 1
LABEL-WARNING,CVT COVER 56070 56070-1269 1
LABEL-WARNING,BED RAISED 56070A 56070-7515 1
LABEL-WARNING 56071 56071-0048 1
LABEL-WARNING,SERIOUS INJURY 56071A 56071-0068 1
LABEL-WARNING,TRAILER HITCH 56071B 56071-0099 1
LABEL-WARNING,CARGO BED 56071C 56071-0113 1
LABEL-WARNING,SHIFT CAUTION 56071D 56071-0128 1
LABEL-WARNING,CARGO BED NOTICE 56071E 56071-0146 1
LABEL-WARNING,GASOLINE 56071F 56071-7501 1
RIVET,3.2X8 92039 92039-3763 4
WASHER,3.5X8X1 92200 92200-1251 4
