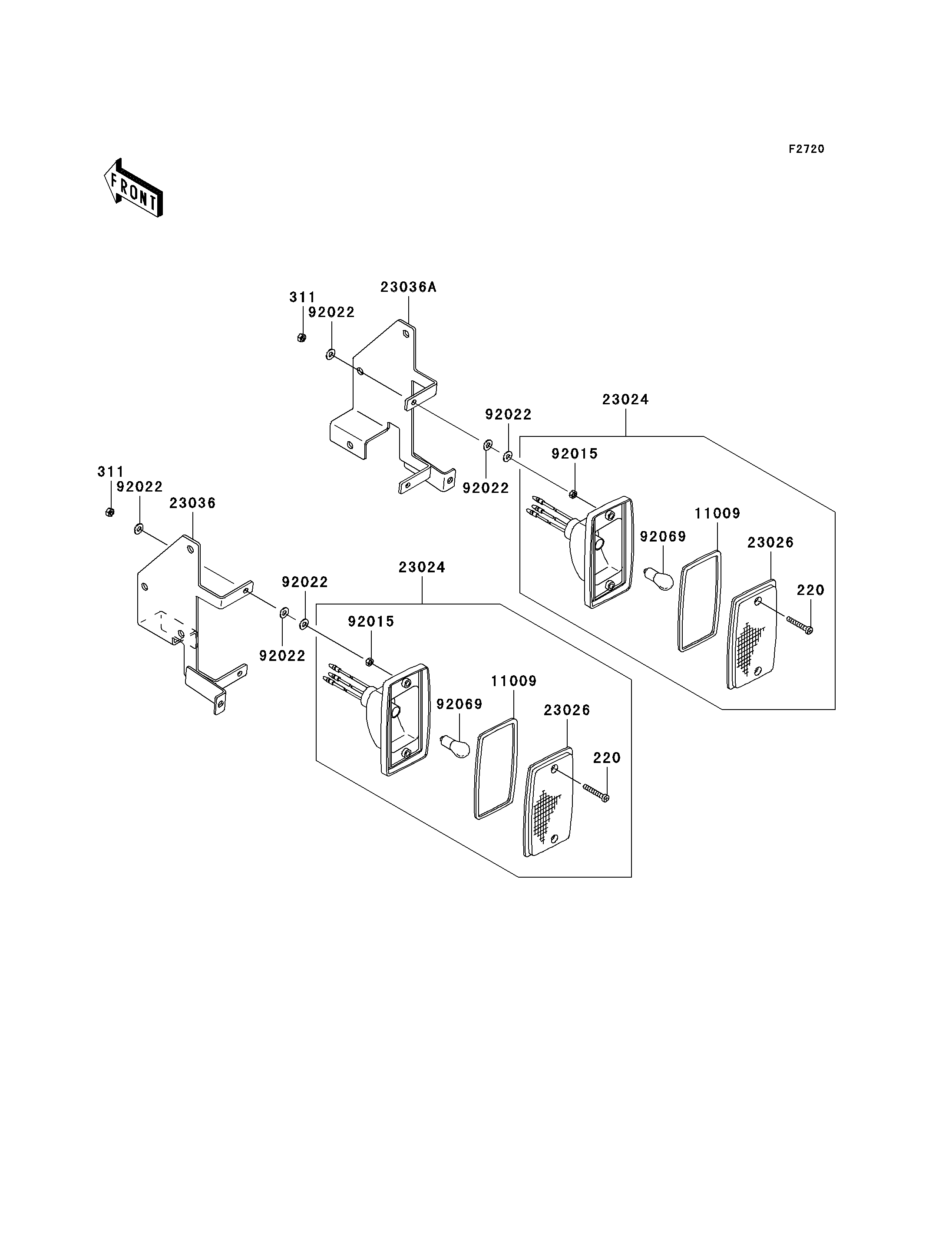

2010 Teryx 750 FI 4X4 (SGE) - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
220
220
311
311
11009
11009
23024
23024
23026
23026
23036
23036A
92015
92015
92022
92022
92022
92022
92022
92022
92069
92069
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X25 220 220AA0425 4
NUT-HEX 311 311AA0400 4
GASKET,TAIL LAMP 11009 11009-4004 2
LAMP-ASSY-TAIL 23024 23024-1139 2
LENS,TAIL LAMP 23026 23026-1239 2
BRACKET-TAIL LAMP,LH 23036 23036-0010 1
BRACKET-TAIL LAMP,RH 23036A 23036-0011 1
NUT,4MM 92015 92015-1550 4
WASHER 92022 92022-563 12
BULB,12V 27/8W 92069 92069-059 2
