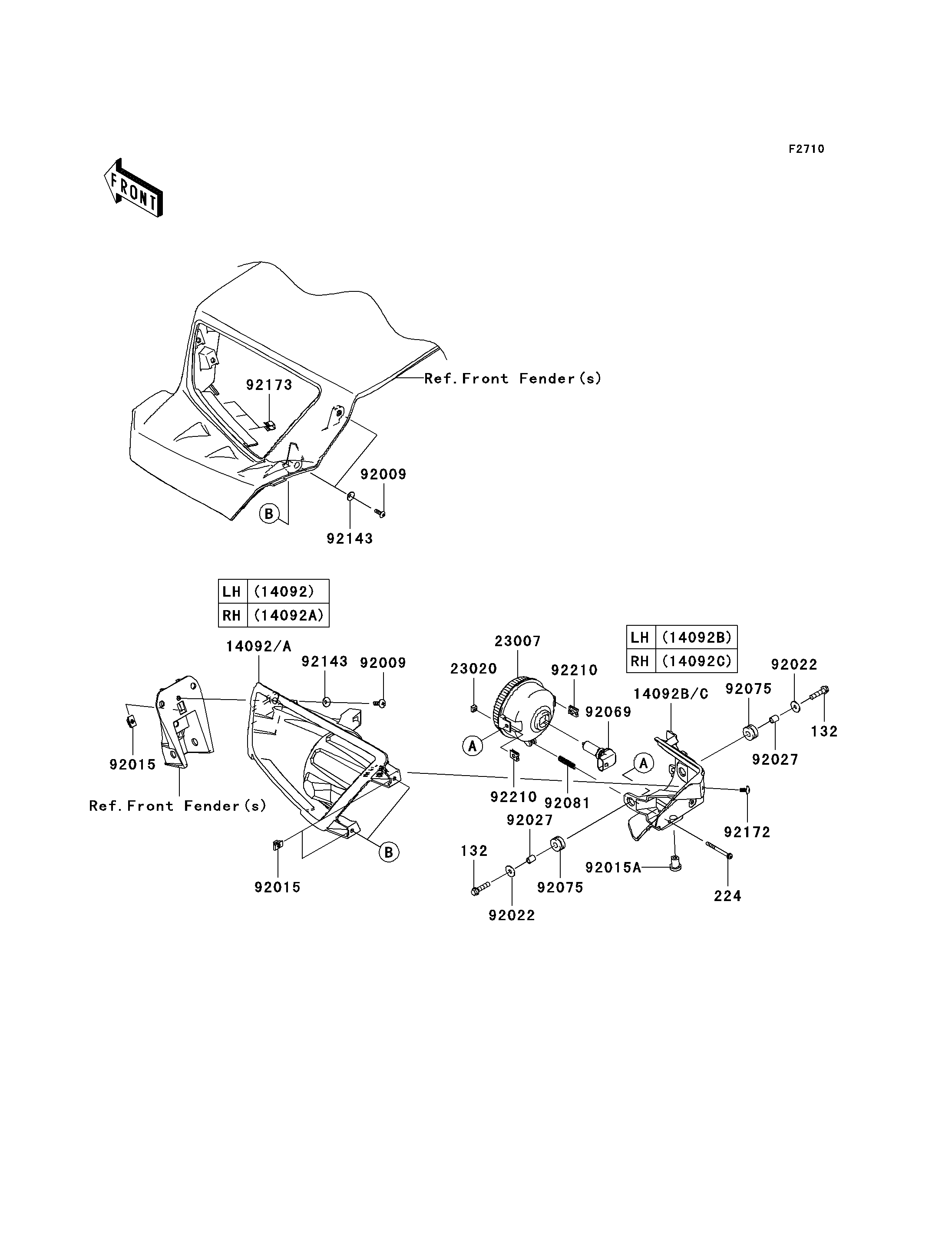

2010 Teryx 750 FI 4X4 (SGE) - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
224
14092
14092A
14092B
14092C
23007
23020
92009
92009
92015
92015
92015A
92022
92022
92027
92027
92069
92075
92075
92081
92143
92143
92172
92173
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 4
SCREW-PAN-WP-CROS,4X45 224 224AA0445 2
COVER,HEAD LAMP,FR,LH 14092 14092-0054 1
COVER,HEAD LAMP,FR,RH 14092A 14092-0055 1
COVER,HEAD LAMP,RR,LH 14092B 14092-0056 1
COVER,HEAD LAMP,RR,RH 14092C 14092-0057 1
LENS-COMP,HEAD LAMP 23007 23007-0096 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
SCREW,5X16,BLACK 92009 92009-1654 6
NUT,5MM 92015 92015-1627 6
NUT,RUBBER,6MM 92015A 92015-1692 2
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 35/35W 92069 92069-0019 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR 92143 92143-1087 6
SCREW,TAPPING,5X10 92172 92172-1061 2
CLAMP 92173 92173-0104 6
NUT 92210 92210-1125 4
