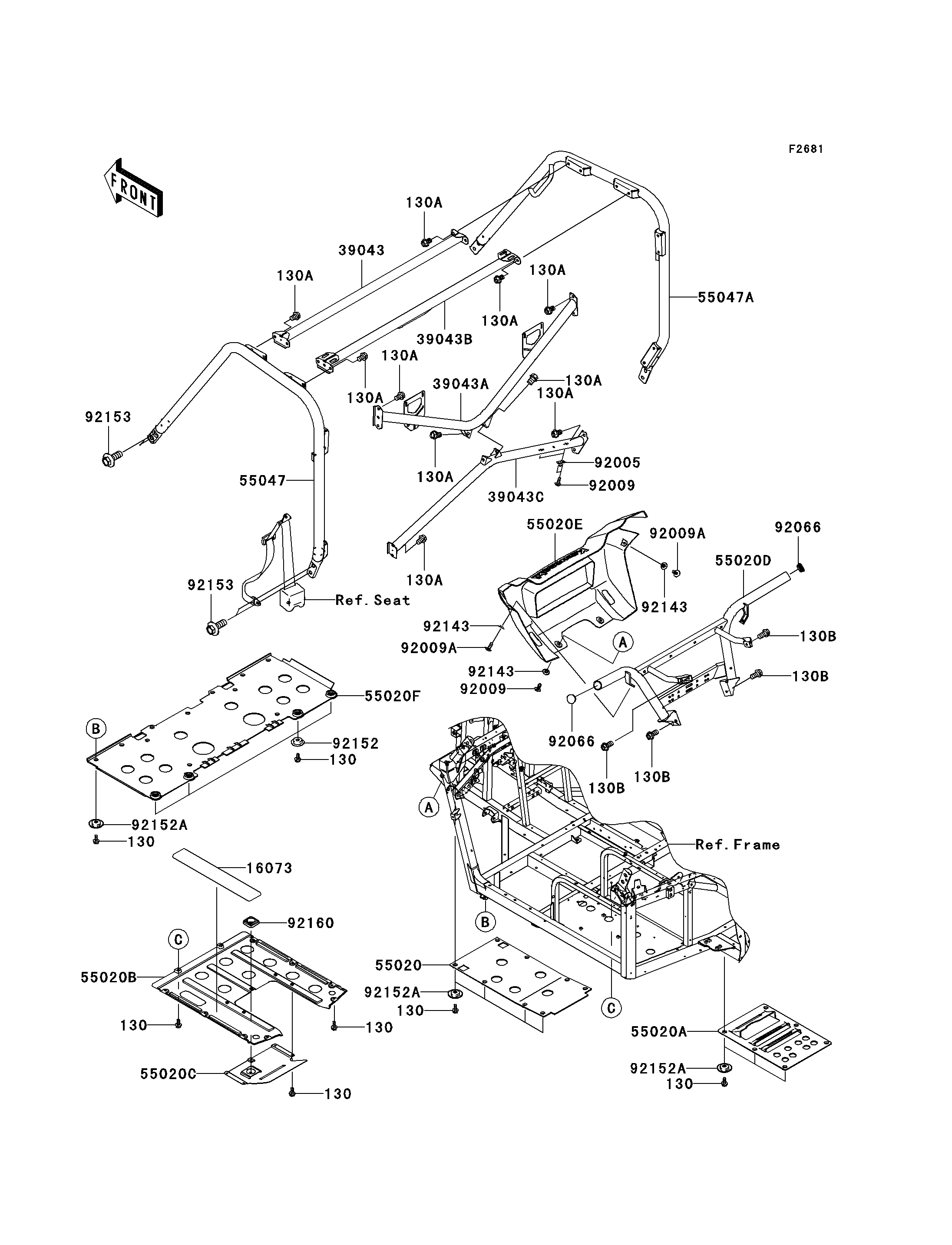

2010 Teryx 750 FI 4X4 (SGE) - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
16073
39043
39043A
39043B
39043C
55020
55020A
55020B
55020C
55020D
55020E
55020F
55047
55047A
92005
92009
92009
92009A
92009A
92066
92066
92143
92143
92143
92152
92152A
92152A
92152A
92153
92153
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 44
BOLT-FLANGED,10X14 130A 130CB1014 18
BOLT-FLANGED,10X20 130B 130CB1020 4
INSULATOR,ENGINE GUARD 16073 16073-0045 1
CROSSMEMBER-COMP,UPP,FR,BLACK 39043 39043-0001-388 1
CROSSMEMBER-COMP,RR,UPP,BLACK 39043A 39043-0005-388 1
CROSSMEMBER-COMP,UPP,RR,BLACK 39043B 39043-0007-388 1
CROSSMEMBER-COMP,RR,LWR,BLACK 39043C 39043-0008-388 1
GUARD,SKID,FR 55020 55020-0301 1
GUARD,SKID,RR 55020A 55020-0402 1
GUARD,SKID,MIDDLE 55020B 55020-0437 1
GUARD,ENGINE,SUB 55020C 55020-0438 1
GUARD,FRONT PIPE,T.BLACK 55020D 55020-0494-388 1
GUARD,FRONT COVER 55020E 55020-0520 1
GUARD,SKID,MIDDLE 55020F 55020-0522 1
BAR-COMP,LH,T.BLACK 55047 55047-0021-388 1
BAR-COMP,RH,T.BLACK 55047A 55047-0022-388 1
FITTING 92005 92005-0077 2
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X16 92009A 92009-1621 2
PLUG 92066 92066-0114 2
COLLAR 92143 92143-1087 4
COLLAR 92152 92152-0512 4
COLLAR 92152A 92152-0784 25
BOLT,FLANGED,14X36 92153 92153-1282 8
DAMPER 92160 92160-1772 1
