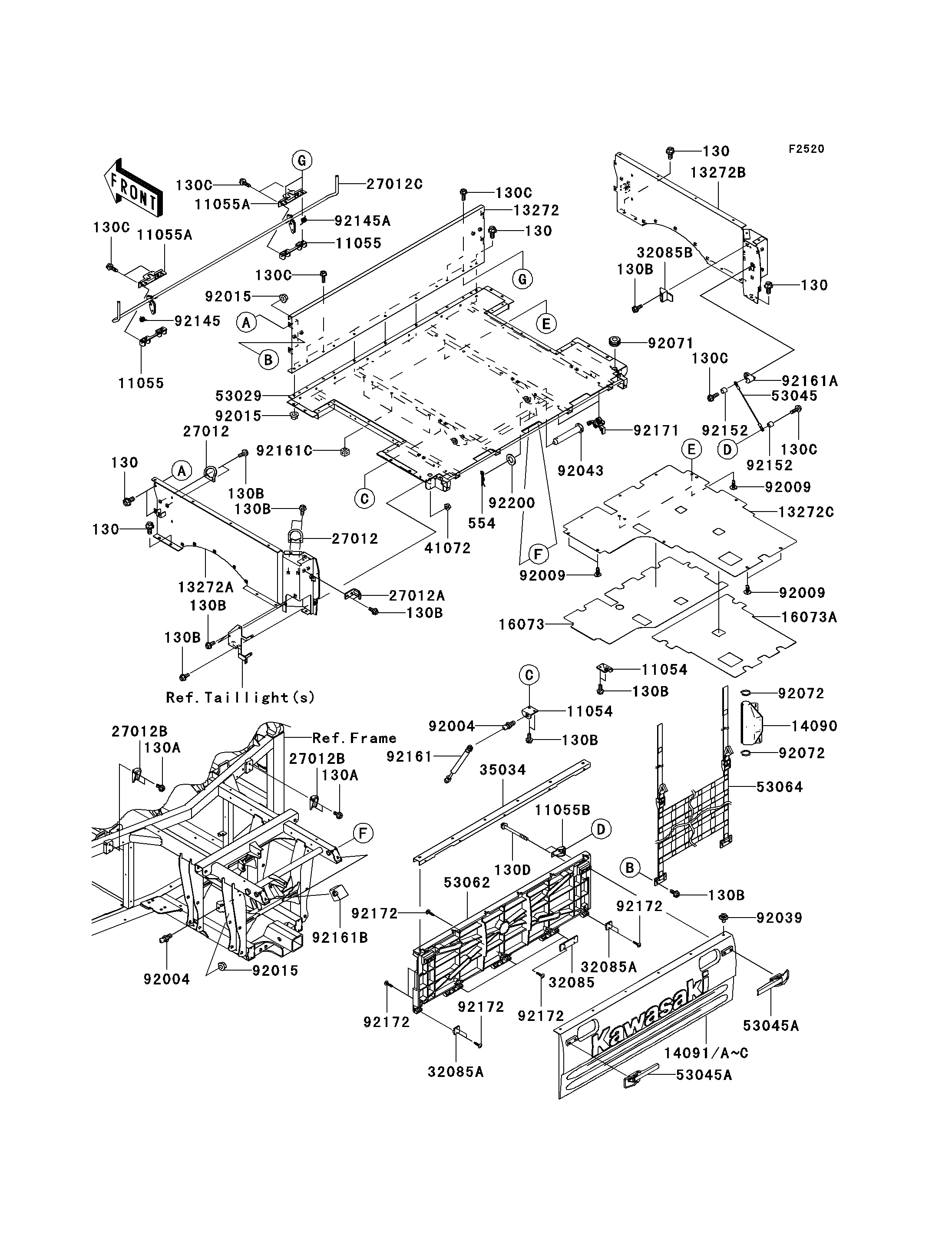

2010 Teryx 750 FI 4X4 (SGE) - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054
11054
11055
11055
11055
11055
11055A
11055A
11055A
11055A
11055B
11055B
13272
13272
13272A
13272A
13272B
13272B
13272C
13272C
14090
14090
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
16073
16073
16073A
16073A
27012
27012
27012
27012
27012A
27012A
27012B
27012B
27012B
27012B
27012C
27012C
32085
32085
32085A
32085A
32085A
32085A
32085B
32085B
35034
35034
41072
41072
53029
53029
53045
53045
53045A
53045A
53045A
53045A
53062
53062
53064
53064
92004
92004
92004
92004
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92039
92039
92043
92043
92071
92071
92072
92072
92072
92072
92145
92145
92145A
92145A
92152
92152
92152
92152
92161
92161
130
130
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130C
130C
130C
130C
130C
130C
130C
130C
130C
130C
130C
130C
130D
130D
554
554
92161A
92161A
92161B
92161B
92161C
92161C
92171
92171
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-1159 2
BRACKET 11055 11055-0795 2
BRACKET 11055A 11055-0797 2
BRACKET,TAIL GATE 11055B 11055-0798 2
PLATE,CARRIER,FR 13272 13272-0464 1
PLATE,CARRIER,LH 13272A 13272-0692 1
PLATE,CARRIER,RH 13272B 13272-0694 1
PLATE,HEAT GUARD 13272C 13272-0719 1
COVER,COUPLER 14090 14090-1611 2
COVER,TAIL GATE,G.D.RED 14091 14091-1613-31H 1
COVER,TAIL GATE,G.D.SILVER 14091A 14091-1613-31J 1
COVER,TAIL GATE,G.D.BLACK 14091B 14091-1613-31K 1
COVER,TAIL GATE,G.D.BLUE 14091C 14091-1613-31L 1
INSULATOR 16073 16073-0085 1
INSULATOR 16073A 16073-0086 1
HOOK 27012 27012-0113 4
HOOK 27012A 27012-0133 2
HOOK,CARRIER DUMP LOCK 27012B 27012-0145 2
HOOK,CARRIER DUMP LOCK 27012C 27012-0167 1
STOPPER 32085 32085-0103 3
STOPPER 32085A 32085-0104 2
STOPPER 32085B 32085-0145 2
REINFORCE 35034 35034-0102 1
NUT,6MM 41072 41072-007 2
CARRIER,BASE 53029 53029-0087 1
HOOK-ASSY,TAIL GATE 53045 53045-0004 2
HOOK-ASSY 53045A 53045-1063 2
GATE-TAIL 53062 53062-0014 1
NET-CARGO 53064 53064-0012 1
STUD,8X13.5 92004 92004-0034 4
SCREW,TAPPING,6X16 92009 92009-1166 11
NUT,FLANGED,8MM 92015 92015-1406 19
RIVET 92039 92039-1256 6
PIN,12.4X72.4 92043 92043-0168 2
GROMMET 92071 92071-1010 2
BAND,L=123 92072 92072-030 4
SPRING,LH 92145 92145-0653 1
SPRING,RH 92145A 92145-0654 1
COLLAR,6.3X9.5X8 92152 92152-0621 4
DAMPER,GAS SPRINGS 92161 92161-0451 2
BOLT-FLANGED,8X16 130 130BA0816 19
BOLT-FLANGED,6X12 130A 130BB0612 4
BOLT-FLANGED,6X14 130B 130BB0614 28
BOLT-FLANGED,6X18 130C 130BB0618 12
BOLT-FLANGED,6X65 130D 130BB0665 4
PIN-SNAP,12MM 554 554DA1200 2
DAMPER 92161A 92161-0550 2
DAMPER 92161B 92161-0698 2
DAMPER 92161C 92161-0774 6
CLAMP 92171 92171-0453 4
SCREW,TAPPING,4X16 92172 92172-0347 28
WASHER,13X24X2 92200 92200-0451 2
