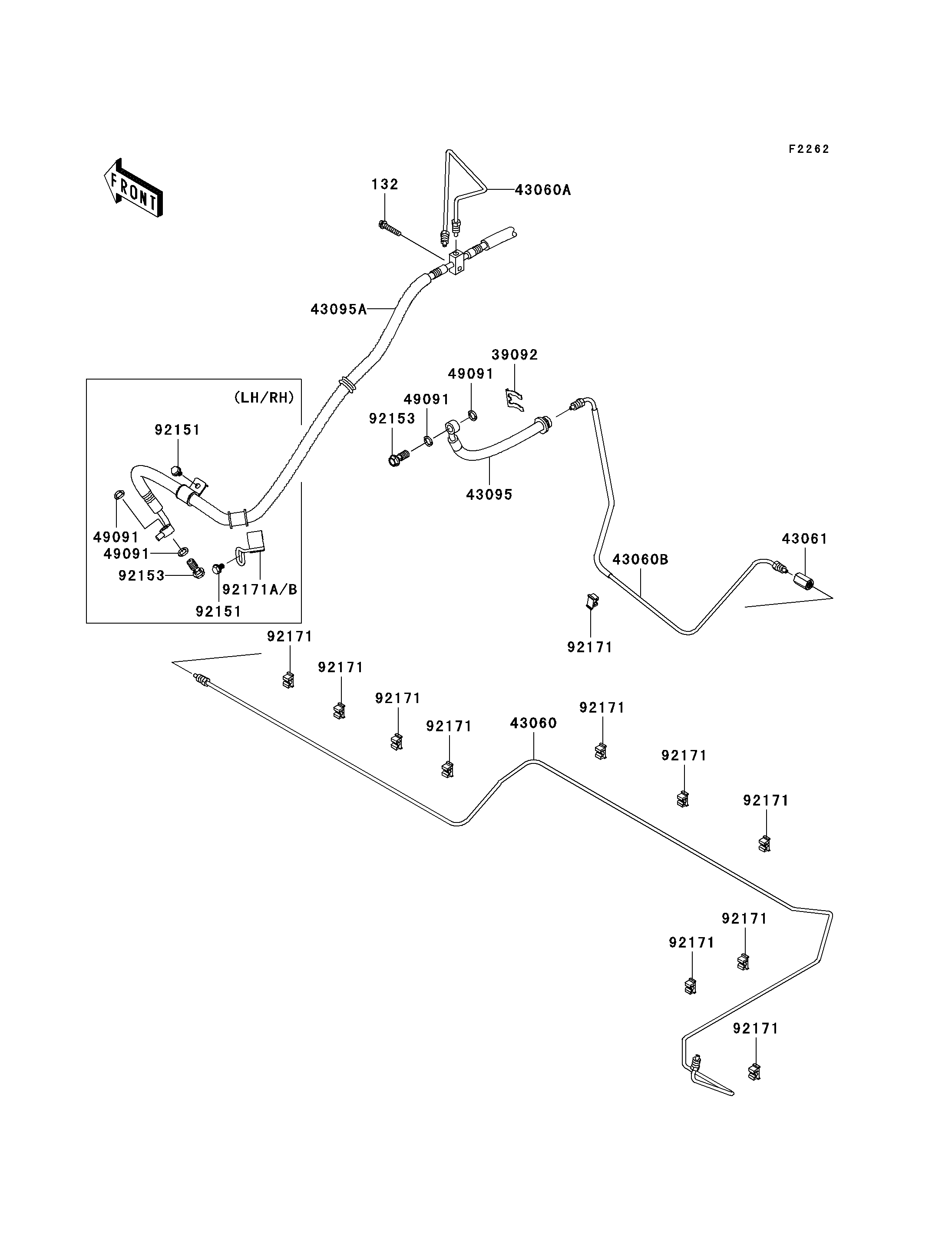

2010 Teryx 750 FI 4X4 (SGE) - Brake Piping
132
39092
43060
43060A
43060B
43061
43095
43095A
49091
49091
49091
49091
92151
92151
92153
92153
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X30 | 132 | 132BB0630 | 1 | ||
| PIN-HAIR | 39092 | 39092-1052 | 1 | ||
| PIPE-BRAKE,RR,RR | 43060 | 43060-0054 | 1 | ||
| PIPE-BRAKE,FR | 43060A | 43060-0058 | 1 | ||
| PIPE-BRAKE,RR,FR | 43060B | 43060-0066 | 1 | ||
| JOINT-BRAKE | 43061 | 43061-0003 | 1 | ||
| HOSE-BRAKE,RR | 43095 | 43095-0313 | 1 | ||
| HOSE-BRAKE,FR | 43095A | 43095-0429 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 6 | ||
| BOLT,6X10 | 92151 | 92151-1344 | 4 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 3 | ||
| CLAMP | 92171 | 92171-0805 | 11 | ||
| CLAMP,BRAKE HOSE,LH | 92171A | 92171-1841 | 1 | ||
| CLAMP,BRAKE HOSE,RH | 92171B | 92171-1842 | 1 |
