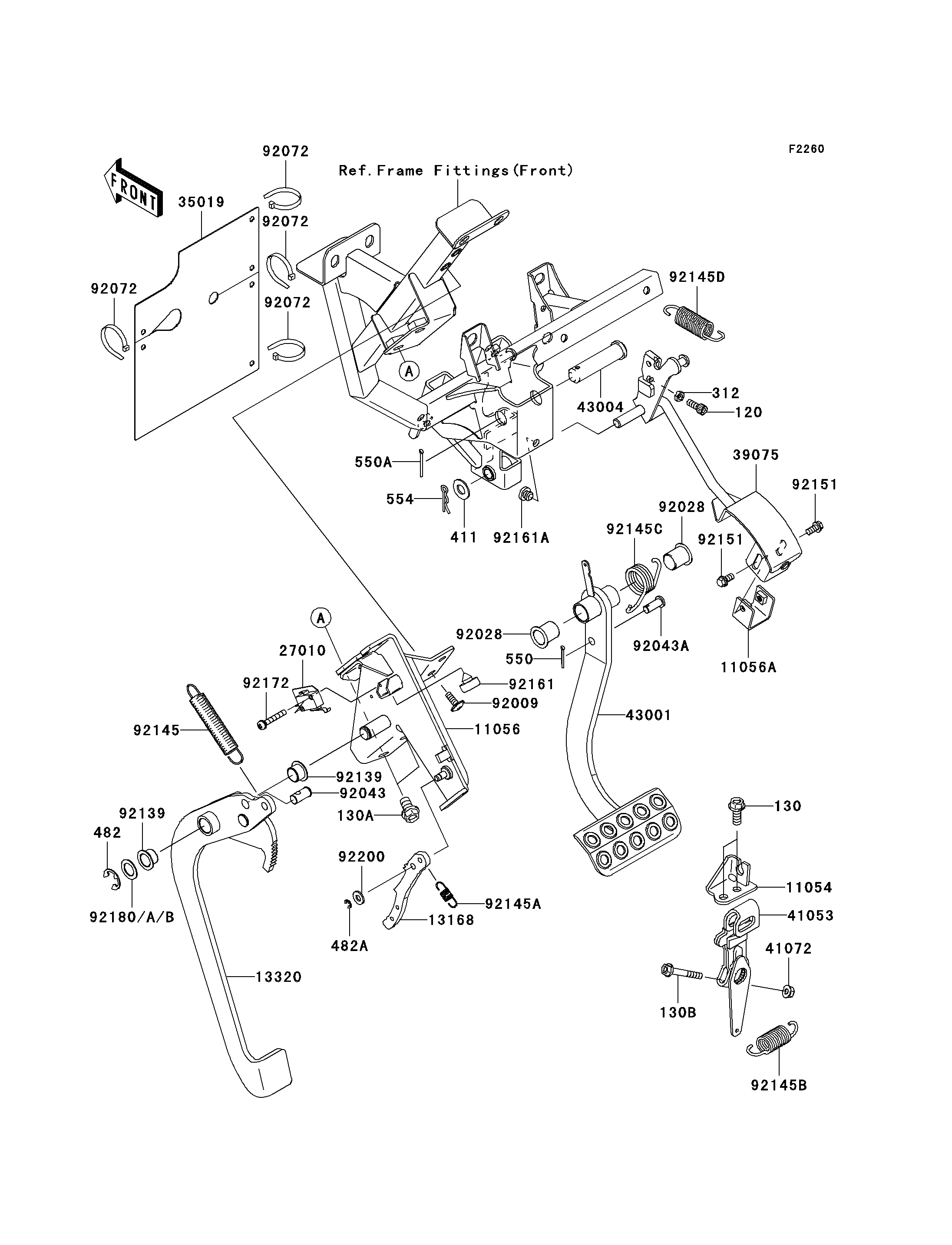

2010 Teryx 750 FI 4X4 (SGE) - Brake Pedal/Throttle Lever
120
120
130
130
130A
130A
130B
130B
312
312
411
411
482
482
482A
482A
550
550
11054
11054
11056
11056
11056A
11056A
13168
13168
13320
13320
27010
27010
35019
35019
39075
39075
41053
41053
41072
41072
43001
43001
43004
43004
92009
92009
92028
92028
92028
92028
92043
92043
92043A
92043A
92072
92072
92072
92072
92072
92072
92072
92072
92139
92139
92139
92139
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92145D
92145D
92151
92151
92151
92151
92161
92161
92161A
92161A
92172
92172
92180
92180
92180A
92180A
92180B
92180B
92200
92200
550A
550A
554
554
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X16 | 120 | 120CA0616 | 1 | ||
| BOLT-FLANGED,8X20 | 130 | 130BA0820 | 2 | ||
| BOLT-FLANGED,10X16 | 130A | 130BA1016 | 2 | ||
| BOLT-FLANGED,6X40 | 130B | 130CA0640 | 1 | ||
| NUT-HEX | 312 | 312BA0600 | 1 | ||
| WASHER-PLAIN,10MM | 411 | 411AA1000 | 1 | ||
| CIRCLIP-TYPE-E,10MM | 482 | 482J0100 | 1 | ||
| CIRCLIP-TYPE-E,4MM | 482A | 482J4000 | 1 | ||
| PIN-COTTER,2.5X18 | 550 | 550AA2518 | 1 | ||
| BRACKET,BRAKE CABLE | 11054 | 11054-0933 | 1 | ||
| BRACKET,BRAKE LEVER | 11056 | 11056-0007 | 1 | ||
| BRACKET | 11056A | 11056-0054 | 1 | ||
| LEVER | 13168 | 13168-0174 | 1 | ||
| LEVER-ASSY,BRAKE PEDAL | 13320 | 13320-0025 | 1 | ||
| SWITCH | 27010 | 27010-0084 | 1 | ||
| FLAP | 35019 | 35019-0079 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-0015 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-0010 | 1 | ||
| NUT,6MM | 41072 | 41072-007 | 1 | ||
| LEVER-BRAKE,PEDAL | 43001 | 43001-0103 | 1 | ||
| SHAFT-BRAKE | 43004 | 43004-1128 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 2 | ||
| BUSHING | 92028 | 92028-1571 | 2 | ||
| PIN | 92043 | 92043-0124 | 1 | ||
| PIN | 92043A | 92043-1039 | 1 | ||
| BAND,L=188 | 92072 | 92072-1239 | 4 | ||
| BUSHING | 92139 | 92139-0182 | 2 | ||
| SPRING | 92145 | 92145-0446 | 1 | ||
| SPRING | 92145A | 92145-0447 | 1 | ||
| SPRING | 92145B | 92145-0563 | 1 | ||
| SPRING,BRAKE PEDAL RETURN | 92145C | 92145-0575 | 1 | ||
| SPRING | 92145D | 92145-0636 | 1 | ||
| BOLT,6X12 | 92151 | 92151-1997 | 2 | ||
| DAMPER | 92161 | 92161-0590 | 1 | ||
| DAMPER | 92161A | 92161-1084 | 1 | ||
| SCREW,3X20 | 92172 | 92172-0419 | 2 | ||
| SHIM,T=0.8 | 92180 | 92180-0279 | AR | ||
| SHIM,T=1.0 | 92180A | 92180-0281 | AR | ||
| SHIM,T=1.2 | 92180B | 92180-0282 | AR | ||
| WASHER,6.5X14.5X1.5 | 92200 | 92200-3775 | 1 | ||
| PIN-COTTER,2.5X25 | 550A | 550AA2525 | 1 | ||
| PIN-SNAP,10MM | 554 | 554DA1000 | 1 |
