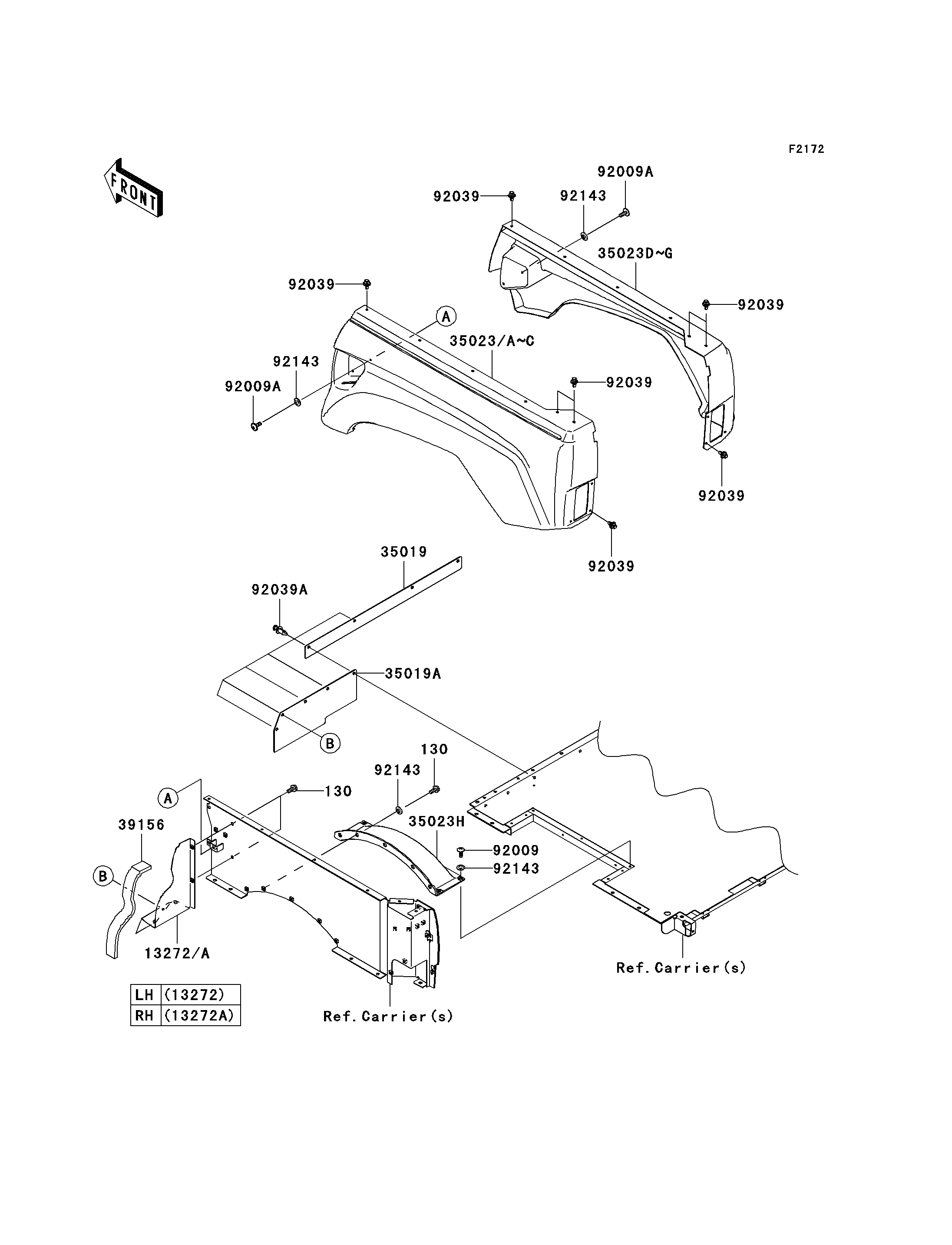

2010 Teryx 750 FI 4X4 (SGE) - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
13272
13272A
35019
35019A
35023
35023A
35023B
35023C
35023D
35023E
35023F
35023G
35023H
39156
92009
92009A
92009A
92039
92039
92039
92039
92039
92039
92039A
92143
92143
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 14
PLATE,REAR FENDER,INNER,LH 13272 13272-0688 1
PLATE,REAR FENDER,INNER,RH 13272A 13272-0689 1
FLAP,FRONT CARRIER,CNT 35019 35019-0084 1
FLAP,CARRIER,FR 35019A 35019-0090 2
FENDER-REAR,RR,LH,G.D.RED 35023 35023-0130-31H 1
FENDER-REAR,RR,LH,G.D.SILVER 35023A 35023-0130-31J 1
FENDER-REAR,RR,LH,G.D.BLACK 35023B 35023-0130-31K 1
FENDER-REAR,RR,LH,G.D.BLUE 35023C 35023-0130-31L 1
FENDER-REAR,RR,RH,G.D.RED 35023D 35023-0131-31H 1
FENDER-REAR,RR,RH,G.D.SILVER 35023E 35023-0131-31J 1
FENDER-REAR,RR,RH,G.D.BLACK 35023F 35023-0131-31K 1
FENDER-REAR,RR,RH,G.D.BLUE 35023G 35023-0131-31L 1
FENDER-REAR 35023H 35023-0151 2
PAD,REAR FENDER,INNER,LH&RH 39156 39156-0519 2
SCREW,TAPPING,6X16 92009 92009-1166 10
SCREW,6X16 92009A 92009-1621 2
RIVET 92039 92039-1227 18
RIVET 92039A 92039-1229 12
COLLAR 92143 92143-1087 22
