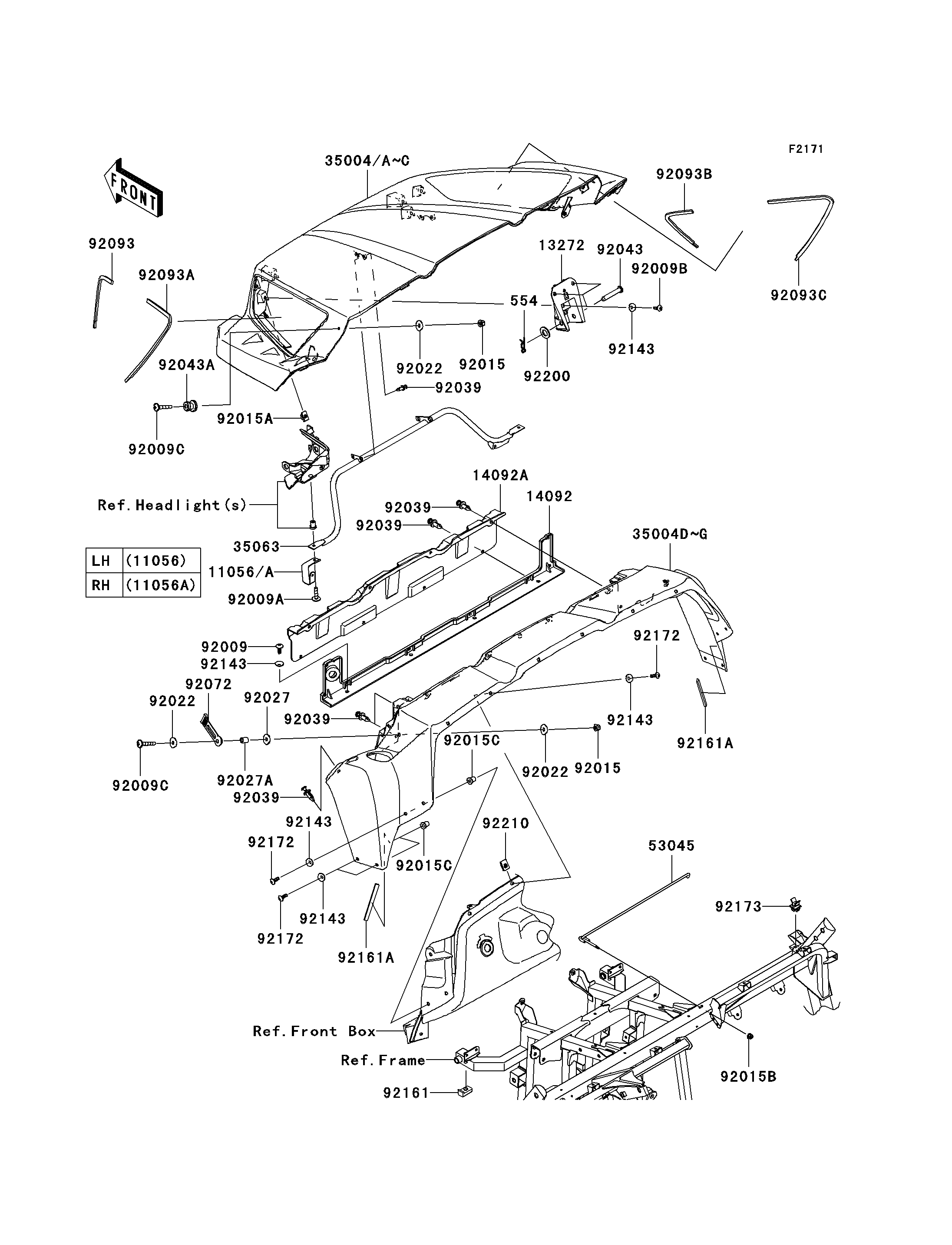

2010 Teryx 750 FI 4X4 (SGE) - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
13272
13272
14092
14092
14092A
14092A
35004
35004
35004A
35004A
35004B
35004B
35004C
35004C
35004D
35004D
35004E
35004E
35004F
35004F
35004G
35004G
35063
35063
53045
53045
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92015C
92015C
92022
92022
92022
92022
92022
92022
92027
92027
92027A
92027A
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92043
92043
92043A
92043A
92072
92072
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92172
92172
92173
92173
92200
92200
554
554
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-0129 1
BRACKET,RH 11056A 11056-0130 1
PLATE 13272 13272-0849 2
COVER,BASE PLATE 14092 14092-0059 1
COVER,CHECK PLATE 14092A 14092-0060 1
FENDER-FRONT,FR,G.D.RED 35004 35004-0134-31H 1
FENDER-FRONT,FR,G.D.SILVER 35004A 35004-0134-31J 1
FENDER-FRONT,FR,G.D.BLACK 35004B 35004-0134-31K 1
FENDER-FRONT,FR,G.D.BLUE 35004C 35004-0134-31L 1
FENDER-FRONT,RR,G.D.RED 35004D 35004-0143-31H 1
FENDER-FRONT,RR,G.D.SILVER 35004E 35004-0143-31J 1
FENDER-FRONT,RR,G.D.BLACK 35004F 35004-0143-31K 1
FENDER-FRONT,RR,G.D.BLUE 35004G 35004-0143-31L 1
STAY,HEAD LAMP 35063 35063-0677 1
HOOK-ASSY 53045 53045-0018 1
SCREW,TAPPING,6X16 92009 92009-1166 4
SCREW,6X25 92009A 92009-1465 2
SCREW,5X16,BLACK 92009B 92009-1654 6
SCREW,6X35 92009C 92009-1672 4
NUT,LOCK,FLANGED,6MM 92015 92015-1339 4
NUT,5MM 92015A 92015-1627 6
NUT,LOCK,FLANGED,5MM 92015B 92015-1752 1
NUT,WELL,5MM 92015C 92015-1757 8
WASHER,6.5X20X1.6,WHITE 92022 92022-193 6
COLLAR,L=5.1 92027 92027-1260 2
COLLAR,6.8X10X12 92027A 92027-162 2
RIVET 92039 92039-1229 18
PIN,12.4X72.4 92043 92043-0168 2
PIN 92043A 92043-0197 2
BAND 92072 92072-0144 2
SEAL,FR,LH 92093 92093-0168 1
SEAL,RR,LH 92093A 92093-0169 1
SEAL,FR,RH 92093B 92093-0170 1
SEAL,RR,RH 92093C 92093-0171 1
COLLAR 92143 92143-1087 24
DAMPER 92161 92161-0861 2
DAMPER 92161A 92161-0877 2
SCREW,5X16 92172 92172-0479 14
CLAMP 92173 92173-0106 1
WASHER,13X24X2 92200 92200-0451 2
PIN-SNAP,12MM 554 554DA1200 2
NUT,5MM 92210 92210-0499 6
