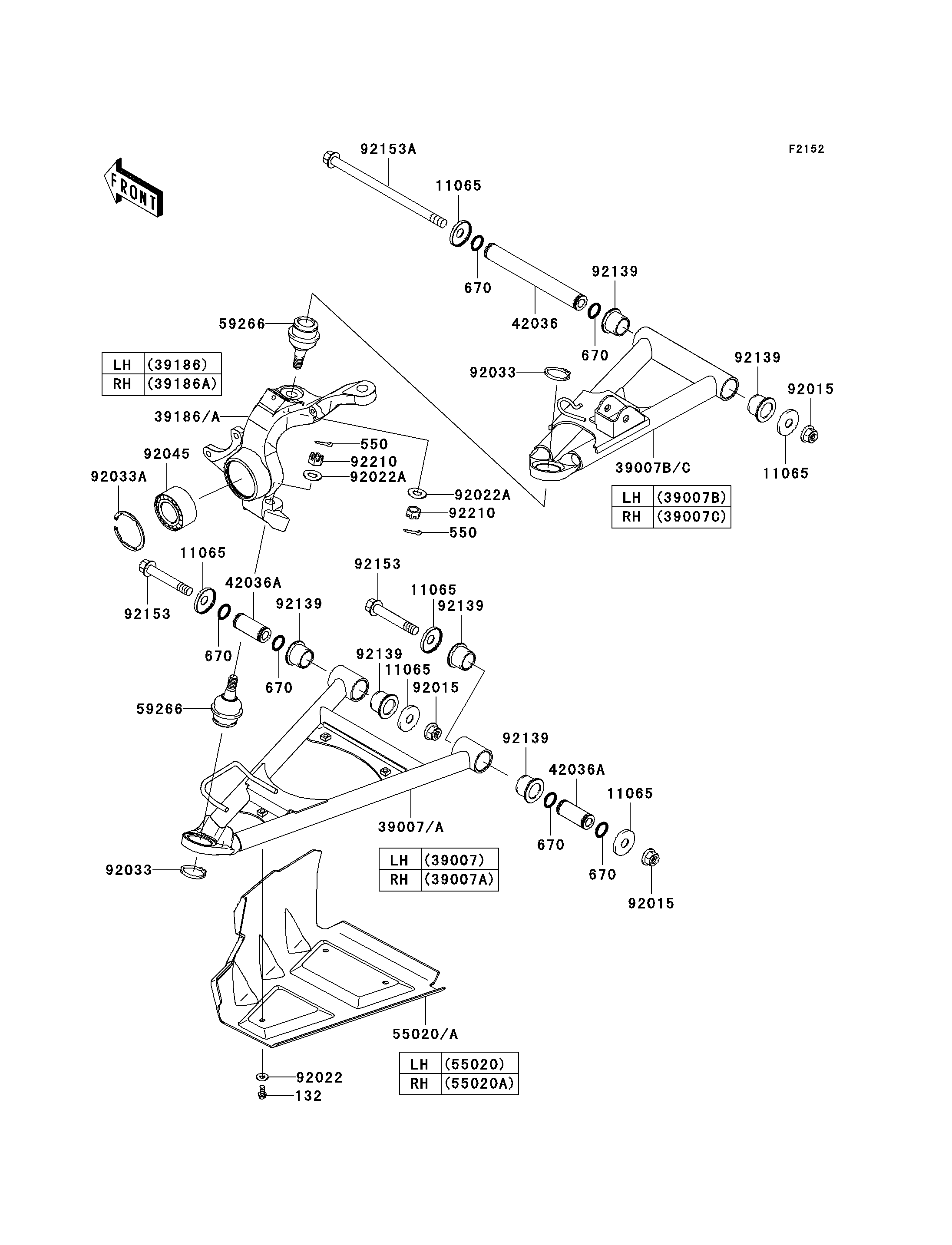

2010 Teryx 750 FI 4X4 (SGE) - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
132
550
550
670
670
670
670
670
670
11065
11065
11065
11065
11065
11065
39007
39007A
39007B
39007C
39186
39186A
42036
42036A
42036A
55020
55020A
59266
59266
92015
92015
92015
92022
92022A
92022A
92033
92033
92033A
92045
92139
92139
92139
92139
92139
92139
92153
92153
92153A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BB0612 6
PIN-COTTER,3.0X25 550 550AA3025 4
O RING,18MM 670 670B2018 12
CAP 11065 11065-0253 12
ARM-SUSP,FR,LWR,LH 39007 39007-0161 1
ARM-SUSP,FR,LWR,RH 39007A 39007-0162 1
ARM-SUSP,FR,UPP,LH 39007B 39007-0163 1
ARM-SUSP,FR,UPP,RH 39007C 39007-0164 1
KNUCKLE,FR,LH 39186 39186-0096 1
KNUCKLE,FR,RH 39186A 39186-0097 1
SLEEVE 42036 42036-0061 2
SLEEVE 42036A 42036-0062 4
GUARD,FR,LH 55020 55020-0308 1
GUARD,FR,RH 55020A 55020-0309 1
JOINT-BALL 59266 59266-0014 4
NUT,LOCK,FLANGED,12MM 92015 92015-1433 6
WASHER,7X16X1.2 92022 92022-1344 6
WASHER 92022A 92022-1831 4
RING-SNAP,C-TYPE,32MM 92033 92033-1262 4
RING-SNAP,55MM 92033A 92033-1274 2
BEARING-BALL,DAC3055W-3CS31 92045 92045-0123 2
BUSHING 92139 92139-0231 12
BOLT,FLANGED,12X76.5 92153 92153-1733 4
BOLT,FLANGED,12X213 92153A 92153-1958 2
NUT,CASTLE,12MM 92210 92210-0395 4
