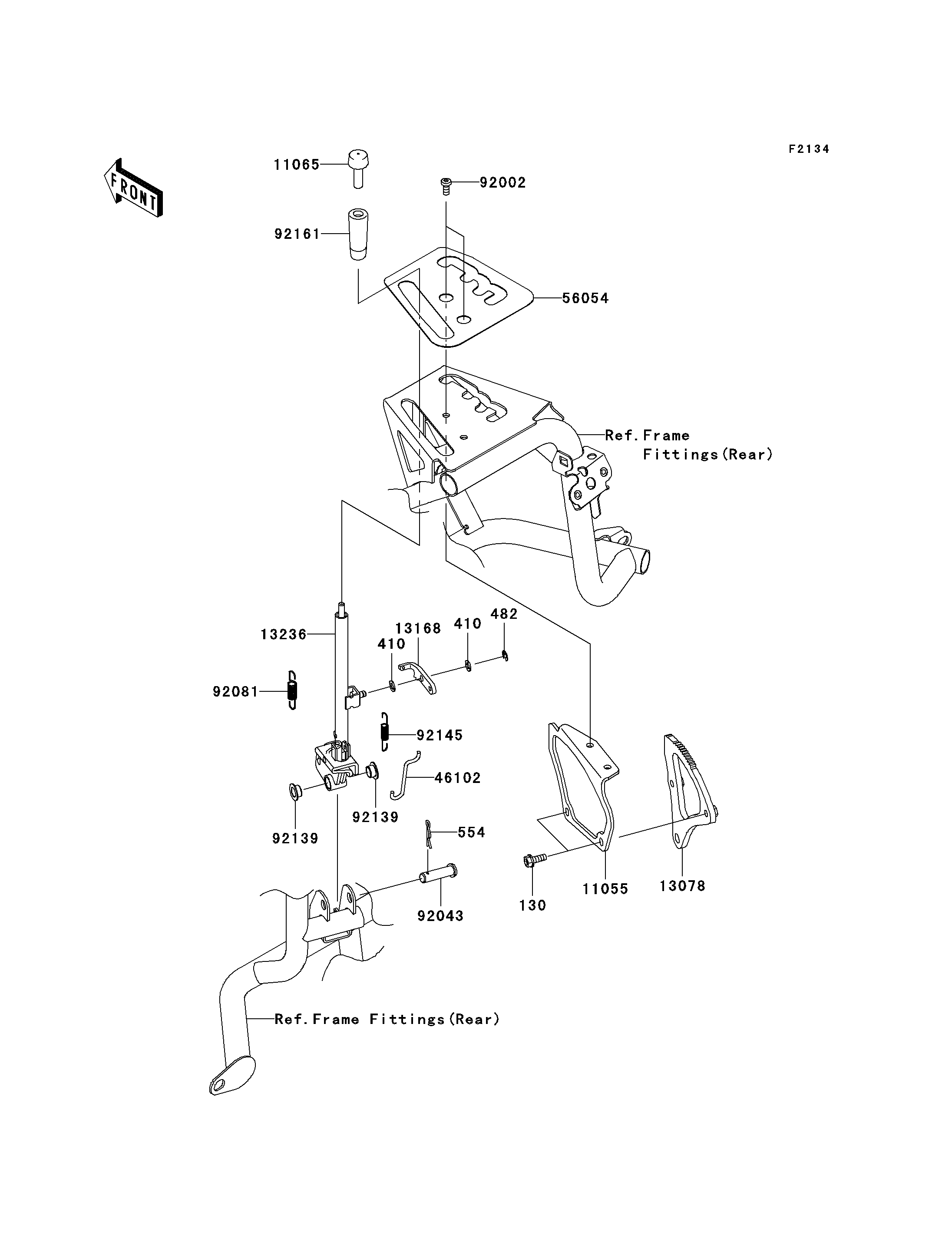

2010 Teryx 750 FI 4X4 (SGE) - Shift Lever(s)

DOWNLOAD PDF
SELECT A NEW PART
130
410
410
482
554
11055
11065
13078
13168
13236
46102
56054
92002
92043
92081
92139
92139
92145
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 2
WASHER-PLAIN-SMALL 410 410AA0600 2
CIRCLIP-TYPE-E 482 482EA5000 1
PIN-SNAP,10MM 554 554DA1000 1
BRACKET 11055 11055-0477 1
CAP 11065 11065-0269 1
RATCHET 13078 13078-0021 1
LEVER 13168 13168-0193 1
LEVER-COMP 13236 13236-0188 1
ROD 46102 46102-0131 1
MARK,DIFF LOCK 56054 56054-0351 1
BOLT,6X14 92002 92002-1700 2
PIN,10X34 92043 92043-1069 1
SPRING 92081 92081-1023 1
BUSHING 92139 92139-0230 2
SPRING 92145 92145-0611 1
DAMPER 92161 92161-0616 1
