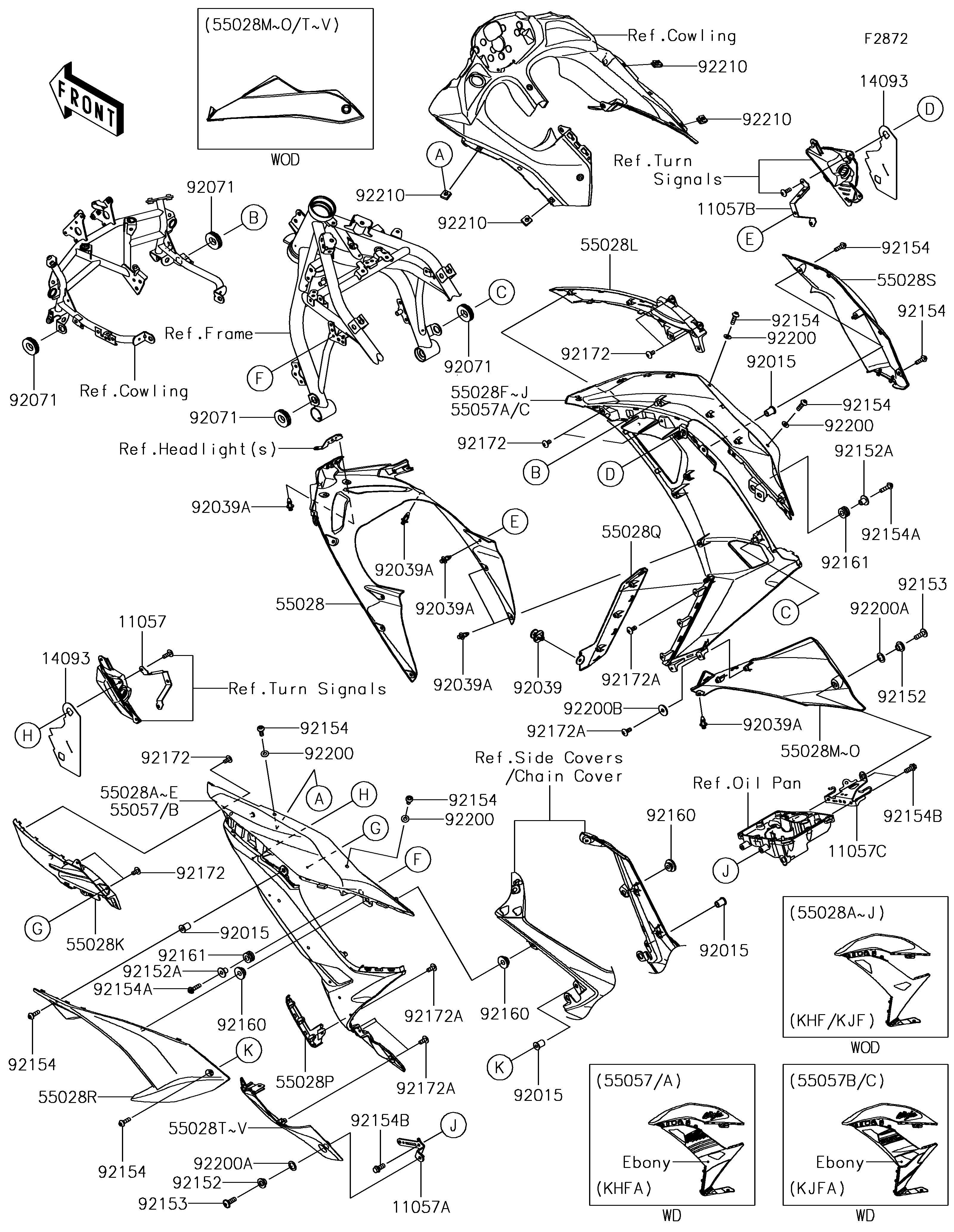

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
14093
14093
14093
14093
55028
55028
55028A
55028A
55028C
55028C
55028D
55028D
55028F
55028F
55028H
55028H
55028I
55028I
55028K
55028K
55028L
55028L
55028M
55028M
55028P
55028P
55028Q
55028Q
55028R
55028R
55028S
55028S
55028T
55028T
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92071
92071
92071
92071
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92210
92210
92210
92210
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SIDE COWL.,LH | 11057 | 11057-0130 | 1 | ||
| BRACKET,LWR COWL.,LH | 11057A | 11057-0131 | 1 | ||
| BRACKET,SIDE COWL.,RH | 11057B | 11057-0132 | 1 | ||
| BRACKET,LWR COWL.,RH | 11057C | 11057-0133 | 1 | ||
| COVER,SIGNAL LAMP | 14093 | 14093-0603 | 2 | ||
| COWLING,FRONT NOSE | 55028 | 55028-0593 | 1 | ||
| COWLING,SIDE,LH,C.B.ORANGE | 55028A | 55028-0594-17L | 1 | ||
| COWLING,SIDE,LH,P.B.WHITE | 55028C | 55028-0594-54X | 1 | CA | |
| COWLING,SIDE,LH,M.S.BLACK | 55028D | 55028-0594-660 | 1 | ||
| COWLING,SIDE,RH,C.B.ORANGE | 55028F | 55028-0595-17L | 1 | ||
| COWLING,SIDE,RH,P.B.WHITE | 55028H | 55028-0595-54X | 1 | CA | |
| COWLING,SIDE,RH,M.S.BLACK | 55028I | 55028-0595-660 | 1 | ||
| COWLING,SIDE,INNER,LH | 55028K | 55028-0596 | 1 | ||
| COWLING,SIDE,INNER,RH | 55028L | 55028-0597 | 1 | ||
| COWLING,LWR,RH,M.F.S.BLACK | 55028M | 55028-0599-739 | 1 | ||
| COWLING,LWR,FR,LH | 55028P | 55028-0600 | 1 | ||
| COWLING,LWR,FR,RH | 55028Q | 55028-0601 | 1 | ||
| COWLING,SIDE,RR,LH | 55028R | 55028-0602 | 1 | ||
| COWLING,SIDE,RR,RH | 55028S | 55028-0603 | 1 | ||
| COWLING,LWR,LH,M.F.S.BLACK | 55028T | 55028-0634-739 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 4 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0709 | 11 | ||
| GROMMET | 92071 | 92071-1043 | 4 | ||
| COLLAR | 92152 | 92152-1359 | 2 | ||
| COLLAR | 92152A | 92152-1592 | 2 | ||
| BOLT,6X18 | 92153 | 92153-0478 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 8 | ||
| BOLT,SOCKET,5X20 | 92154A | 92154-0210 | 2 | ||
| BOLT,FLANGED,6X14 | 92154B | 92154-1426 | 4 | ||
| DAMPER | 92160 | 92160-1613 | 4 | ||
| DAMPER,8X16X8.6 | 92161 | 92161-0685 | 2 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 8 | ||
| SCREW,5X12 | 92172A | 92172-0821 | 11 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 4 | ||
| WASHER,10.4X15.9X0.5 | 92200A | 92200-0157 | 2 | ||
| WASHER,5.5X18X1.6 | 92200B | 92200-0857 | 2 | ||
| NUT | 92210 | 92210-0571 | 4 |
| BRACKET,SIDE COWL.,LH | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWL.,LH | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,SIDE COWL.,RH | |
| REF # | 11057B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWL.,RH | |
| REF # | 11057C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIGNAL LAMP | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,FRONT NOSE | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LH,C.B.ORANGE | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LH,P.B.WHITE | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COWLING,SIDE,LH,M.S.BLACK | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RH,C.B.ORANGE | |
| REF # | 55028F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RH,P.B.WHITE | |
| REF # | 55028H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COWLING,SIDE,RH,M.S.BLACK | |
| REF # | 55028I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,INNER,LH | |
| REF # | 55028K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,INNER,RH | |
| REF # | 55028L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,M.F.S.BLACK | |
| REF # | 55028M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,FR,LH | |
| REF # | 55028P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,FR,RH | |
| REF # | 55028Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,LH | |
| REF # | 55028R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,RH | |
| REF # | 55028S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,M.F.S.BLACK | |
| REF # | 55028T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET,HOLE 8MM | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X20 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X16X8.6 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLONE,5.3X11.5X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.4X15.9X0.5 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X18X1.6 | |
| REF # | 92200B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
