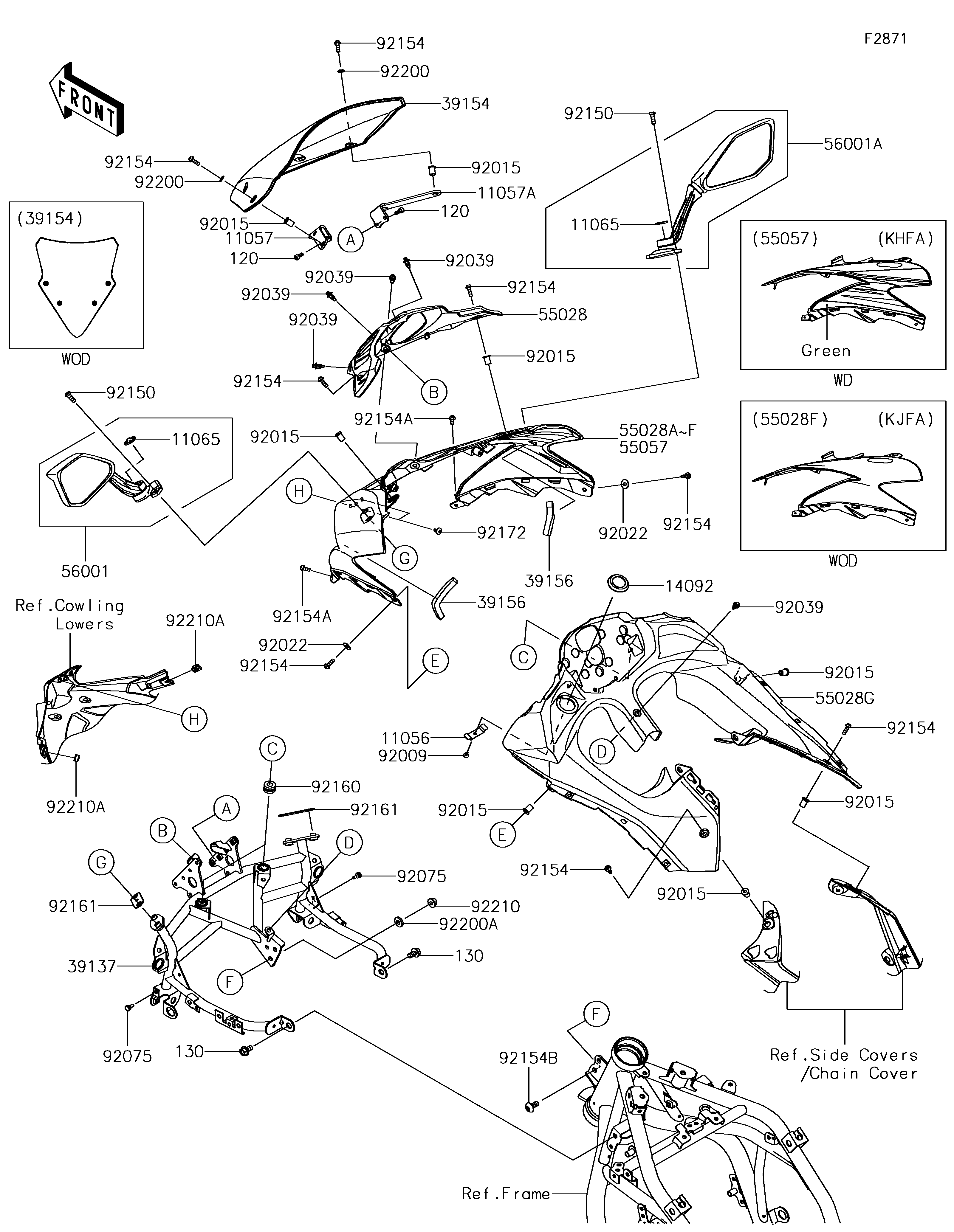

2017 Ninja 650 ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
11057A
11065
11065
120
120
130
130
14092
39137
39154
39156
39156
55028
55028A
55028C
55028D
55028G
56001
56001A
92009
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92039
92039
92039
92039
92039
92075
92075
92150
92150
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92160
92161
92161
92172
92200
92200
92200A
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CAP COVER 11056 11056-4313 1
BRACKET,WINDSHIELD,LH 11057 11057-0134 1
BRACKET,WINDSHIELD,RH 11057A 11057-0135 1
CAP,MIRROR 11065 11065-0945 2
BOLT-SOCKET,5X12 120 120CB0512 4
BOLT-FLANGED,8X14 130 130BA0814 2
COVER,DC SOCKET 14092 14092-0214 1
STAY-COMP,UPP COWL. 39137 39137-0667 1
WINDSHIELD 39154 39154-0352 1
PAD 39156 39156-2185 2
COWLING,METER VISOR 55028 55028-0590 1
COWLING,UPP,C.B.ORANGE 55028A 55028-0592-17L 1
COWLING,UPP,P.B.WHITE 55028C 55028-0592-54X 1 CA
COWLING,UPP,M.S.BLACK 55028D 55028-0592-660 1
COWLING,INNER 55028G 55028-0633 1
MIRROR-ASSY,LH 56001 56001-0351 1
MIRROR-ASSY,RH 56001A 56001-0352 1
SCREW,TAPPING,4X8 92009 92009-1155 1
NUT,WELL,5MM 92015 92015-1757 10
WASHER,6X16X1 92022 92022-1818 2
RIVET 92039 92039-0709 5
DAMPER,6X10X15 92075 92075-1808 2
BOLT,SOCKET,6X18 92150 92150-1553 4
BOLT,SOCKET,5X16 92154 92154-0209 10
BOLT,SOCKET,5X12 92154A 92154-1421 2
BOLT,SOCKET,8X18 92154B 92154-2656 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER,MIRROR 92161 92161-1952 2
SCREW,TAPPING,5X10 92172 92172-0262 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
WASHER,8.2X18X3.2 92200A 92200-1866 2
NUT,FLANGED,8MM 92210 92210-0304 2
NUT 92210A 92210-0571 2
