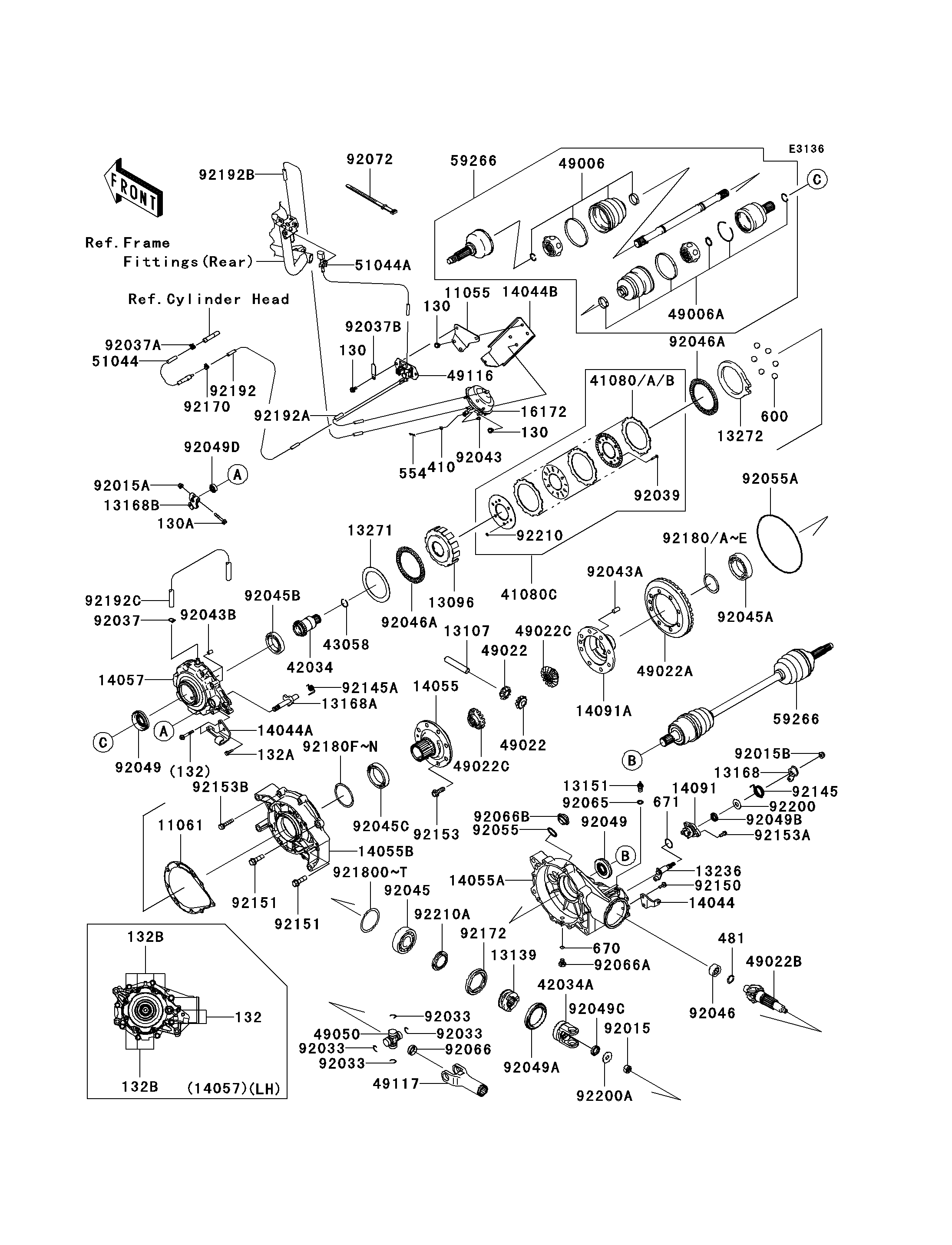

2010 Teryx 750 FI 4X4 (SGE) - Drive Shaft-Front

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055
11061
11061
11061
13096
13096
13096
13107
13107
13107
13139
13139
13139
13151
13151
13151
13168
13168
13168
13168A
13168A
13168A
13168B
13168B
13168B
13236
13236
13236
13271
13271
13271
13272
13272
13272
14044
14044
14044
14044A
14044A
14044A
14044B
14044B
14044B
14055
14055
14055
14055A
14055A
14055A
14055B
14055B
14055B
14057
14057
14057
14091
14091
14091
14091A
14091A
14091A
16172
16172
16172
41080
41080
41080
41080A
41080A
41080A
41080B
41080B
41080B
41080C
41080C
41080C
42034
42034
42034
42034A
42034A
42034A
43058
43058
43058
49006
49006
49006
49006A
49006A
49006A
49022
49022
49022
49022
49022
49022
49022A
49022A
49022A
49022B
49022B
49022B
49022C
49022C
49022C
49022C
49022C
49022C
49050
49050
49050
49116
49116
49116
49117
49117
49117
51044
51044
51044
51044A
51044A
51044A
59266
59266
59266
59266
59266
59266
92015
92015
92015
92015A
92015A
92015A
92015B
92015B
92015B
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92037
92037
92037
92037A
92037A
92037A
92037B
92037B
92037B
92039
92039
92039
92043
92043
92043
92043A
92043A
92043A
92043B
92043B
92043B
92045
92045
92045
92045A
92045A
92045A
92045B
92045B
92045B
92045C
92045C
92045C
92046
92046
92046
92046A
92046A
92046A
92046A
92046A
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92049A
92049B
92049B
92049B
92049C
92049C
92049C
92049D
92049D
92049D
92055
92055
92055
92055A
92055A
92055A
92065
92065
92065
92066
92066
92066
92066A
92066A
92066A
92066B
92066B
92066B
92072
92072
92072
92145
92145
92145
92145A
92145A
92145A
92150
92150
92150
92151
92151
92151
92151
92151
92151
92153
92153
92153
92153A
92153A
92153A
92153B
92153B
92153B
92170
92170
92170
92172
92172
92172
92180
92180
92180
130
130
130
130
130
130
130
130
130
130A
130A
130A
132
132
132
132A
132A
132A
132B
132B
132B
132B
132B
132B
410
410
410
481
481
481
554
554
554
600
600
600
670
670
670
671
671
671
92180A
92180A
92180A
92180B
92180B
92180B
92180C
92180C
92180C
92180D
92180D
92180D
92180E
92180E
92180E
92180F
92180F
92180F
92180G
92180G
92180G
92180H
92180H
92180H
92180I
92180I
92180I
92180J
92180J
92180J
92180K
92180K
92180K
92180L
92180L
92180L
92180M
92180M
92180M
92180N
92180N
92180N
92180O
92180O
92180O
92180P
92180P
92180P
92180Q
92180Q
92180Q
92180R
92180R
92180R
92180S
92180S
92180S
92180T
92180T
92180T
92192
92192
92192
92192A
92192A
92192A
92192B
92192B
92192B
92192C
92192C
92192C
92200
92200
92200
92200A
92200A
92200A
92210
92210
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0422 1
GASKET,LH CASE 11061 11061-0272 1
HOUSING-CLUTCH 13096 13096-0018 1
SHAFT,CROSS 13107 13107-0149 1
SHIFTER,2/4WD ACTUATOR 13139 13139-0015 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
LEVER,OUTER 13168 13168-0139 1
LEVER,DIFF-LOCK,INNER 13168A 13168-0141 1
LEVER,DIFF-LOCK 13168B 13168-0173 1
LEVER-COMP,INNER 13236 13236-0164 1
PLATE,DISC 13271 13271-1503 1
PLATE,CAM 13272 13272-0858 1
HOLDER-CABLE 14044 14044-0029 1
HOLDER-CABLE,DIFF-LOCK 14044A 14044-0036 1
HOLDER-CABLE 14044B 14044-0042 1
CASE-GEAR,CROSS 14055 14055-0033 1
CASE-GEAR,RH 14055A 14055-0038 1
CASE-GEAR,MDL 14055B 14055-0043 1
CASE-COMP-GEAR,LH 14057 14057-0005 1
COVER 14091 14091-0680 1
COVER,CROSS CASE 14091A 14091-0867 1
ACTUATOR 16172 16172-0014 1
DISC,T=1.20 41080 41080-1499 AR
DISC,T=1.80 41080A 41080-1500 AR
DISC,T=2.40 41080B 41080-1501 AR
DISC ASSY,DIFFERENTIAL LOCK 41080C 41080-1512 1
COUPLING 42034 42034-0043 1
COUPLING 42034A 42034-0054 1
RING 43058 43058-0018 1
BOOT,UJ 49006 49006-0092 2
BOOT,DOJ 49006A 49006-0093 2
GEAR-BEVEL,10T 49022 49022-0018 2
GEAR-BEVEL,35T 49022A 49022-0030 1
GEAR-BEVEL,8T 49022B 49022-0032 1
GEAR-BEVEL,16T 49022C 49022-0047 2
SPIDER 49050 49050-1075 1
VALVE-ASSY 49116 49116-0024 1
YOKE,14T 49117 49117-0040 1
TUBE-ASSY 51044 51044-0053 1
TUBE-ASSY,BREATHER 51044A 51044-0056 1
JOINT-BALL 59266 59266-0037 2
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
NUT,LOCK,FLANGED,6MM 92015A 92015-1339 1
NUT,8MM 92015B 92015-1432 1
RING-SNAP 92033 92033-1030 4
CLAMP,HOSE 92037 92037-1104 1
CLAMP,TUBE 92037A 92037-1461 1
CLAMP,L=45 92037B 92037-1539 1
RIVET,DISC 92039 92039-1258 2
PIN 92043 92043-0121 1
PIN,10X20 92043A 92043-0142 1
PIN,6.2X8X14 92043B 92043-1263 2
BEARING-BALL,6306A6 92045 92045-0068 1
BEARING-BALL,#6009 92045A 92045-1015 1
BEARING-BALL,16007 92045B 92045-1230 1
BEARING-BALL,6910 92045C 92045-1394 1
BEARING-NEEDLE,AJ501907 92046 92046-0025 1
BEARING-NEEDLE,AK1116 92046A 92046-1286 2
SEAL-OIL,SDD7 25X57X7 HS 92049 92049-0029 2
SEAL-OIL,55X77X9 92049A 92049-0090 1
SEAL-OIL,TC14245 92049B 92049-1520 1
SEAL-OIL,KICK PEDAL 92049C 92049-1523 1
SEAL-OIL,TC 12X22X7 92049D 92049-1550 1
RING-O 92055 92055-0122 1
RING-O,169.3X3.1 92055A 92055-0123 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG 92066 92066-0027 1
PLUG,DRAIN,10X12 92066A 92066-0085 1
PLUG 92066B 92066-1303 1
BAND,L=186 92072 92072-056 1
SPRING,RETURN 92145 92145-0445 1
SPRING,DIFF-LOCK LEVER 92145A 92145-0525 1
BOLT,FLANGED,6X16 92150 92150-1394 2
BOLT,10X35 92151 92151-1909 2
BOLT,FLANGED,10X30 92153 92153-1728 8
BOLT,FLANGED-SMALL,6X16 92153A 92153-1729 2
BOLT,8X40 92153B 92153-1730 6
CLAMP 92170 92170-2042 1
SCREW,SET,75X10 92172 92172-0371 1
SHIM,45.3X57X0.8 92180 92180-0259 AR
BOLT-FLANGED,6X14 130 130BA0614 6
BOLT-FLANGED,6X35 130A 130BA0635 1
BOLT-FLANGED-SMALL,6X40 132 132BB0640 2
BOLT-FLANGED-SMALL,6X18 132A 132BD0618 1
BOLT-FLANGED-SMALL,6X35 132B 132BD0635 7
WASHER-PLAIN-SMALL,4MM 410 410AA0400 1
CIRCLIP-TYPE-C,32MM 481 481J3200 1
PIN-SNAP 554 554DA0400 1
BALL-STEEL,11/32" 600 600A1100 6
O RING,10MM 670 670B2010 1
O RING,25MM 671 671B2525 1
SHIM,45.3X57X0.15 92180A 92180-0260 AR
SHIM,45.3X57X0.2 92180B 92180-0261 AR
SHIM,45.3X57X1.2 92180C 92180-0262 AR
SHIM,45.3X57X1.0 92180D 92180-1205 AR
SHIM,45.3X57X0.5 92180E 92180-1207 AR
SHIM,62X71X0.15 92180F 92180-1390 AR
SHIM,62X71X0.20 92180G 92180-1391 AR
SHIM,62X71X0.50 92180H 92180-1392 AR
SHIM,62X71X0.70 92180I 92180-1393 AR
SHIM,62X71X0.80 92180J 92180-1394 AR
SHIM,62X71X0.90 92180K 92180-1395 AR
SHIM,62X71X1.00 92180L 92180-1396 AR
SHIM,62X71X1.10 92180M 92180-1397 AR
SHIM,62X71X1.20 92180N 92180-1398 AR
SHIM,60X72X0.15 92180O 92180-1423 AR
SHIM,60X72X0.20 92180P 92180-1424 AR
SHIM,60X72X0.50 92180Q 92180-1425 AR
SHIM,60X72X0.80 92180R 92180-1426 AR
SHIM,60X72X1.00 92180S 92180-1427 AR
SHIM,60X72X1.20 92180T 92180-1428 AR
TUBE,3X7X350 92192 92192-0622 1
TUBE,3X7X100 92192A 92192-0623 1
TUBE,3X7X480 92192B 92192-0637 1
TUBE,7X12X760 92192C 92192-0716 1
WASHER,11.8X29X1.2 92200 92200-0335 1
WASHER,12X32X2.5 92200A 92200-0336 1
NUT,DISC 92210 92210-1255 2
NUT,30MM 92210A 92210-1294 1
