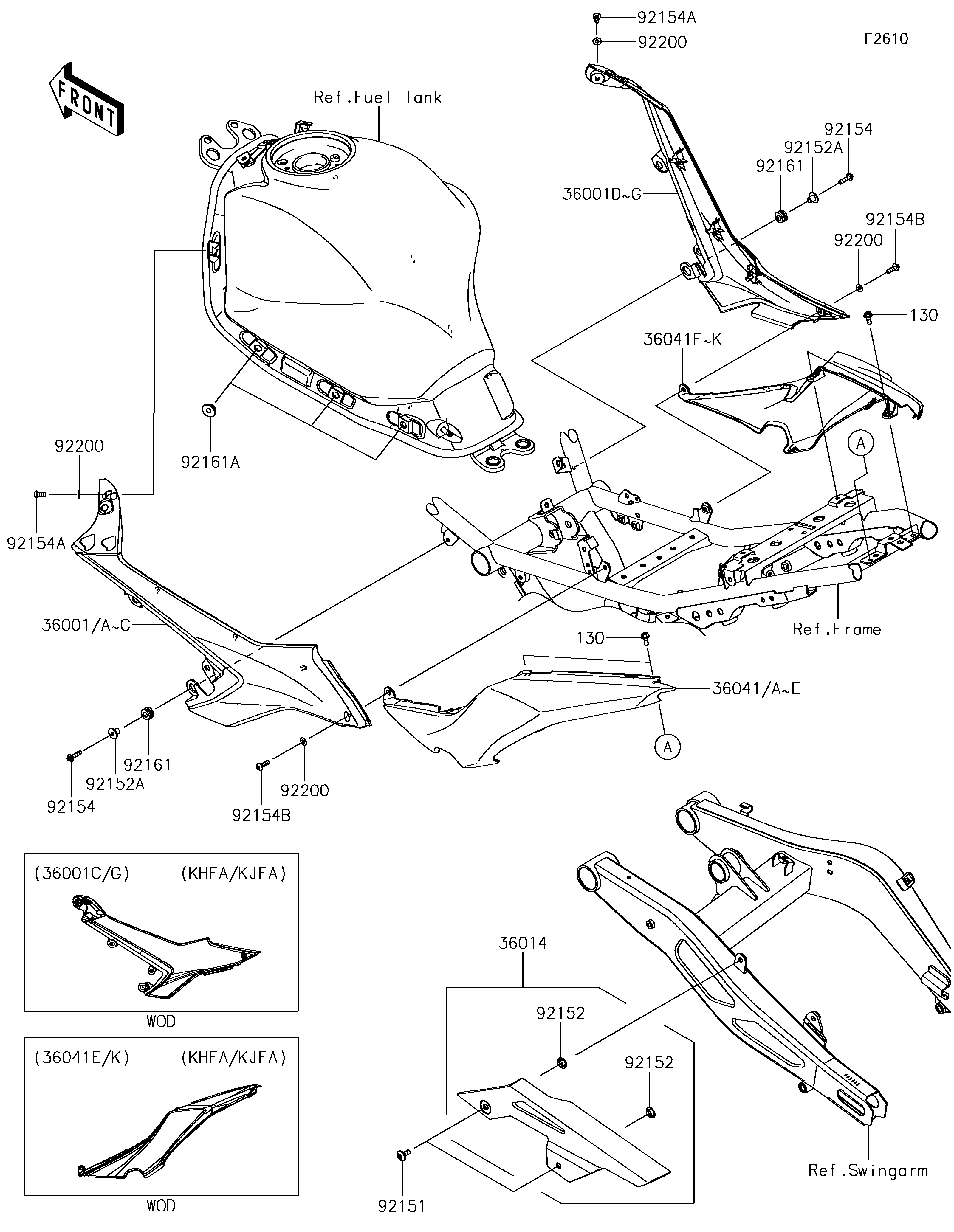

2017 Ninja 650 ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
36001
36001A
36001B
36001D
36001E
36001F
36014
36041
36041B
36041C
36041F
36041H
36041I
92151
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X12 130 130BA0512 4
COVER-SIDE,LH,C.B.ORANGE 36001 36001-0650-17L 1
COVER-SIDE,LH,M.S.BLACK 36001A 36001-0650-660 1
COVER-SIDE,LH,M.F.S.BLACK 36001B 36001-0650-739 1 CA
COVER-SIDE,RH,C.B.ORANGE 36001D 36001-0651-17L 1
COVER-SIDE,RH,M.S.BLACK 36001E 36001-0651-660 1
COVER-SIDE,RH,M.F.S.BLACK 36001F 36001-0651-739 1 CA
CASE-CHAIN 36014 36014-0044 1
COVER-TAIL,LH,C.B.ORANGE 36041 36041-0033-17L 1
COVER-TAIL,LH,P.B.WHITE 36041B 36041-0033-54X 1 CA
COVER-TAIL,LH,M.S.BLACK 36041C 36041-0033-660 1
COVER-TAIL,RH,C.B.ORANGE 36041F 36041-0034-17L 1
COVER-TAIL,RH,P.B.WHITE 36041H 36041-0034-54X 1 CA
COVER-TAIL,RH,M.S.BLACK 36041I 36041-0034-660 1
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,8.8X11.2X4 92152 92152-0909 2
COLLAR 92152A 92152-1592 2
BOLT,SOCKET,5X20 92154 92154-0210 2
BOLT,SOCKET,5X12 92154A 92154-1421 2
BOLT,SOCKET,5X16 92154B 92154-1701 2
DAMPER,8X16X8.6 92161 92161-0685 2
DAMPER,6X20X7.5 92161A 92161-1937 6
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
