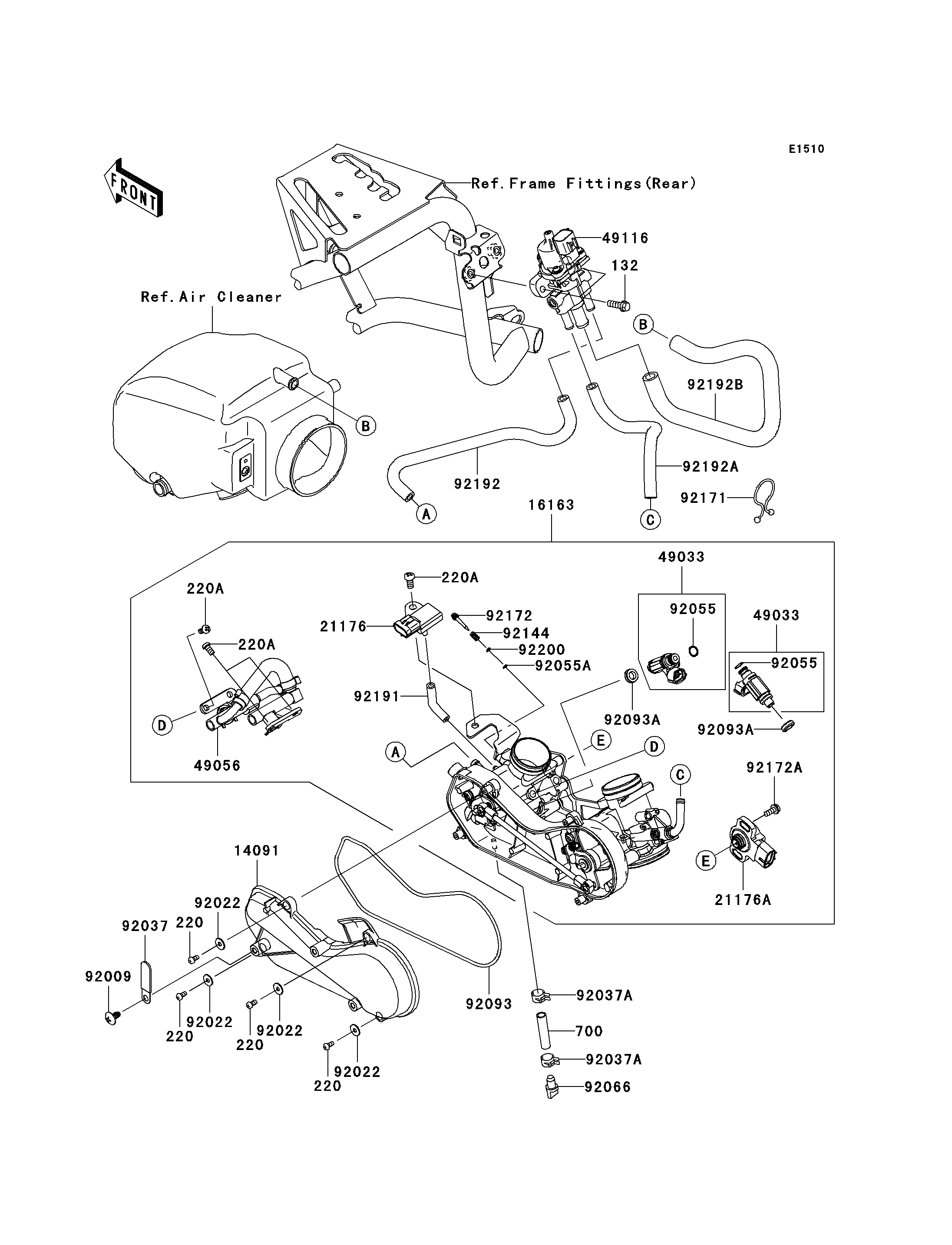

2010 Teryx 750 FI 4X4 (SGE) - Throttle

DOWNLOAD PDF
SELECT A NEW PART
132
220
220
220
220
220A
220A
220A
700
14091
16163
21176
21176A
49033
49033
49056
49116
92009
92022
92022
92022
92022
92037
92037A
92037A
92055
92055
92055A
92066
92093
92093A
92093A
92144
92171
92172
92172A
92191
92192
92192A
92192B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X18 132 132BD0618 2
SCREW-PAN-CROS,4X8 220 220AA0408 4
SCREW-PAN-CROSS,6X12 220A 220AA0612 5
TUBE-PVC 700 700Q0740 1
COVER,THROTTLE LINK 14091 14091-1731 1
THROTTLE-ASSY,34EIS 16163 16163-0137 1
SENSOR,PRESSURE 21176 21176-0058 1
SENSOR,TPS 21176A 21176-0100 1
NOZZLE-INJECTION 49033 49033-1060 2
PIPE-INJECTION 49056 49056-0028 1
VALVE-ASSY,ISC 49116 49116-0026 1
SCREW,6X12 92009 92009-1480 1
WASHER,5.2X13X1 92022 92022-1380 4
CLAMP,L=45 92037 92037-1539 1
CLAMP 92037A 92037-2113 2
RING-O,INJECTION NOZZLE 92055 92055-1622 2
RING-O,AIR SCREW 92055A 92055-1658 2
PLUG,DRAIN 92066 92066-1211 1
SEAL 92093 92093-0082 1
SEAL 92093A 92093-0127 2
SPRING,THROTTLE STOP SCREW 92144 92144-1674 2
CLAMP 92171 92171-0876 1
SCREW 92172 92172-0156 2
SCREW 92172A 92172-0254 2
TUBE,3.2X7.4X70 92191 92191-1552 1
TUBE,ISC-FR THROBO 92192 92192-0765 1
TUBE,ISC-RR THROBO 92192A 92192-0766 1
TUBE,ISC-DUCT 92192B 92192-0767 1
WASHER,PILOT AIR SCREW 92200 92200-1564 2
