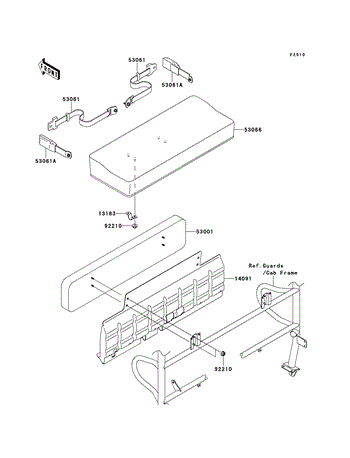

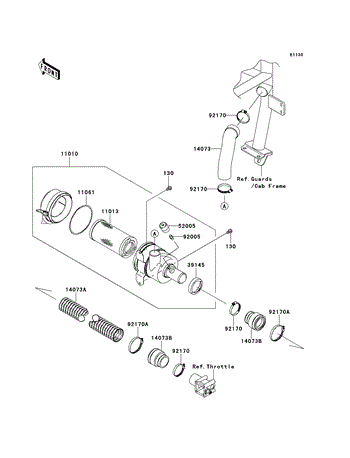

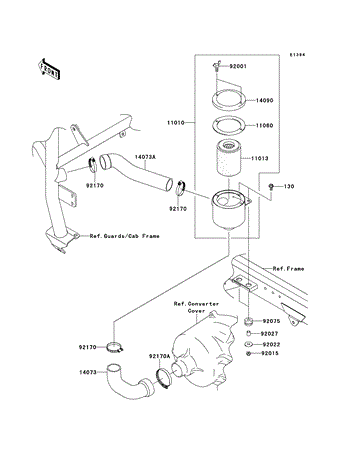

Air Cleaner-Belt Converter(M9F/MAF)

Brake Pedal/Throttle Lever

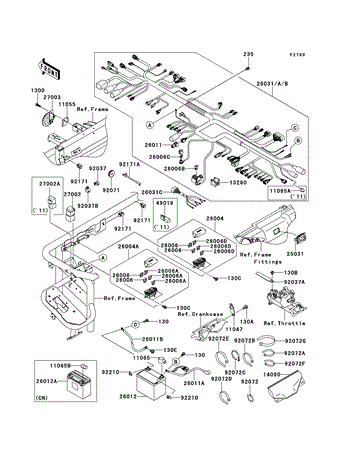

Chassis Electrical Equipment(M9F-MBF)

Drive Shaft-Propeller

Driven Converter/Drive Belt

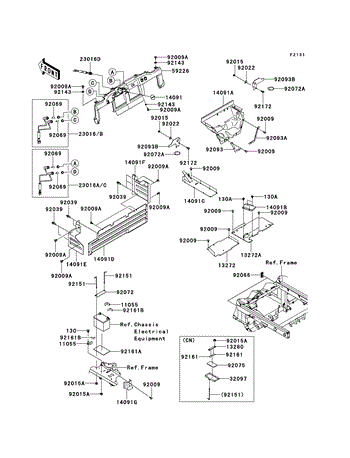

Frame Fittings(M9F-MBF)

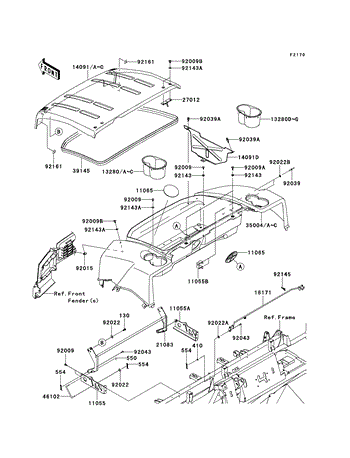

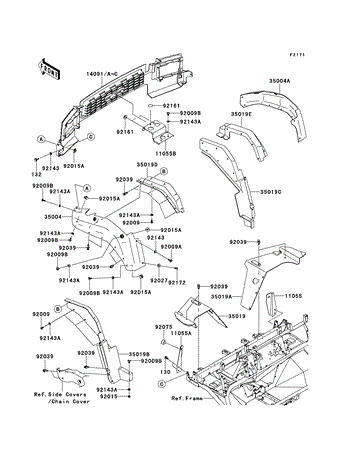

Front Fender(s)(M9F-MBF)

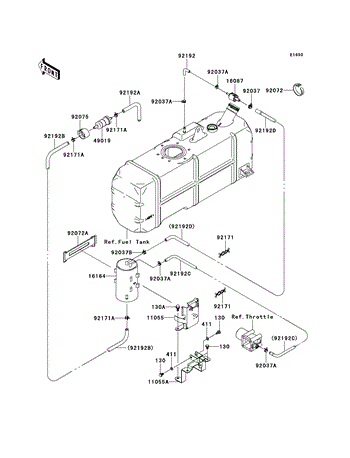

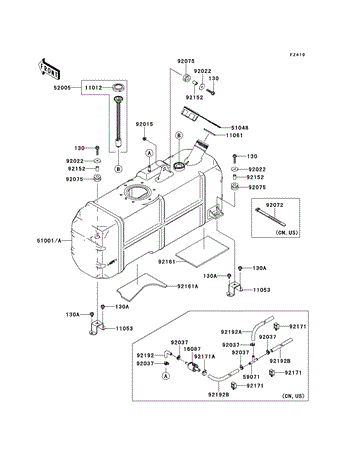

Fuel Evaporative System(M9F/MAF)

Gear Change Mechanism

Generator/Ignition Coil

Ignition Switch(M9F-MCF)

Side Covers/Chain Cover

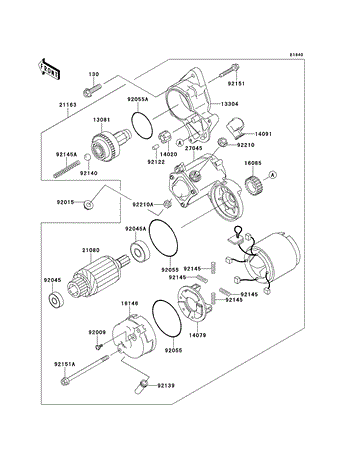

Starter Motor(-FD620DE485832)

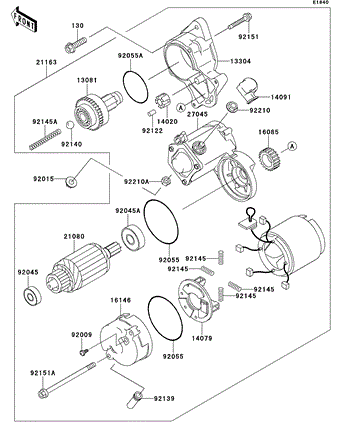

Starter Motor(FD620DE485833-)

Steering Wheel(M9F-MCF)

FIND PARTS DIAGRAMS

Select a category and model to find the parts diagram you are looking for.
